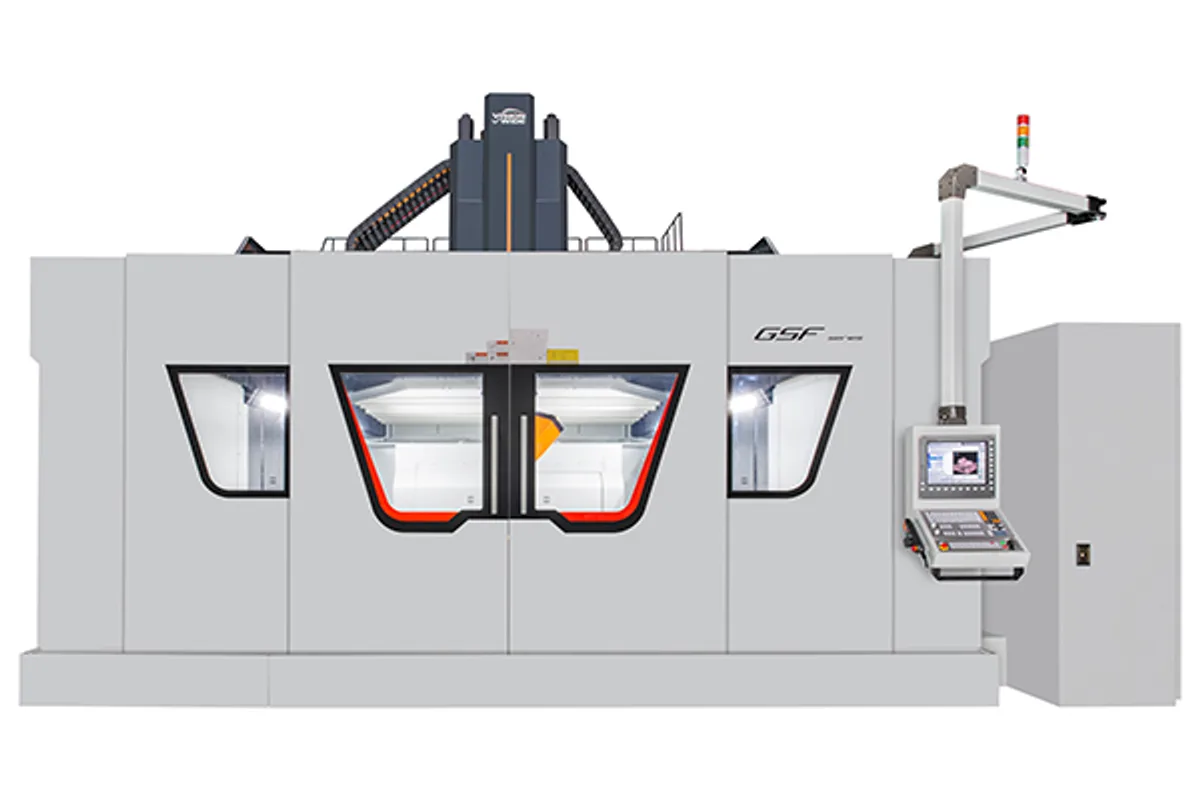

Vision Wide GSF-2227
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-2227 cost?
Price estimate
We do not have a price for the Vision Wide GSF-2227 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Rotary-axis quality decides what a five-axis head can finish, and the Vision Wide GSF-2227 states its figures. The B and C axes are driven without backlash, with a rotation positioning accuracy of ±5 arc-seconds, and the dynamic five-axis accuracy (TCPM) is given as 0.04mm.
Why does backlash matter so much here? In simultaneous cutting the rotary axes reverse direction constantly as the tool follows a surface. Any lost motion at a reversal moves the tool tip, and at the end of a long tool even a small angle is a visible mark. A direct-driven axis has no gear train to wind up, which is how the maker can claim backlashless driving.
The head's condition is watched as standard. A 2-axis head central monitoring protection system covers spindle and motor temperature, B/C-axis motor temperature and spindle cutting load, and the head's rotation errors are corrected through its mechanism chain.
The machine has 2,200 mm (86.6 in) of X travel and 2,700 mm (106.3 in) of Y over a 2,200 x 2,700 mm (86.6 x 106.3 in) fixed table. Spindle power is 50/65 kW (67.1/87.2 hp) at 15,000 rpm, and the cutting feed range is 1-20,000 mm/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,200 mm (86.6 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 2,200 x 2,700 mm (86.6 x 106.3 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Backlashless B/C drive with ±5 arc-second rotation positioning accuracy
- Stated TCPM accuracy of 0.04mm
- 2-axis head monitoring protection system is standard
- 2,200 x 2,700 mm (86.6 x 106.3 in) fixed table at 3,000 kg/m2
Limitations
- No repeatability figure is given for the rotary axes
- Automatic correction software of rotary axis error is optional
- Swivel ranges of B and C are not published on the page
Best For
Frequently Asked Questions
01
Vision Wide states backlashless driving on the B/C axis with a rotation positioning accuracy of ±5 arc-seconds, and a 5 axis dynamic rotation synchronization accuracy (TCPM) of 0.04mm.
02
The standard 2-axis head central monitoring protection system includes spindle and motor temperature monitoring, B/C-axis motor temperature monitoring and spindle cutting load software protection.
03
2,200 mm (86.6 in) in X, 2,700 mm (106.3 in) in Y and 1,000/1,200 mm (39.4/47.2 in) in Z. The table is 2,200 x 2,700 mm (86.6 x 106.3 in).
04
Rapid traverse is 32 m/min in X and Y and 20 m/min in Z. Cutting feed is 1-20,000 mm/min and spindle speed is 15,000 rpm.
