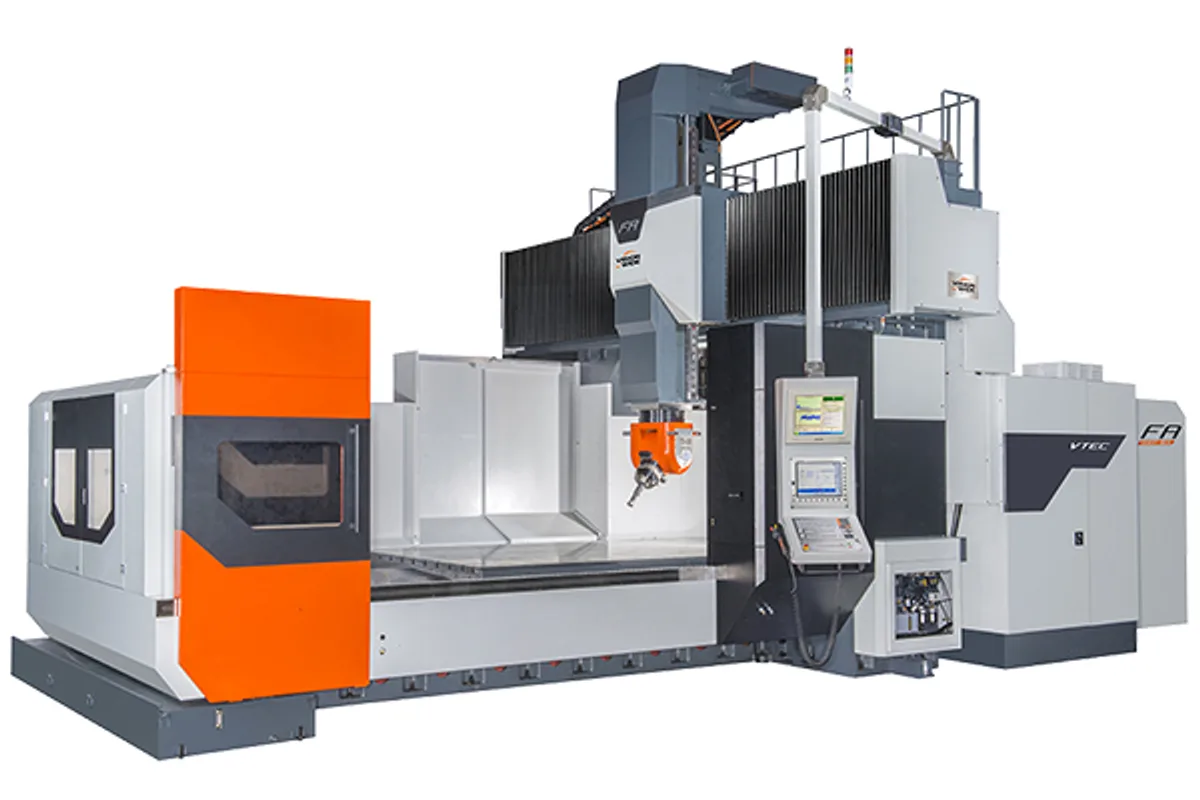

Vision Wide FA-5033
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-5033 cost?
Price estimate
We do not have a price for the Vision Wide FA-5033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Heat is the enemy of a five-metre five-axis machine, and the Vision Wide FA-5033 is sold with figures on the subject. Vision Wide says the FA is not affected by spindle thermal variation and environment temperature change, with thermal elongation less than 0.02mm, and that spindle vibration stays lower than 1 mm/sec.
Consider what those claims are set against. X travel is 5,100 mm (200.8 in) and Y is 3,300 mm (129.9 in). The published positioning accuracy is ±0.010 mm (±0.0004 in) over full travel. A tool that grew by even a few hundredths of a millimetre during a shift would use up that tolerance by itself, so limiting thermal elongation is what makes the accuracy figure usable in practice. Linear scales on X, Y and Z, standard on the FA, take ballscrew growth out of the result as well.
The table is 5,000×2,450 mm (196.9×96.5 in) and takes 20,000 kg (44,092 lb). The spindle is the 12,000 rpm HSK-A100 type with 34 / 43 kW (45.6 / 57.7 hp).
Speed falls with length. X rapid is 12.5 m/min, Y and Z 15 m/min. Vision Wide describes the series, released in 2014, as its first bridge type 5-axis double column machining center.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,100 mm (200.8 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,700 mm (106.3 in) |
| Table Size | 5,000×2,450 mm (196.9×96.5 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 12.5 / 15 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.010 mm (±0.0004 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Thermal elongation stated as less than 0.02mm
- Linear scale feedback on X, Y and Z as standard
- 5,000×2,450 mm (196.9×96.5 in) table for 20,000 kg (44,092 lb)
- Spindle vibration stated as lower than 1 mm/sec
Limitations
- X rapid of 12.5 m/min, half that of the FA-3033
- No test conditions are given for the thermal and vibration figures
- Cutting feed of 1-10,000 mm/min
Best For
Frequently Asked Questions
01
Vision Wide states thermal elongation of less than 0.02mm and says the FA is not affected by spindle thermal variation and environment temperature change. XYZ axis linear scale feedback and a spindle cooling device are standard.
02
5,100 mm (200.8 in) in X, 3,300 mm (129.9 in) in Y and 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) in Z. Port width is 2,700 mm (106.3 in).
03
±0.005/300 and ±0.010 mm (±0.0004 in)/Full travel, with repeatability of ±0.002 mm (±0.00008 in), referred to JIS B6333. The TCPM figure for five-axis motion is 0.04mm.
