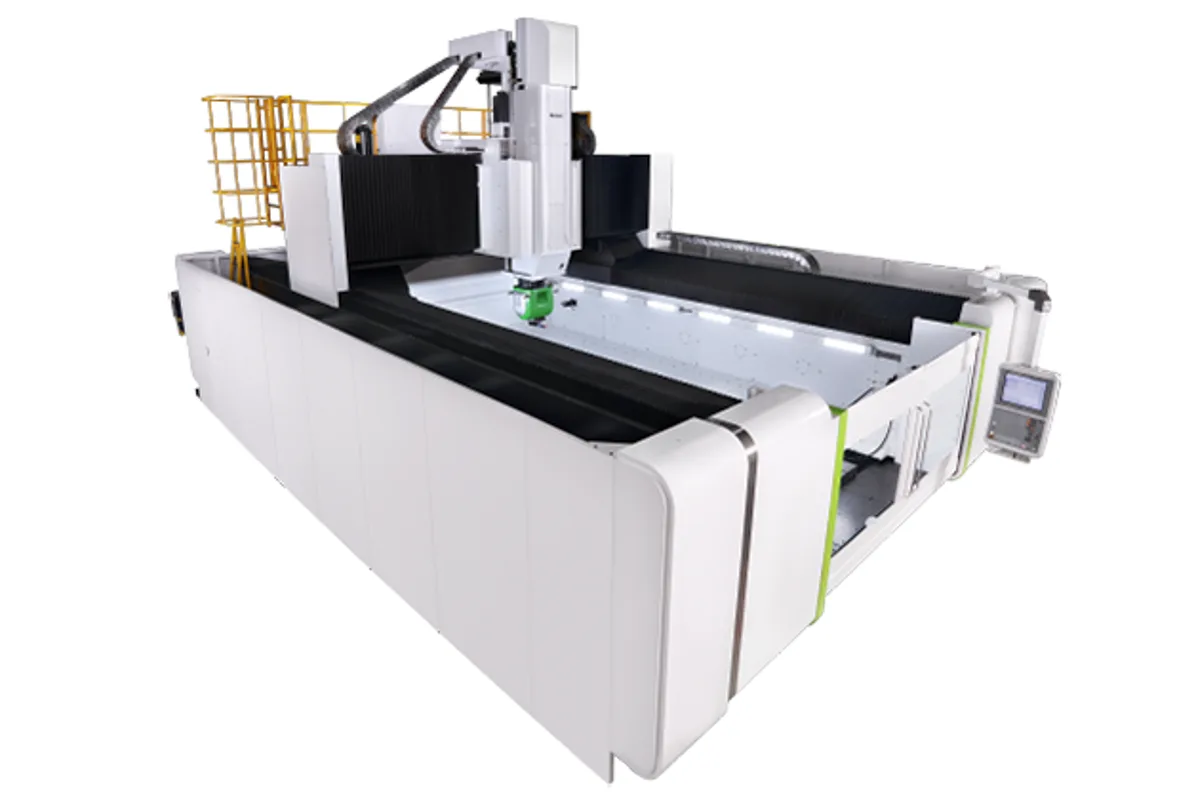

Hartford Aero-546B
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-546B cost?
Price estimate
We do not have a price for the Hartford Aero-546B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford Aero-546B is the widest five-metre model of the Aero gantry type 5-faced machining centers. Its table measures 5,000 x 4,100 mm (196.9 x 161.4 in), Y travel is 4,600 mm (181.1 in) and X travel 5,000 mm (196.9 in).
Few machining centers of this length are over four metres wide at the table. The format suits near-square parts: press platens, large mould halves, ring gears and turbine casings, satellite and antenna structures. Since the table is rated at 5,000 kg/m², a part of that size may also be very heavy.
Hartford has a moving-table machine with similar Y travel, the HSA-546AAC, which has 4,600 mm (181.1 in) of Y over a 5,000 x 3,000 mm (196.9 x 118.1 in) table rated for 21,000 kg (46,296 lb) in total. The Aero-546B offers the wider table and the per-area rating.
Spindle and tooling are common to the five-faced Aero models: #50 taper, BT-50 shanks, a gear head at 6,000 rpm with 8,000 rpm optional, and an optional hybrid spindle at 10,000 rpm. Z travel is 1,000 mm, or 1,200 mm. Hartford notes automatic parameter tuning to maintain accuracy, under the heading AI intelligent technology.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 5,000 x 4,100 mm (196.9 x 161.4 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 4,600 mm (181.1 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,000 x 4,100 mm (196.9 x 161.4 in) table, the widest at five metres
- 4,600 mm (181.1 in) of Y travel
- 5,000 kg/m² table rating for large heavy parts
- Automatic parameter tuning to maintain accuracy, per Hartford
Limitations
- Z travel of 1,000 mm is small beside the X and Y travels
- The widest gantry of the five-metre group, for work that must need the width
- Standard spindle is a 6,000 rpm gear head
Best For
Frequently Asked Questions
01
The table is 5,000 x 4,100 mm (196.9 x 161.4 in). Travels are 5,000 mm (196.9 in) in X, 4,600 mm (181.1 in) in Y and 1,000 mm in Z, with 1,200 mm of Z as an option.
02
The HSA-546AAC is a moving-table double-column machine with a 5,000 x 3,000 mm (196.9 x 118.1 in) table rated for 21,000 kg (46,296 lb). The Aero-546B is a gantry type with a table 4,100 mm wide rated at 5,000 kg/m². Y travel is 4,600 mm on both.
03
6,000 rpm with the standard #50 gear head and 8,000 rpm with the optional one. Hartford's i-Tech hybrid spindle, also optional, runs at 10,000 rpm.
04
Yes. The Aero-646B has a 6,000 x 4,100 mm (236.2 x 161.4 in) table, and the Aero-846G and Aero-1046G extend the same width to 8,000 mm (315.0 in) and 10,000 mm (393.7 in) of X travel.
