Vision Wide GSF-1627

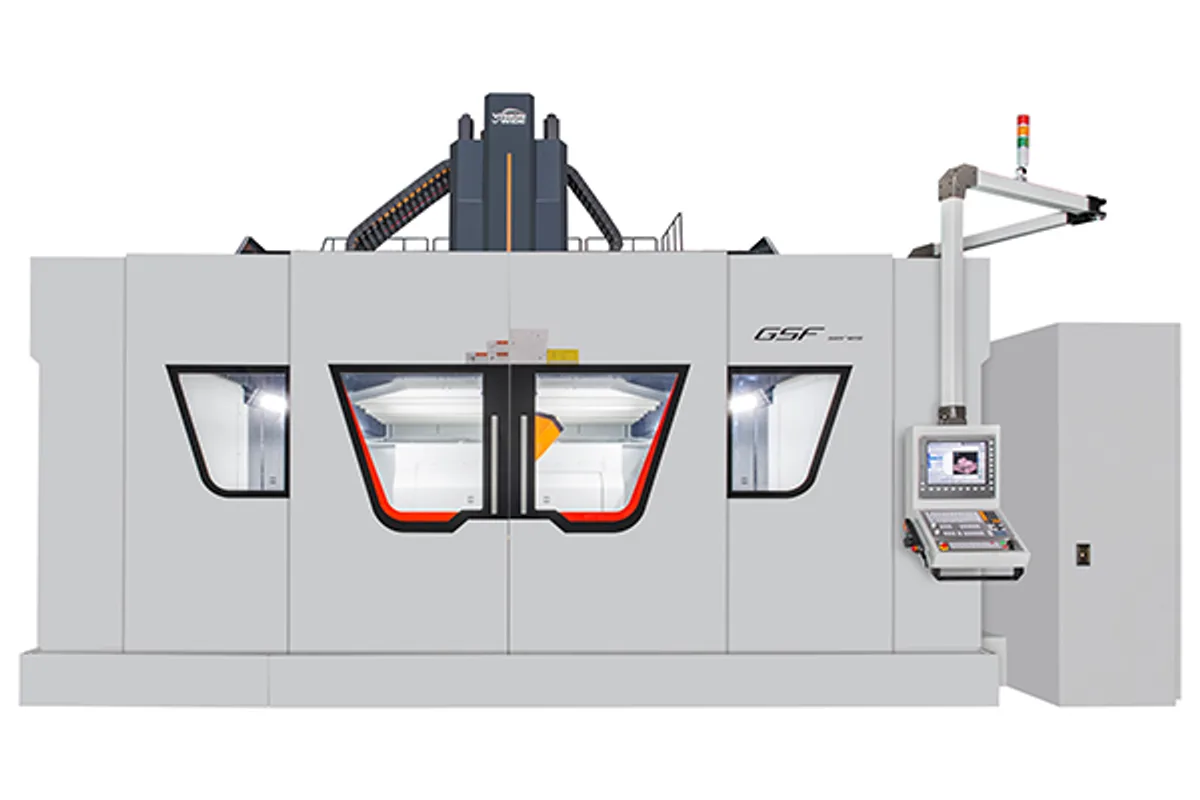

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-1627 cost?
Price estimate
We do not have a price for the Vision Wide GSF-1627 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSF-1627 is a five-axis gantry machining center with a two-axis head. The table is fixed; the gantry carries a head whose B and C axes tilt and swivel a built-in spindle while X, Y and Z move, so all five axes can cut at once.
It is the smallest of the series, with 1,600 mm (63.0 in) of X travel, 2,700 mm (106.3 in) of Y and a 1,600 x 2,700 mm (63.0 x 106.3 in) table. Z travel is listed as 1,000/1,200 mm (39.4/47.2 in).
Vision Wide states a 5 axis dynamic rotation synchronization accuracy (TCPM) of 0.04mm. That figure describes how well the tool tip stays on its programmed point while the rotary axes move, which is what matters when a ball mill sweeps a curved surface with its axis changing all the way. The B and C axes are direct-driven and described as backlashless.
The spindle is a 15,000 rpm built-in unit rated 50/65 kW (67.1/87.2 hp), S1 and S6, with an HSK-A100 interface in standard form. Linear axes are quick: 32 m/min in X and Y, 20 m/min in Z, and a cutting feed range of 1-20,000 mm/min. Table load is 3,000 kg/m2. The control is a HEIDENHAIN TNC640.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 1,600 x 2,700 mm (63.0 x 106.3 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Simultaneous five-axis head with direct-driven B and C axes
- Stated TCPM accuracy of 0.04mm
- 50/65 kW (67.1/87.2 hp) built-in spindle at 15,000 rpm
- 32 m/min rapids in X and Y
- Fixed table rated 3,000 kg/m2
Limitations
- X travel of 1,600 mm (63.0 in) is the shortest in the GSF series
- Vertical type tool magazine 20T as standard
- The page gives no B or C axis swivel range
Best For
Frequently Asked Questions
01
Yes. The head has direct-driven B and C axes with a built-in spindle, and Vision Wide states a 5 axis dynamic rotation synchronization accuracy (TCPM) of 0.04mm. The GSA-1627, with the same travels, is the indexing 3+2 axis version.
02
X travel is 1,600 mm (63.0 in), Y travel 2,700 mm (106.3 in) and Z travel 1,000/1,200 mm (39.4/47.2 in). The table measures 1,600 x 2,700 mm (63.0 x 106.3 in).
03
The standard head is listed as HST810x15,000 rpm/HSK-A100. Spindle power is 50/65 kW (67.1/87.2 hp) on the S1/S6 ratings, and spindle speed is 15,000 rpm.
04
3,000 kg/m2, a load per square metre of the fixed table. The maker gives no total; the table is 1,600 x 2,700 mm (63.0 x 106.3 in).
