Vision Wide ADM-2638

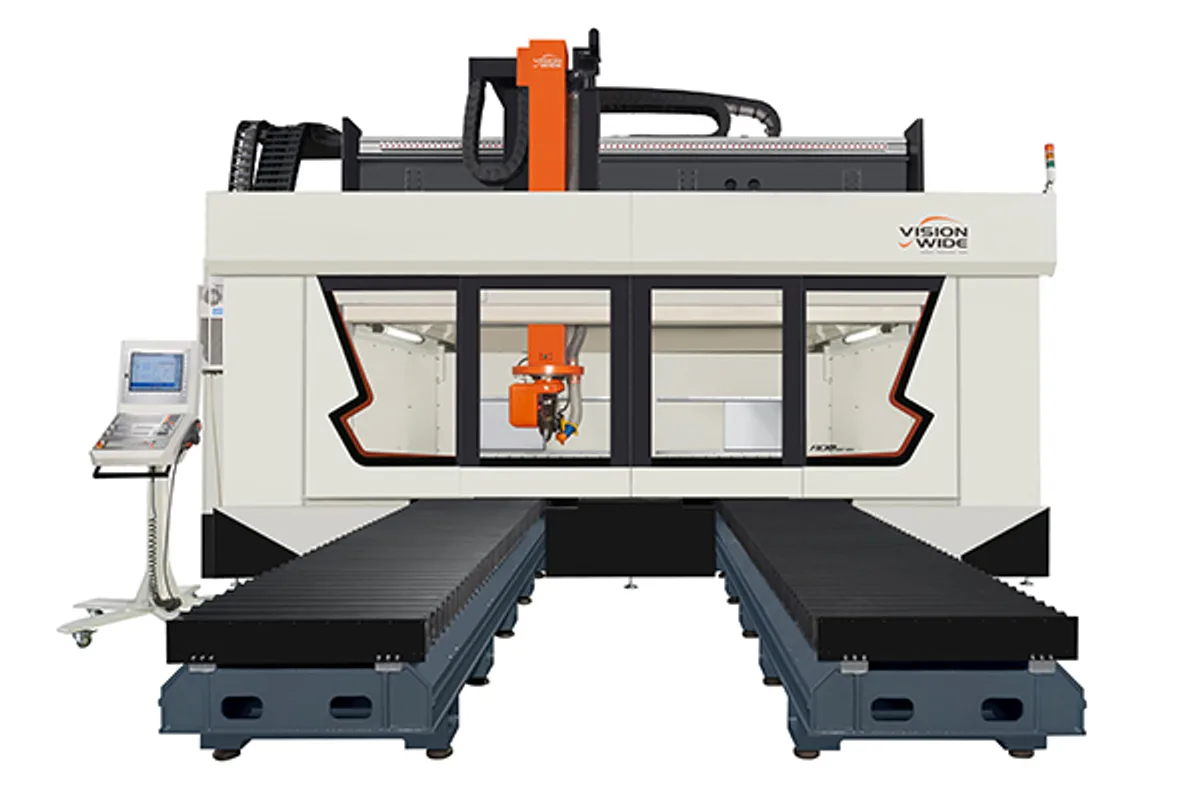

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide ADM-2638 cost?
Price estimate
We do not have a price for the Vision Wide ADM-2638 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide ADM-2638 is a 5-axis machining center for composite materials, built around a 24,000 rpm spindle and two tables of 2,500 x 1,500 mm (98.4 x 59.1 in) each. Travels are 2,600 mm (102.4 in) in X, 3,800 mm (149.6 in) in Y and 1,000 mm (39.4 in) in Z.
Vision Wide aims the machine at Carbon Fiber Reinforced Polymer (CFRP), fiberglass, plastic and aluminum. Those materials call for high surface speed and little torque, and the spindle reflects that: 15 / 18 kW (20.1 / 24.1 hp) on the S1/S6 ratings, with a 24,000rpm HSK-A63 spindle named in the standard accessory list. The axes are quick as well, at 40,000 mm/min rapid on X and Y, 20,000 mm/min on Z and a cutting feed of 20,000 mm/min.
Dust is the practical problem in trimming composites, and it is where this machine differs most from a metal-cutting 5-axis. The table lists a ground suction device with a flow rate of 400 m3/min and a spindle suction device at 15 m3/min, and the feature list adds an enclosed splash guard with roof. Plan the extraction ducting and filtration with the installation.
The twin tables are listed as one row, 2 pcs, next to a 3,000 kg (6,614 lb) maximum table load; the page does not say whether that figure is per table. Tooling is modest at 16 pcs in the table, which the accessory list describes as double magazines with 16 tools per magazine, with 24 and 32 tools per magazine optional. The standard control is given as HEIDENHAIN iTNC640.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 3,800 mm (149.6 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 2,500 x 1,500 mm (98.4 x 59.1 in) x 2 pcs |
| Max Table Load | 3,000 kg (6,614 lb) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power S1 S6 | 15 / 18 kW (20.1 / 24.1 hp) |
| Cutting Feed Rate | 20,000 mm/min |
| Rapid Traverse Xyz | X,Y: 40,000 mm/min Z: 20,000 mm/min |
| Tool Capacity | 16 pcs |
| Flow Rate Ground Suction Device | 400 m3/min |
| Flow Rate Spindle Suction Device | 15 m3/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 24,000 rpm HSK-A63 spindle rated 15 / 18 kW (20.1 / 24.1 hp) S1/S6
- Two tables of 2,500 x 1,500 mm (98.4 x 59.1 in) under 3,800 mm (149.6 in) of Y travel
- Rapids of 40,000 mm/min on X and Y and a 20,000 mm/min cutting feed
- Ground suction device rated 400 m3/min plus a 15 m3/min spindle suction device
- Double tool magazines, 16 tools per magazine as standard
- X axis linear scale feedback is standard
Limitations
- Spindle power of 15 / 18 kW (20.1 / 24.1 hp) suits composites and aluminum, not heavy cuts in steel
- Linear scale feedback on Y and Z is optional; the standard machine uses absolute pulse coder feedback there
- The 3,000 kg (6,614 lb) table load is not broken down per table
- The laser positioning sensor is marked Opt.
Best For
Frequently Asked Questions
01
Vision Wide describes the ADM as a 5-axis machining center to process composite materials and names Carbon Fiber Reinforced Polymer (CFRP), fiberglass, plastic and aluminum as the materials it is aimed at.
02
X travel is 2,600 mm (102.4 in), Y is 3,800 mm (149.6 in) and Z is 1,000 mm (39.4 in). The table row reads 2,500 x 1,500 mm (98.4 x 59.1 in) x 2 pcs, that is, two tables, with a maximum table load of 3,000 kg (6,614 lb).
03
The specification lists a ground suction device with a flow rate of 400 m3/min and a spindle suction device with 15 m3/min. The feature list also names an enclosed splash guard with roof and a spindle and ground suction device.
04
A 24,000rpm HSK-A63 spindle is standard, rated 15 / 18 kW (20.1 / 24.1 hp) on S1/S6. The ATC row gives 16 pcs; the accessory list specifies double magazines with 16 tools per magazine, and 24 or 32 tools per magazine as options.
05
The standard accessory list names a HEIDENHAIN iTNC640 controller. A HEIDENHAIN TNC640 controller and a SIEMENS 840D controller are on the optional list, so the choice should be fixed when ordering.
