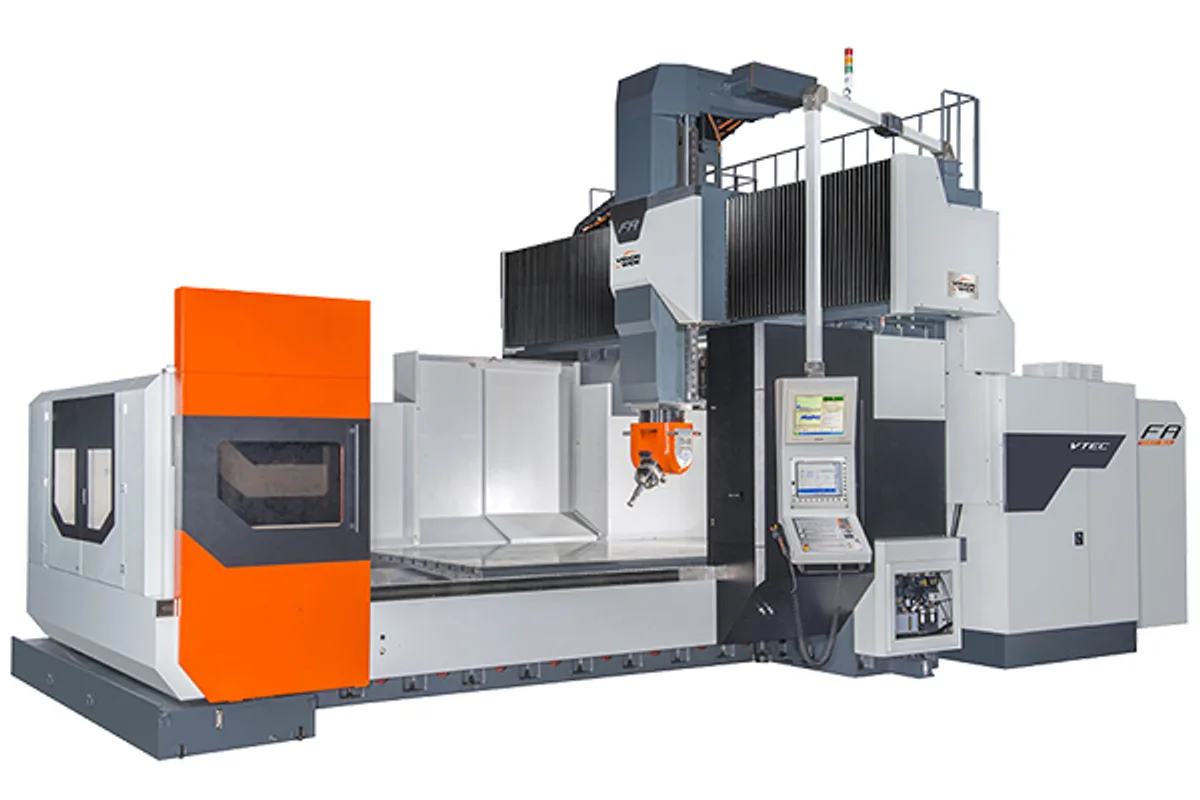

Vision Wide FA-4027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-4027 cost?
Price estimate
We do not have a price for the Vision Wide FA-4027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide FA-4027 is a four-metre bridge-type five-axis machining center: 4,100 mm (161.4 in) of X travel, 2,700 mm (106.3 in) of Y, and a 4,000×1,800 mm (157.5×70.9 in) table for 12,000 kg (26,455 lb).
Port width is the figure that decides whether a part goes in. On a double-column machine the table passes between two fixed columns, and nothing wider than that gap can travel through. Here it is 2,200 mm (86.6 in), comfortably wider than the 1,800 mm table, so fixtures and clamps can overhang the table edges a little. Y travel of 2,700 mm then lets the head reach past the part on each side, which a tilting head needs.
Both horizontal axes rapid at 18 m/min, and Z at 15 m/min; the FA-3027 is quicker in X at 24 m/min. Cutting feed is 1-10,000 mm/min.
The spindle is the torque version, 162 / 205 Nm (119 / 151 lb-ft) and 34 / 43 kW (45.6 / 57.7 hp) at 12,000 rpm on HSK-A100. A HEIDENHAIN TNC640 controls it. Z travel is 1,000 mm, or 1,200 mm as an option, and the standard floor-standing changer holds 24 tools.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,200 mm (86.6 in) |
| Table Size | 4,000×1,800 mm (157.5×70.9 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 18 / 18 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.008 mm (±0.00031 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Port width of 2,200 mm (86.6 in) over a 1,800 mm (70.9 in) wide table
- 4,100 mm (161.4 in) of X travel with a five-axis head
- 162 / 205 Nm (119 / 151 lb-ft) and 34 / 43 kW (45.6 / 57.7 hp)
- 12,000 kg (26,455 lb) table load
Limitations
- Rapids of 18 / 18 / 15 m/min
- Cutting feed of 1-10,000 mm/min
- 24 tools as standard; 32 and 40 are options
Best For
Frequently Asked Questions
01
2,200 mm (86.6 in). That is the opening between the columns through which the table and part pass. The table itself is 4,000×1,800 mm (157.5×70.9 in).
02
18 / 18 / 15 m/min for X, Y and Z. The shorter FA-3027 lists 24 / 18 / 15 m/min. Cutting feed is 1-10,000 mm/min on both.
03
12,000 kg (26,455 lb) on a 4,000×1,800 mm (157.5×70.9 in) table. X travel is 4,100 mm (161.4 in), slightly longer than the table.
04
The option list has a 20,000rpm HSK-A63 spindle for the FA-xx27 and FA-xx33 series. The standard spindle is 12,000rpm with tool shank HSK-A100.
