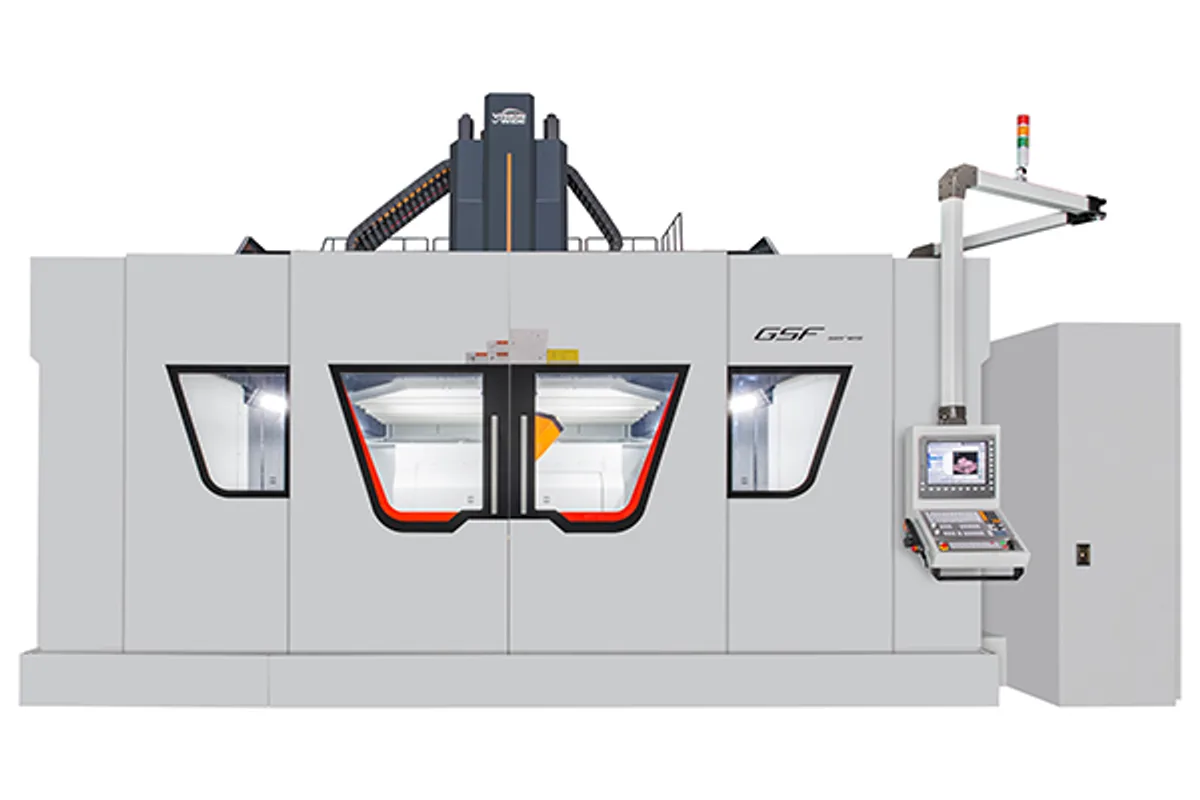

Vision Wide GSF-6032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-6032 cost?
Price estimate
We do not have a price for the Vision Wide GSF-6032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSF-6032 is the largest five-axis gantry in the GSF series, with 6,000 mm (236.2 in) of X travel, 3,200 mm (126.0 in) of Y and a 6,000 x 3,200 mm (236.2 x 126.0 in) fixed table.
At this size the specification table answers the first questions and leaves the rest for the quotation. It gives the travels, a Z of 1,000/1,200 mm (39.4/47.2 in), the table and its 3,000 kg/m2 rating, 50/65 kW (67.1/87.2 hp) at 15,000 rpm, the feeds, and a tool capacity of 20/32/40/60 pcs. It does not give machine weight, floor area, the rotary axis ranges or the clearance under the gantry.
For a part family that fits, the performance figures hold up well against the smaller models because nothing is derated with length. Rapid traverse is still 32 m/min in X and Y and 20 m/min in Z, and cutting feed still runs 1-20,000 mm/min. The same is true of the stated accuracies: TCPM 0.04mm and ±5 arc-seconds of rotation positioning on B and C.
The GSA-6032 offers the same envelope with an indexing head, for work that is angled but not contoured.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 6,000 x 3,200 mm (236.2 x 126.0 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest GSF envelope: 6,000 mm (236.2 in) by 3,200 mm (126.0 in)
- Rapids of 32 m/min in X and Y are not derated at this length
- TCPM 0.04mm and ±5 arc-second rotary positioning stated for the series
- 6,000 x 3,200 mm (236.2 x 126.0 in) fixed table at 3,000 kg/m2
Limitations
- Machine weight, floor area and gantry clearance are not published
- Rotary axis ranges are not on the page
- Z travel of 1,000/1,200 mm (39.4/47.2 in) for a six-metre machine
Best For
Frequently Asked Questions
01
The GSF-6032: 6,000 mm (236.2 in) of X travel, 3,200 mm (126.0 in) of Y, 1,000/1,200 mm (39.4/47.2 in) of Z and a 6,000 x 3,200 mm (236.2 x 126.0 in) table.
02
Not on the published figures. Rapid traverse is 32 m/min in X and Y and 20 m/min in Z, and cutting feed is 1-20,000 mm/min, the same as on the GSF-1627.
03
The rating is 3,000 kg/m2 on a fixed table of 6,000 x 3,200 mm (236.2 x 126.0 in). The maker states it per square metre, not as a total.
04
They share 6,000 mm (236.2 in) of X and 3,200 mm (126.0 in) of Y. The GSF-6032 cuts with five axes moving together. The GSA-6032 has an indexing head for 3+2 axis machining.
