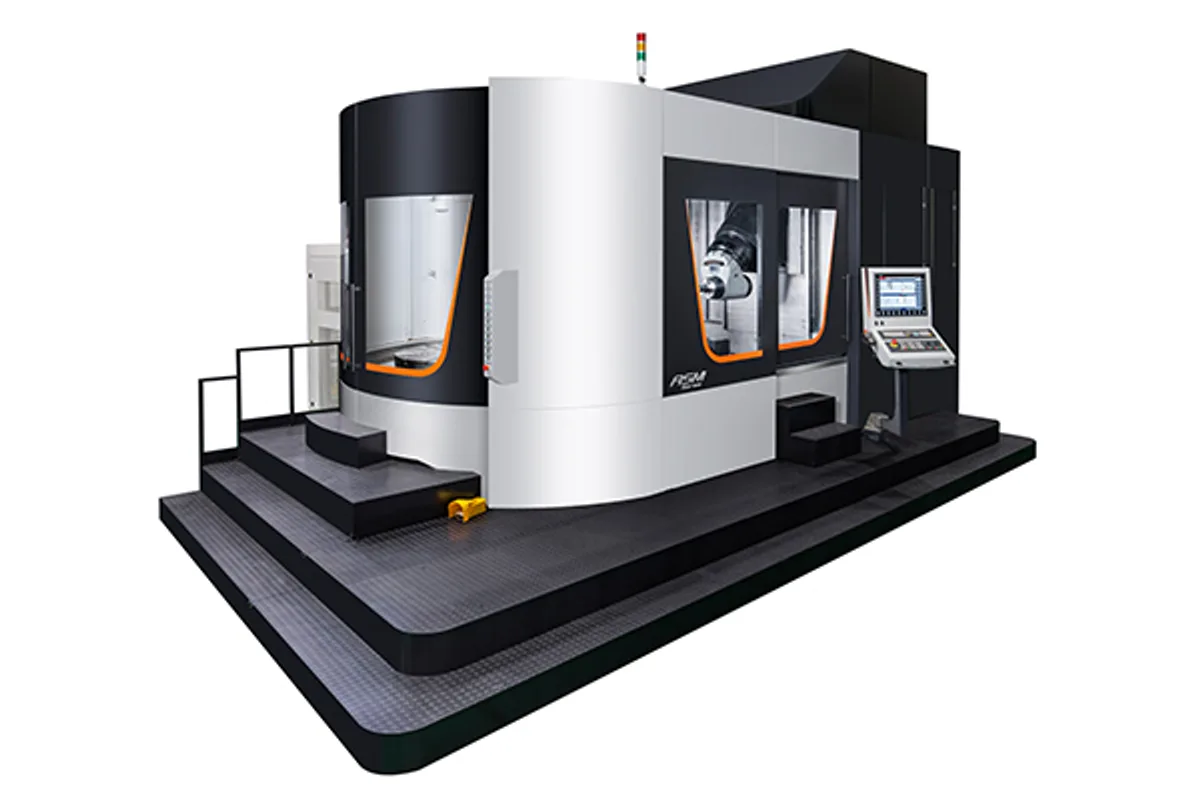

Vision Wide ASM-1612G
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
table diameter
max table load central area
How much does the Vision Wide ASM-1612G cost?
Price estimate
We do not have a price for the Vision Wide ASM-1612G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The G version trades speed for a slower, heavier spindle. The Vision Wide ASM-1612G lists a spindle speed of 7,000 rpm and a Z rapid of 24 m/min, where the ASM-1612 lists 10,000 rpm and 40 m/min on all three axes.
Vision Wide's page does not say what the G stands for. The option list does include a head named CG30X-01-07 / 7,000 rpm / HSK-A100, and its speed matches this model's table figure. The standard ASM head is the CM21X-01-10 at 10,000 rpm. A lower top speed on the same HSK-A100 interface normally means a drive geared for torque, and a slower Z rapid is consistent with a heavier head on the ram. No power or torque figures are printed for either, so the gain cannot be put in numbers from the page.
The rest of the machine is the ASM-1612. The table is Ø1,500 mm (Ø59.1 in) with 3,000 kg (6,614 lb) in the central area. Travels are 1,620 mm (63.8 in), 1,260 mm (49.6 in) and 1,050 mm (41.3 in) in X, Y and Z. X and Y rapid at 40 m/min, and cutting feed is 24 / 24 / 24 m/min.
This is the ASM for titanium and steel parts: structural aerospace components, turbine casings, heavy tire mold work.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,620 mm (63.8 in) |
| Y Axis Travel | 1,260 mm (49.6 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Table Diameter | Ø1,500 mm (Ø59.1 in) |
| Max Table Load Central Area | 3,000 kg (6,614 lb) |
| Max Spindle Speed | 7,000 rpm |
| Cutting Feed Rate | 24 / 24 / 24 m/min |
| Rapid Traverse Xyz | 40 / 40 / 24 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 7,000 rpm spindle on HSK-A100 for heavier cutting than the 10,000 rpm ASM-1612
- Ø1,500 mm (Ø59.1 in) table for 3,000 kg (6,614 lb)
- X and Y rapids of 40 m/min
- Cutting feed of 24 / 24 / 24 m/min
Limitations
- Z rapid of 24 m/min against 40 m/min on the ASM-1612
- Top speed of 7,000 rpm limits small-tool finishing
- No power or torque figure is published to quantify the G version
Best For
Frequently Asked Questions
01
The page does not define it. The ASM-1612G lists 7,000 rpm, the same speed as the optional CG30X-01-07 / 7,000 rpm / HSK-A100 head, against 10,000 rpm for the ASM-1612.
02
Rapid traverse is 40 / 40 / 24 m/min for X, Y and Z, and cutting feed is 24 / 24 / 24 m/min. Spindle speed is 7,000 rpm.
03
The table is Ø1,500 mm (Ø59.1 in) and carries 3,000 kg (6,614 lb) in the central area. Travels are 1,620 mm (63.8 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z.
04
Yes, Vision Wide lists an ASM-1612G FD column with the same figures as the ASM-1612G in every row. The page gives no description of the FD version, so ask the maker what it changes.
