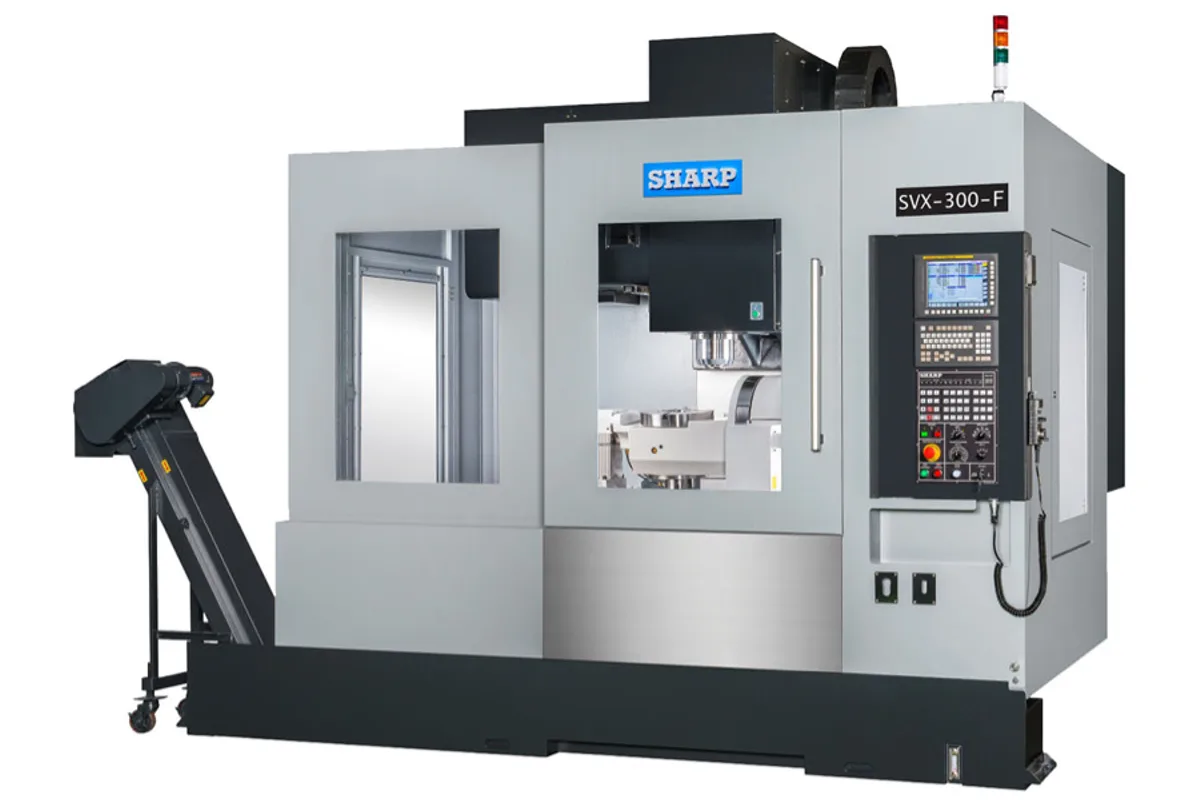

Sharp SVX-300-F

Q: How much does the Sharp SVX-300-F cost?

The price estimate for the Sharp SVX-300-F is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-svx-300-f#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

Image: sharp-industries.com, Sharp

Key Specifications

Max Spindle

12,000 ceramic bearing

Spindle Taper

ISO 7/24 40 Taper CAT Big plus

Tool Capacity

Spindle Power

10/15 hp (7.5/11 kW)

Accuracy

0.0002 in (0.005 mm)

Repeatability

0.00012 in (0.003 mm)

How much does the Sharp SVX-300-F cost?

Price estimate

Uncertain

We do not have a price for the Sharp SVX-300-F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Sharp's SVX-300-F puts an 11.8 in (300 mm) rotary platter on a tilting trunnion inside a C-frame machining center with 29.92 in (760 mm) of X, 23.62 in (600 mm) of Y and 19.69 in (500 mm) of Z. The A axis tilts from -120 to +30° and the C axis rotates 360°, so the spindle can reach five sides of a part and undercut past horizontal on one side.

Payload is 330 lb (150 kg). That, more than the travels, sets the class of work: fixtures plus part have to stay under it, and the trunnion itself occupies much of the X stroke. The table row lists the A-axis cradle at 9.84 in (250 mm) against the larger C-axis platter, and four T-slots, 0.55 wide, set at 90 degrees.

Rotary accuracy is published, which helps when quoting toleranced 5-axis work: +/- 15 arc sec positioning on A and C with 6 arc sec repeatability. Linear positioning is 0.0002 in (0.005 mm). Scales are not part of the base machine; 3 axes linear scale by MITUTOYO appears on the options list.

The spindle matches the smaller SVX-160-F: 12,000 rpm, CAT Big plus 40 taper, 10/15 hp (7.5/11 kW) through a direct coupling. The frame does not. Ball screws grow to 1.57 in (40 mm), the coolant tank to 63.2 gal (240 L), and the machine weighs 16,500 lb (7500 kg) on a floor space 118.1 in wide by 91.7 in deep. Supply is 220V three-phase at 35 kVA.

Full Specifications

Parameter	Value
X Axis Travel	29.92 in (760 mm)
Y Axis Travel	23.62 in (600 mm)
Z Axis Travel	19.69 in (500 mm)
A Axis Range	-120 to +30°
C Axis Range	360°
Distance Spindle Nose to Table	3.94 -23.62 in (100-600 mm)
Distance Spindle Center to Column	26.77 in (680 mm)
Max Table Load	330 lb (150 kg)
T-Slots	4 x 0.55 x 90 degrees (4 x 14 mm x 90 degrees)
Trunnion Table	A axis: 9.84 in / C axis: 11.8 in (A axis: 250 mm / C axis: 300 mm)
Spindle Taper	ISO 7/24 40 Taper CAT Big plus
Max Spindle Speed	12,000 ceramic bearing
Spindle Motor Power	10/15 hp (7.5/11 kW)
Spindle Torque	51 ft-lb. at 1500 rpm / 20 ft-lb at 4000 rpm (70 Nm at 1500 rpm / 27 at 4000 rpm)
Spindle Drive	Direct Coupling
Tool Changer Type	Side Mount
Tool Capacity	24
Max Tool Diameter (full magazine)	2.95 in (75 mm)
Max Tool Diameter Without Adjacent Tools	5.9 in (150 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Tool Selection	Random
Rapid Traverse Xyz	X/Y/Z: 1417.32 ipm (X/Y/Z: 36,000 mm/min)
Cutting Feed Rate	393.7 ipm (10,000 mm/min)
Axis Motors	X: 4 hp / Y/Z: 5 hp (X: 2.98 kW / Y/Z: 3.72 kW)
Positioning Accuracy	0.0002 in (0.005 mm)
Repeatability	0.00012 in (0.003 mm)
AC Axis Positioning Accuracy	+/- 15 arc sec
AC Axis Repeatability	6 arc sec
Ballscrew Diameter	1.57 in (40 mm)
Coolant Tank Capacity	63.2 gal (240 L)
Coolant Nozzles	2
Floor Space	W: 118.1 in x D: 91.7 in (W: 3000 mm x D: 2330 mm)
Machine Height	124.4 in (3160 mm)
Machine Weight	16,500 lb (7500 kg)
Door Opening	43.3 in (1100 mm)
Power Requirement	220V / 60 Hz / 3 Phase / 35 kVA
Air Requirement	6 CFM at 88 psi

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

A-axis tilt of -120 to +30° with full 360° C rotation
Published rotary accuracy: +/- 15 arc sec positioning, 6 arc sec repeatability
330 lb (150 kg) payload on an 11.8 in (300 mm) C-axis table
43.3 in (1100 mm) door opening for loading fixtures
BLUM tool setter and touch probe are standard on the machine

Limitations

Only 2 flood coolant nozzles are listed
Spindle power is 10/15 hp (7.5/11 kW), the same as on the much smaller SVX-160-F
Tools beside occupied pockets may be no more than 2.95 in (75 mm) in diameter
Linear scales and the CTS pump cost extra

Best For

5-axis simultaneous contouring of parts up to 330 lb (150 kg) Aerospace brackets and housings machined in one clamping Mold cores that need undercuts up to 120° of tilt Probed, lights-on production with the standard BLUM devices

Frequently Asked Questions

01 What are the travels of the SVX-300-F?

X 29.92 in (760 mm), Y 23.62 in (600 mm) and Z 19.69 in (500 mm). The A axis tilts -120 to +30° and the C axis rotates 360°. With A at zero the spindle nose is 3.94 to 23.62 in (100-600 mm) from the table.

02 How accurate are the rotary axes?

Sharp's table gives A/C axis position accuracy of +/- 15 arc sec and repeatability of 6 arc sec. For the linear axes it gives 0.0002 in (0.005 mm) positioning and 0.00012 in (0.003 mm) repeatability. Sharp describes the trunnion as built on roller cam bearing components for zero backlash movement.

03 How does the SVX-300-F compare with the SVX-160-F?

The SVX-300-F carries 330 lb (150 kg) where the SVX-160-F carries 132 lb (60 kg), and its X and Y travels are 29.92 in (760 mm) and 23.62 in (600 mm) against 25.2 in (640 mm) and 17.1 in (435 mm). Spindle, tool changer and control are the same. It weighs 16,500 lb (7500 kg), nearly twice as much.

04 What through-spindle coolant options are there?

Coolant Through Spindle (CTS) prepped is a standard accessory. A CTS pump is optional, and Sharp also offers 70 bar CTS prepped at factory, which it describes as a FANUC hollow motor shaft upgrade.
