Vision Wide GSF-4027

Q: How much does the Vision Wide GSF-4027 cost?

The price estimate for the Vision Wide GSF-4027 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-gsf-4027#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

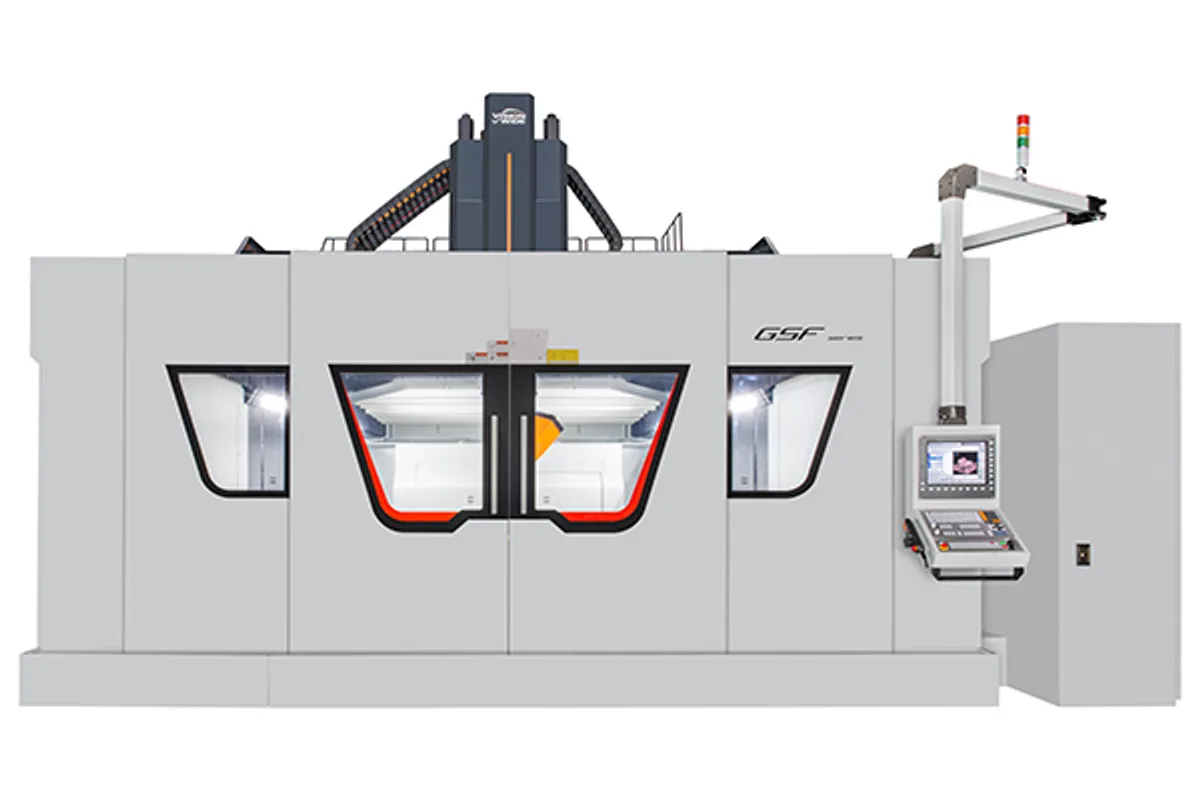

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

20/32/40/60 pcs

Table Size

4,000 x 2,700 mm (157.5 x 106.3 in)

x axis travel

4,000 mm (157.5 in)

y axis travel

2,700 mm (106.3 in)

z axis travel

1,000/1,200 mm (39.4/47.2 in)

How much does the Vision Wide GSF-4027 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide GSF-4027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Four head versions are listed for the Vision Wide GSF-4027, a five-axis gantry with 4,000 mm (157.5 in) of X travel and 2,700 mm (106.3 in) of Y.

The standard is the HST810x15,000 rpm/HSK-A100. Beside it Vision Wide offers the HST810x12,000 rpm/HSK-A100, the HST810x24,000 rpm/HSK-A63 and the HSD610x24,000 rpm/HSK-A63. Two families, then: HST810 heads in three speeds, and a second, differently named HSD610 head at the top speed on the smaller interface. The page does not explain how the HSD610 differs from the HST810 beyond the name, or give power figures for any of the options.

The figures that are published belong to the standard head: 15,000 rpm and 50/65 kW (67.1/87.2 hp) on the S1/S6 ratings. That is a great deal of power for a five-axis head, enough to rough as well as finish.

A four-metre gantry moving at 32 m/min needs its X drive supported, and an X axis ball screw support device is standard at this length. X and Z run on dual ballscrews, and X has dual linear scales. The fixed table is 4,000 x 2,700 mm (157.5 x 106.3 in), rated 3,000 kg/m2.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	1,000/1,200 mm (39.4/47.2 in)
Table Size	4,000 x 2,700 mm (157.5 x 106.3 in)
Max Table Load	3,000 kg/m2
Spindle Power S1 S6	50/65 kW (67.1/87.2 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-20,000 mm/min
Rapid Traverse Xyz	XY:32 m/min / Z:20 m/min
Tool Capacity	20/32/40/60 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Four head versions across HSK-A100 and HSK-A63 interfaces
50/65 kW (67.1/87.2 hp) on the standard 15,000 rpm head
X axis ball screw support device, dual ballscrews and dual linear scales
4,000 x 2,700 mm (157.5 x 106.3 in) fixed table

Limitations

Power is published only for the standard head
The difference between the HST810 and HSD610 heads is not explained
Y axis is driven by a single ballscrew

Best For

Five-axis roughing and finishing with the HSK-A100 head Small-tool finishing with an HSK-A63 head option Four-metre molds, dies and structural parts

Frequently Asked Questions

01 Which heads can the Vision Wide GSF-4027 be ordered with?

Standard: HST810x15,000 rpm/HSK-A100. Optional: HST810x12,000 rpm/HSK-A100, HST810x24,000 rpm/HSK-A63 and HSD610x24,000 rpm/HSK-A63.

02 What is the spindle power of the GSF-4027?

50/65 kW (67.1/87.2 hp), given as S1/S6 ratings, at 15,000 rpm. These figures match the standard head; the page gives none for the optional heads.

03 What are the GSF-4027 travels?

4,000 mm (157.5 in) in X, 2,700 mm (106.3 in) in Y and 1,000/1,200 mm (39.4/47.2 in) in Z, over a 4,000 x 2,700 mm (157.5 x 106.3 in) table.

04 How is the X axis of the GSF-4027 built?

It is driven by dual ballscrews with an X axis ball screw support device, standard for axes of 4m and above, and measured by dual linear scales. Y and Z each have a linear scale.
