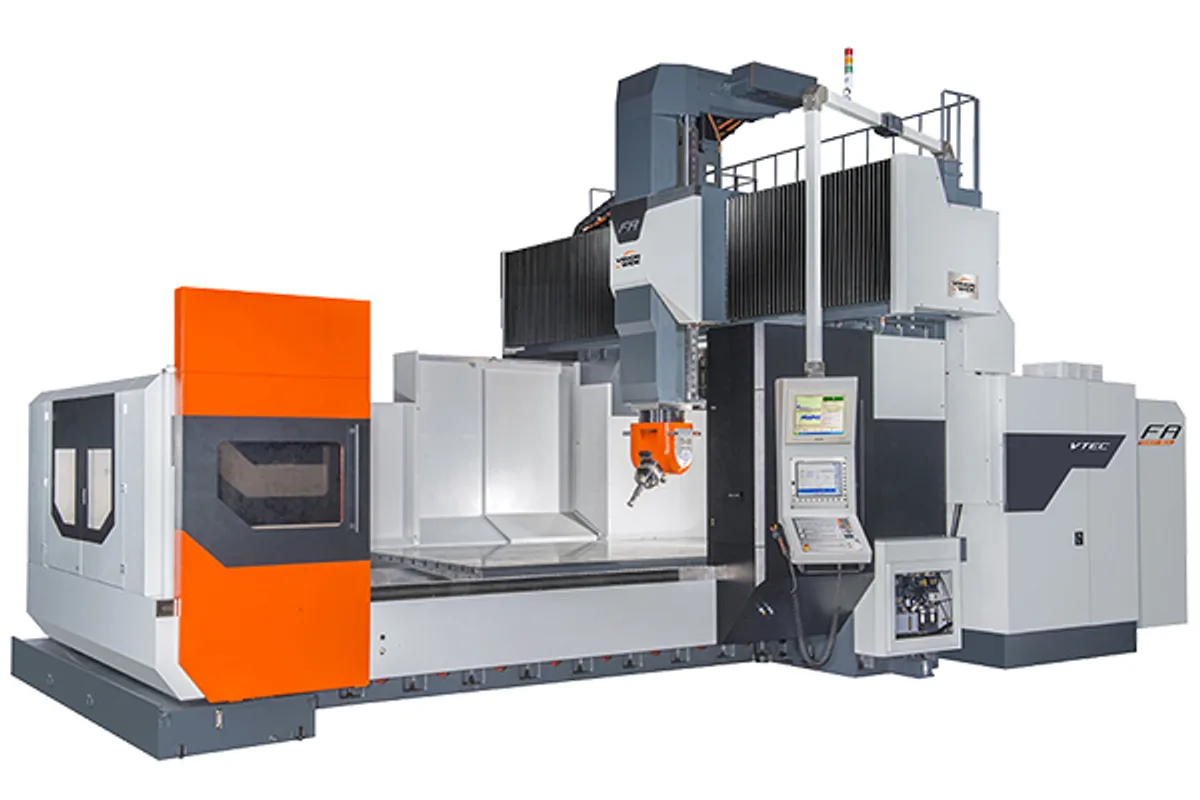

Vision Wide FA-3027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-3027 cost?
Price estimate
We do not have a price for the Vision Wide FA-3027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the Vision Wide FA-3027 the FA series changes spindle. The table lists 12,000 rpm on an HSK-A100 taper, 34 / 43 kW (45.6 / 57.7 hp) and 162 / 205 Nm (119 / 151 lb-ft). Against the FA-3123, which has the same 3,100 mm (122.0 in) X travel and 30 / 36 Nm (22.1 / 26.6 lb-ft), that is more than five times the torque.
So this is the five-axis machine for steel. It can rough a die with a large cutter tilted away from a wall, then finish it, on one setup. Those who still want speed for small tools can order the optional 20,000rpm HSK-A63 spindle listed for the FA-xx27 and FA-xx33 series.
The frame is larger as well. Y travel is 2,700 mm (106.3 in), port width 2,200 mm (86.6 in), and Z travel 1,000 mm with 1,200 mm optional. The table is 3,000×1,800 mm (118.1×70.9 in) for 10,000 kg (22,046 lb).
The heavier build is slower and a little less precise on paper. Rapids are 24 / 18 / 15 m/min, cutting feed 1-10,000 mm/min, and positioning accuracy is given as ±0.005/300 and ±0.008 mm over full travel, with repeatability of ±0.002 mm (±0.00008 in).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,200 mm (86.6 in) |
| Table Size | 3,000×1,800 mm (118.1×70.9 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 24 / 18 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.008 mm (±0.00031 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 162 / 205 Nm (119 / 151 lb-ft) of spindle torque on HSK-A100
- 34 / 43 kW (45.6 / 57.7 hp) at 12,000 rpm
- Port width of 2,200 mm (86.6 in) and Z travel of 1,000 mm, 1,200 mm optional
- Optional 20,000rpm HSK-A63 spindle
Limitations
- Cutting feed limited to 10,000 mm/min, against 24,000 mm/min on the FA-3123
- Full-travel positioning accuracy of ±0.008 mm, looser than the FA-xx23 models
- Table load of 10,000 kg (22,046 lb) is below the 14,000 kg (30,864 lb) of the FA-3123
Best For
Frequently Asked Questions
01
The FA-3027 has a 12,000 rpm HSK-A100 spindle with 162 / 205 Nm (119 / 151 lb-ft) and 2,700 mm (106.3 in) of Y. The FA-3123 has a 24,000 rpm HSK-A63 spindle with 30 / 36 Nm (22.1 / 26.6 lb-ft) and 2,300 mm (90.6 in) of Y.
02
34 / 43 kW (45.6 / 57.7 hp), continuous and short-time, with torque of 162 / 205 Nm (119 / 151 lb-ft) and a top speed of 12,000 rpm.
03
Positioning accuracy is printed as ±0.005/300 and ±0.008 mm (±0.00031 in)/Full travel, with repeatability of ±0.002 mm (±0.00008 in), referred to JIS B6333.
04
The table is 3,000×1,800 mm (118.1×70.9 in) for 10,000 kg (22,046 lb). Travels are 3,100 mm (122.0 in) in X, 2,700 mm (106.3 in) in Y and 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) in Z.
