Yamazaki Mazak Vertical Machining Centers (VMC)

Mazak VCN-530C

Est. $123,000 - $150,000 Possible older model Updated 2026-10-02

This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

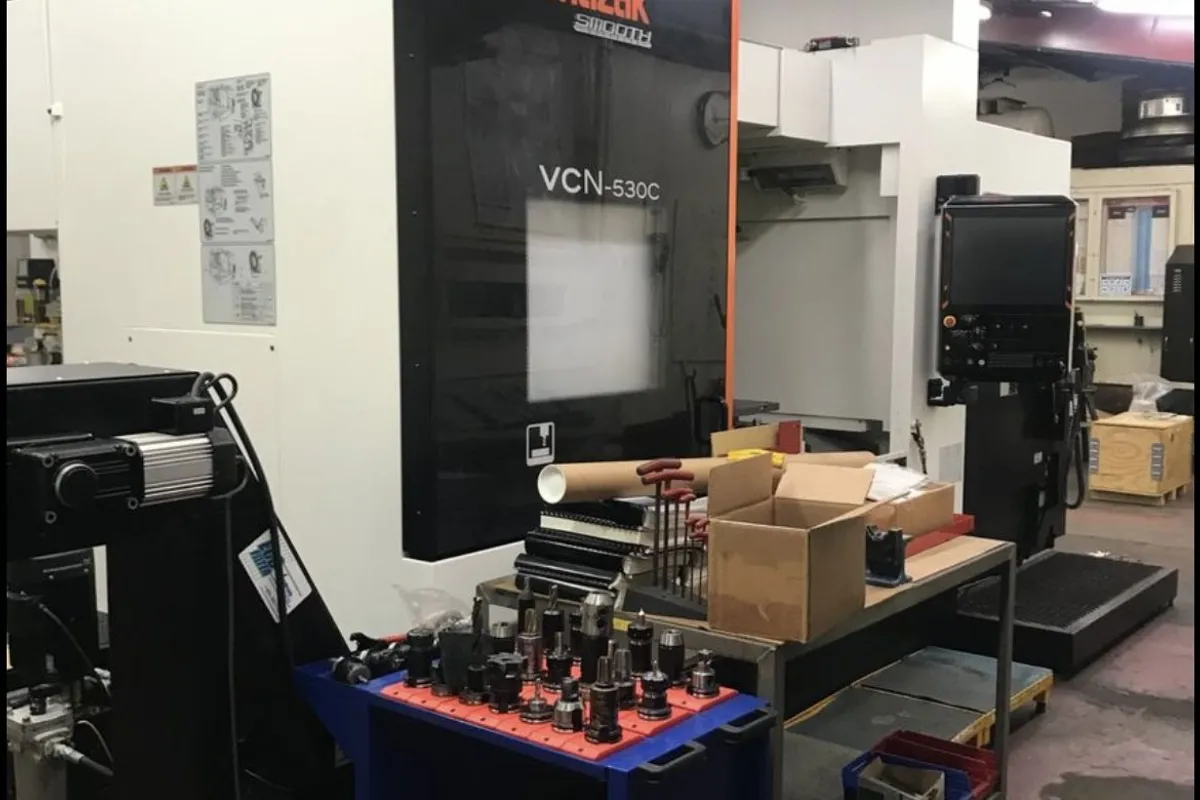

Mazak VCN-530C Vertical Machining Centers (VMC)

Key Specifications

X Travel

1,050 mm (41.3 in)

Y Travel

530 mm (20.9 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (standard); 15,000 / 18,000 RPM optional

Spindle Taper

BT 40

Tool Capacity

30 (arm-type ATC); 48 or 60 optional

How much does the Mazak VCN-530C cost?

Estimated price range

Est.$123,000 - $150,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak VCN-530C is a BT 40 vertical machining center in Mazak's VCN series, listed with 1,050 mm (41.3 in) of X travel, 530 mm (20.9 in) of Y and 510 mm (20.1 in) of Z over a 1,300 x 550 mm (51.2 x 21.7 in) table. The figures on this page are listed figures; what Mazak itself publishes is a description of the series.

That description puts the weight on structure. Mazak says the bed and column were designed with CAD FEA to minimize distortion, and that column distortion caused by heat displacement is improved by 40% compared with the conventional model. The tables in the series are described as offering extended Y-axis stroke so that large fixtures and workpieces can be mounted. Here the listed table is longer than the X travel and a little deeper than the Y travel, and it is listed for 1,200 kg (2,646 lb).

Two spindle specifications appear in the table. The standard one is 12,000 RPM with 18.5 kW (25 hp) and 42 m/min (1,654 ipm) rapids. An HS specification is listed with 30 kW (40 hp) and 52 m/min rapids, and 15,000 or 18,000 RPM spindles are options. Neither power figure comes with a duty rating. The arm-type changer holds 30 tools at 1.3 sec tool to tool, with 48 or 60 tools optional.

For finishing, Mazak offers an electric motor spindle across the series in 60000 min-1 and 80000 min-1 versions. It is ATC-compatible and runs from the same program as regular tools, so roughing and finishing can stay on one machine. A two-pallet changer with access from front and back is also described for the series. Confirm with Mazak whether either is available on the VCN-530C.

Full Specifications

Parameter	Value
X-Axis Travel	1,050 mm (41.3 in)
Y-Axis Travel	530 mm (20.9 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	12,000 RPM (standard); 15,000 / 18,000 RPM optional
Spindle Taper	BT 40
Spindle Motor Power	18.5 kW (25 hp) standard; 30 kW (40 hp) HS
Tool Capacity	30 (arm-type ATC); 48 or 60 optional
Table Size	1,300 x 550 mm (51.2 x 21.7 in)
Max Table Load	1,200 kg (2,646 lb)
Rapid Traverse Rate	42 m/min (1,654 ipm); 52 m/min HS
Tool Change (tool-to-tool)	1.3 sec
Machine Weight	6,800 kg (14,991 lb)
CNC Control	MAZATROL SmoothG
Guide Type	Linear roller guides (all axes)
Floor Space Required	2,870 x 2,819 mm (113 x 111 in)

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Listed table of 1,300 x 550 mm (51.2 x 21.7 in) overhangs the 1,050 mm (41.3 in) X travel, leaving room for clamps at both ends
Mazak states a 40% improvement in column distortion from heat displacement over the conventional model, from CAD FEA design of bed and column
Spindle choices listed from 12,000 RPM up to 18,000 RPM, plus an HS specification at 30 kW (40 hp) with 52 m/min rapids
30-tool arm-type changer at 1.3 sec tool to tool, expandable to 48 or 60 tools
Listed footprint of 2,870 x 2,819 mm (113 x 111 in) for a machine with a 1,200 kg (2,646 lb) table load

Limitations

The 15,000 and 18,000 RPM spindles and the 48 and 60 tool magazines are options, so the base machine has 12,000 RPM and 30 tools
Neither the 18.5 kW (25 hp) nor the 30 kW (40 hp) figure carries a duty rating, and no torque is listed
The 60000 and 80000 min-1 electric motor spindle and the two-pallet changer are described for the VCN series, not for this model by name
Mazak publishes a series description, not a table for this model alone, so confirm the listed travels, power and weight in the quotation

Best For

Mould bases, plates and fixtures within 1,050 x 530 x 510 mm of travel Mixed roughing and finishing where an 18,000 RPM option or the HS specification is ordered Workholding and parts up to the listed 1,200 kg (2,646 lb) table load Shops with limited floor space: listed footprint 2,870 x 2,819 mm (113 x 111 in)

Frequently Asked Questions

01 What are the travels and table size of the VCN-530C?

The listed travels are 1,050 mm (41.3 in) in X, 530 mm (20.9 in) in Y and 510 mm (20.1 in) in Z. The listed table is 1,300 x 550 mm (51.2 x 21.7 in) with a 1,200 kg (2,646 lb) load limit. The table is longer than the X stroke, so its outer ends are clamping space, not machining space.

02 What is the HS specification on the VCN-530C?

The table lists it as a second specification beside the standard one. Standard is 12,000 RPM, 18.5 kW (25 hp) and 42 m/min (1,654 ipm) rapids. HS is listed with 30 kW (40 hp) and 52 m/min rapids. Spindles of 15,000 and 18,000 RPM are listed as options. No duty rating is given for the power figures, so ask Mazak for the output chart of the spindle you intend to order.

03 Is the 60000 or 80000 min-1 electric motor spindle available on the VCN-530C?

Mazak describes an electric motor spindle for the VCN series in two versions, 60000 min-1 and 80000 min-1, intended for surface finishing, micromachining, drilling and mirror-finished machining. It is ATC-compatible and uses the same program as regular tools. The description is for the series as a whole, so confirm with Mazak that it can be ordered on the VCN-530C.

04 How much floor space and weight does the VCN-530C need?

The listed footprint is 2,870 x 2,819 mm (113 x 111 in) and the listed machine weight is 6,800 kg (14,991 lb). Plan the floor loading and rigging around the weight, and leave room beyond the footprint for chip removal and for door and service access.
