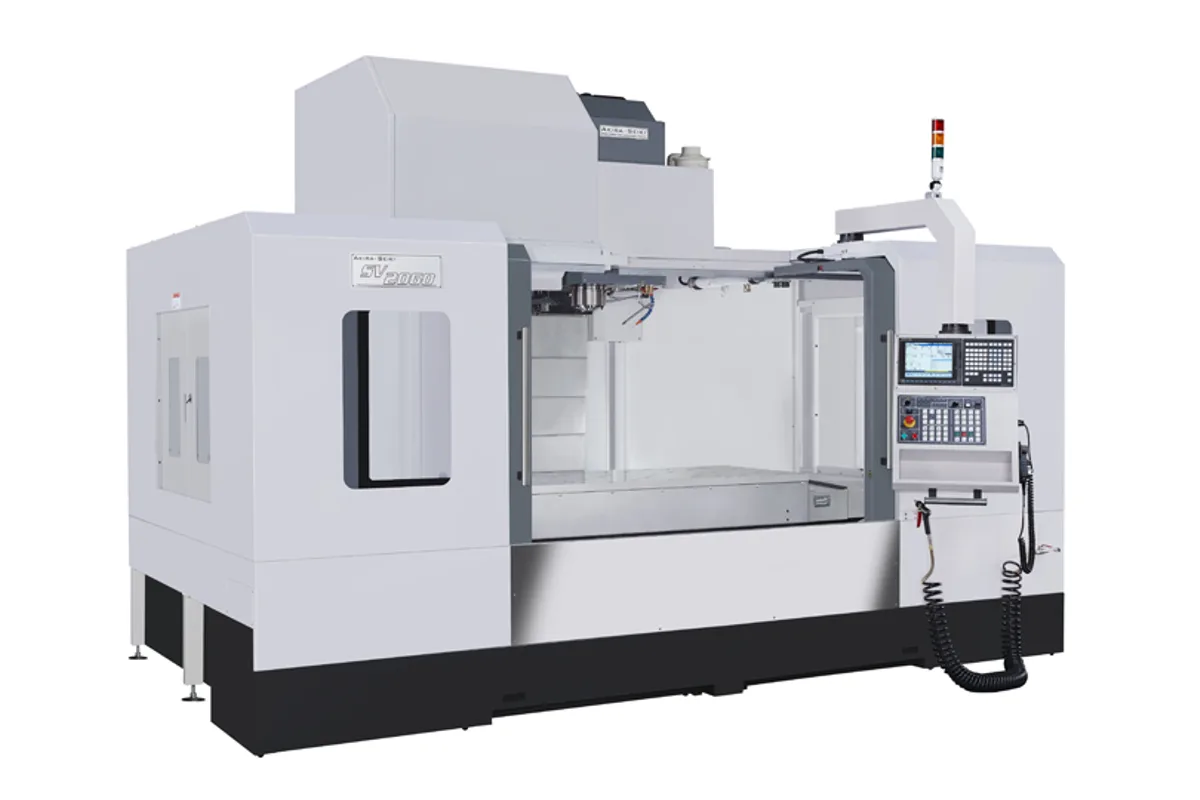

Akira Seiki SV2060
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SV2060 cost?
Price estimate
We do not have a price for the Akira Seiki SV2060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki SV2060 is a two-metre high-speed vertical: 2,060 mm (81.1 in) of X travel, 850 mm (33.5 in) of Y and 815 mm (32 in) of Z, with a 2,150 x 800 mm (84.7 x 31.5 in) table rated to 3,240 kg (7,142 lb) maximum.
In the SV range it sits between the SV1630 and the SV2600 and shares its Y and Z axes with the former. The extra X changes little else in the specification. Weight is 13,700 kg (30,203 lb), the coolant tank is 700 L (185 gal), and the footprint is 5,750 x 3,540 mm (226 x 139 in).
For aerospace-style plate work the appeal is plain. Long aluminium parts are held flat on the table, and a 15,000 rpm, 42 HP (31.3 kW) peak spindle removes material at rates a slower spindle cannot reach with the same small cutters. The spindle is BT40 and oil chilled. Rapid feed is 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm).
A 36T magazine serves the spindle in 1.9 s, with tools up to 350 mm (13.8 in) long. Listed accuracy is 0.015 mm (0.00059 in) positioning and ±0.005 mm (±0.00020 in) repeatability. Standard table loading is 2,700 kg (5,952 lb). The machine needs 35 kVA, and chips are carried out by a chain type conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 |
| X Axis Travel | 2,060 mm (81.1 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 815 mm (32 in) |
| Distance Spindle Nose to Table | 100~915 mm (4~36 in) |
| Spindle Center to Column Cover | 865 mm (34 in) |
| Table Size | 2,150 x 800 mm (84.7 x 31.5 in) |
| T-Slots | 18 mm x 125 mm pitch x 6 slots |
| Max Table Load | 3,240 kg (7,142 lb) |
| Standard Table Load | 2,700 kg (5,952 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT40 |
| Spindle Cooling | Oil chilling |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Cutting Feed Rate | 15 / 15 / 10 m/min (591 / 591 / 394 ipm) |
| Positioning Accuracy | 0.015 mm (0.00059 in) |
| Repeatability | ±0.005 mm (±0.00020 in) |
| Tool Capacity | 36T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 7 kg (15.4 lb) |
| Tool Change Time | 1.9 s |
| Coolant Tank Capacity | 700 L (185 gal) |
| Chip Disposal | Chain Type Chip Conveyor |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 5,750 x 3,540 mm (226 x 139 in) |
| Machine Weight | 13,700 kg (30,203 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,060 mm (81.1 in) of X travel under a 15,000 rpm spindle
- 42 HP (31.3 kW) peak, oil chilled, BT40
- Table rated to 3,240 kg (7,142 lb) maximum
- 700 L (185 gal) coolant tank and chain type chip conveyor
Limitations
- 13,700 kg (30,203 lb) and 5,750 x 3,540 mm (226 x 139 in) to site
- Repeatability of ±0.005 mm (±0.00020 in)
- Cutting feed of 15 / 15 / 10 m/min (591 / 591 / 394 ipm) over a two-metre stroke
- Tool weight limit of 7 kg (15.4 lb)
Best For
Frequently Asked Questions
01
2,150 x 800 mm (84.7 x 31.5 in), with six 18 mm T-slots at 125 mm pitch. Standard loading is 2,700 kg (5,952 lb) and maximum loading 3,240 kg (7,142 lb).
02
A BT40 spindle with oil chilling, 15,000 rpm maximum speed and 42 HP (31.3 kW) of peak power. The magazine holds 36T and changes tools in 1.9 s.
03
The SV2060 weighs 13,700 kg (30,203 lb) and the SV1630 12,575 kg (27,723 lb). The two share Y and Z travels, spindle and magazine; the SV2060 has the longer X axis and table.
04
The maker lists 5,750 x 3,540 mm (226 x 139 in). Power requirement is 35 kVA and the air pressure requirement 0.5 MPa (72.5 psi).
