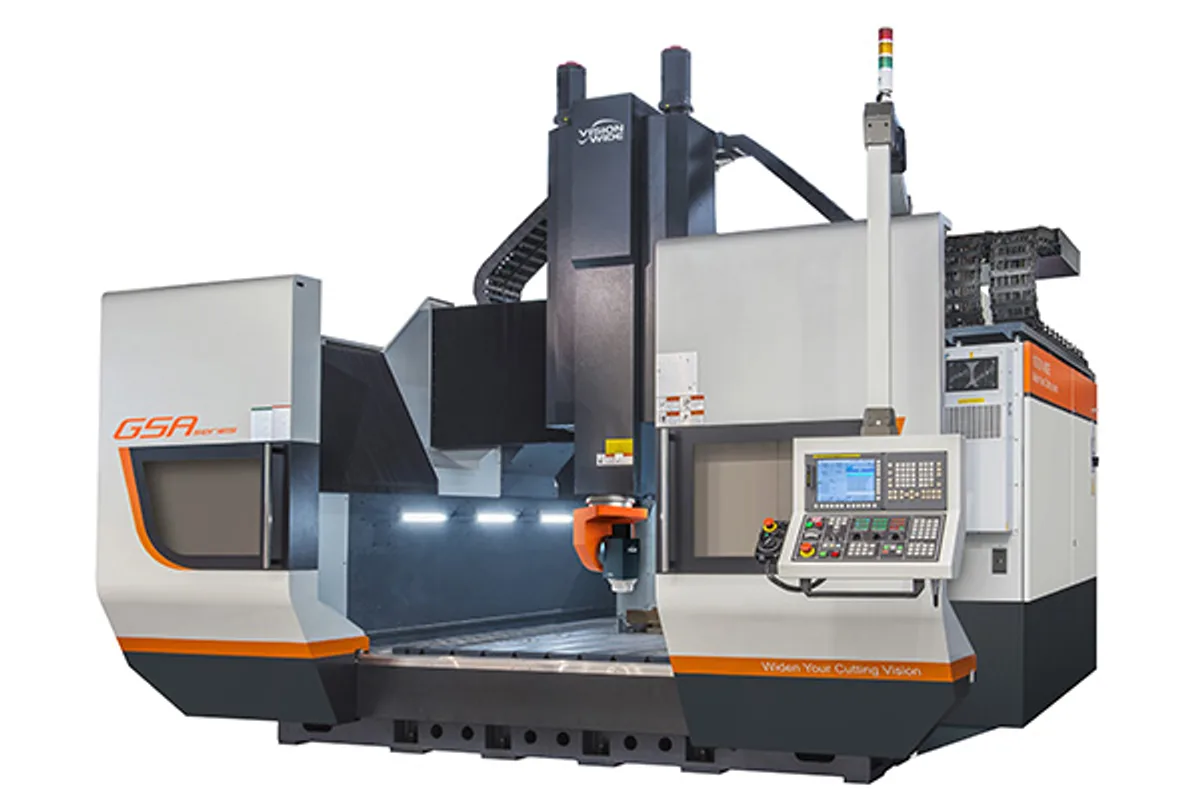

Vision Wide GSA-3027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-3027 cost?
Price estimate
We do not have a price for the Vision Wide GSA-3027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Buyers of a three-metre Vision Wide gantry with a two-axis head choose between two machines with the same travels, and the Vision Wide GSA-3027 is the indexing one. X travel is 3,000 mm (118.1 in), Y travel 2,700 mm (106.3 in), and the table 3,000×2,700 mm (118.1×106.3 in).
Its head positions in 1-degree steps on B and C and then holds still. The GSF-3027, on the same travels, has direct-driven B and C axes that move during the cut, and Vision Wide publishes a dynamic five-axis accuracy figure for it on the GSF page.
Which is right depends on the surfaces. Angled planes, inclined holes, undercut walls reached from a fixed tilt: all of these are positioning jobs, and a head that locks is the stiffer way to do them. Blended sculpted surfaces that need the tool axis to change continuously are not; that is what the GSF is for. Much mold work is of the first kind.
Both share a 50/65 kW (67.1/87.2 hp) spindle rating and 15,000 rpm. On the GSA, rapid traverse is 32/32/20 m/min and the cutting feed range is 1~20,000 mm/min. An automatic correction software of rotary axis error is offered as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 3,000×2,700 mm (118.1×106.3 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Indexing head that locks at the set angle for rigid 3+2 cutting
- 3,000×2,700 mm (118.1×106.3 in) fixed table
- 50/65 kW (67.1/87.2 hp) at 15,000 rpm
- Head rotation error mechanism chain correction is standard
Limitations
- Cannot change tool angle during the cut, unlike the GSF-3027
- Automatic correction software of rotary axis error is optional
- Indexing increments are 1 degree on B and C
Best For
Frequently Asked Questions
01
Travels are the same. The GSA-3027 has an indexing head, 1 degree per step on B and C, for 3+2 axis work. The GSF-3027 has direct-driven B and C axes for simultaneous five-axis cutting.
02
X travel is 3,000 mm (118.1 in), Y travel is 2,700 mm (106.3 in) and Z travel is 1,000 mm, or 1,200 mm as an option. The table is 3,000×2,700 mm (118.1×106.3 in).
03
IAC head rotation error mechanism chain correction is on the standard list. Automatic correction software of rotary axis error is an option, and the X axis has dual linear scales with single scales on Y and Z.
04
A HEIDENHAIN TNC640 controller is listed as standard for the GSA series. The page names no alternative control for this series.
