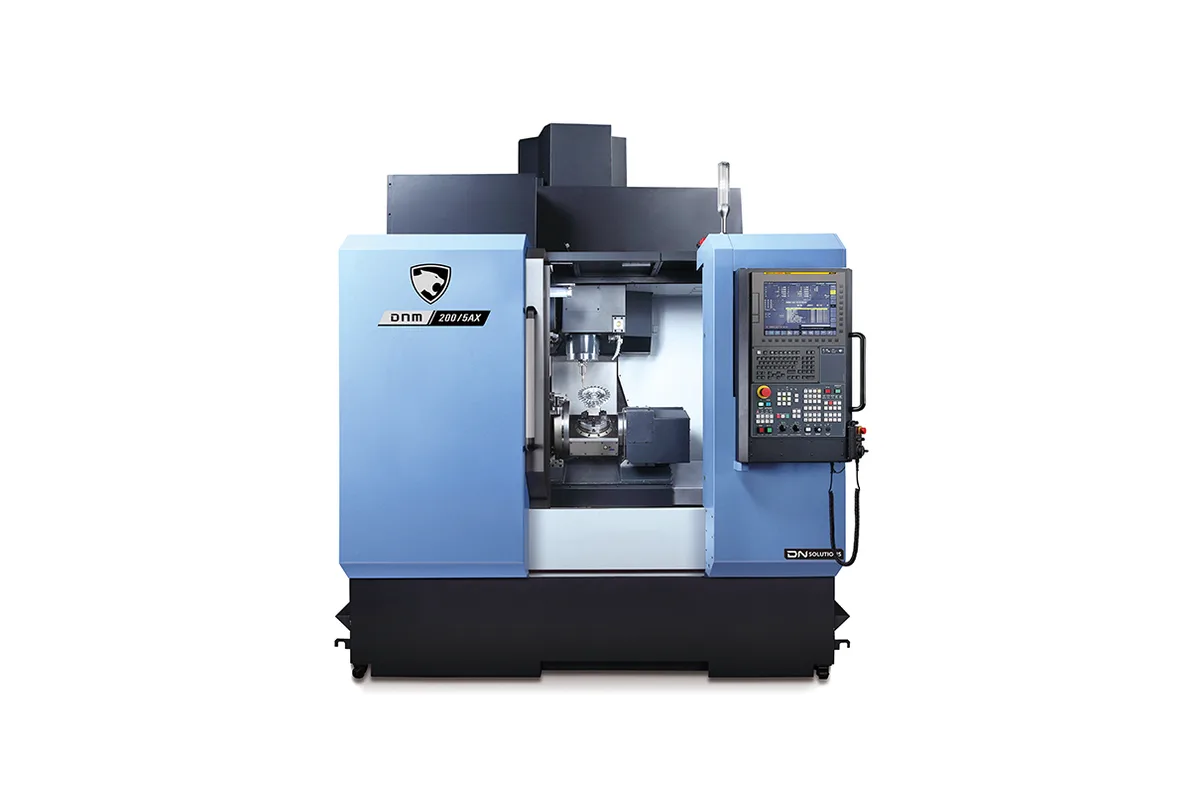

DN Solutions DNM 200

$80,000 - $130,000 Updated 2026-03-16

Key Specifications

X Travel

560 mm (22 in)

Y Travel

430 mm (17 in)

Z Travel

380 mm (15 in)

Max Spindle

15,000 RPM (20,000 RPM optional)

Spindle Taper

BT 30 (BBT 30)

Tool Capacity

24 tools (30 optional)

Overview

The DN Solutions DNM 200 is the compact, high-precision member of the DNM vertical machining center family, designed for shops that need 5-axis capability in a smaller footprint without sacrificing the build quality that the DNM platform is known for. With axis travels of 560 x 430 x 380 mm (22 x 17 x 15 in), it targets the precision small-part market: medical devices, aerospace brackets, electronics housings, and complex instrumentation components that require accurate 5-axis access but don't demand a full-size trunnion machine.

The spindle runs at 15,000 RPM through a BT 30 (BBT 30) taper with 11 kW (15 hp) and a maximum torque of 47.7 Nm (35 ft-lb). The higher spindle speed suits aluminum, titanium alloys, and harder materials machined with small-diameter tooling — precisely the combination found in medical and aerospace precision work. An optional 20,000 RPM spindle is available for shops demanding maximum surface finish quality or machining graphite electrodes for EDM.

The machine incorporates a tilting/rotary 5-axis head option, allowing full simultaneous 5-axis contouring on small, complex parts. Linear roller guideways on all three axes deliver rapid traverse rates of 30 m/min, balancing speed with the precision positioning needed for tight-tolerance work. The compact table accommodates a 400 x 300 mm (16 x 12 in) working area with a 300 kg (661 lb) load capacity — modest numbers appropriate for the precision small-part workpieces this machine targets.

At approximately 3,800 kg (8,378 lb), the DNM 200 is light enough to install without reinforced flooring while being heavy enough to dampen vibration during fine finishing passes. The machine runs on FANUC 0i-MF Plus control as standard, with Siemens 828D available as an option. The DNM 200 occupies a niche between a Brother Speedio-class HSM center and a full 5-axis trunnion machine, offering real simultaneous 5-axis capability at a more accessible price point than dedicated 5-axis platforms.

Full Specifications

Parameter	Value
X-Axis Travel	560 mm (22 in)
Y-Axis Travel	430 mm (17 in)
Z-Axis Travel	380 mm (15 in)
Max Spindle Speed	15,000 RPM (20,000 RPM optional)
Spindle Motor Power	11 kW (15 hp)
Spindle Torque	47.7 Nm (35 ft-lb)
Spindle Taper	BT 30 (BBT 30)
Tool Capacity	24 tools (30 optional)
Tool Change Time	1.5 sec (tool-to-tool)
Table Size	400 x 300 mm (15.7 x 11.8 in)
Table Load Capacity	300 kg (661 lb)
Rapid Traverse Xyz	30 m/min (1,181 ipm)
Positioning Accuracy	0.005 mm (0.0002 in)
Repeatability	0.003 mm (0.00012 in)
Machine Dimensions	1,980 x 2,100 x 2,350 mm (78 x 83 x 93 in)
Machine Weight	3,800 kg (8,378 lb)
CNC Control	FANUC 0i-MF Plus (Siemens 828D optional)
Max Spindle Speed	Max. Spindle Torque
X Axis Travel Distance	400 mm
Y Axis Travel Distance	435 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid TraverseA-Axis Rapid TraverseC-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle Torque
Table	Rotary Table DiameterMaximum Workpiece weight
Rotary Table Diameter	Maximum Workpiece weight
Tool Storage Capacity	No. of tool station
Dimensions	LengthHeightWidthWeight
Favorites	DNM 350/5AX
12000 R Min	117 N·m
12000 Rpm	86 ft-lb
200 Mm	40 kg
8 Inch	88 lb
350 Mm	250 kg
14 Inch	551 lb

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Compact footprint allows installation in tight shop spaces or alongside other precision cells without reinforced flooring
15,000 RPM BT 30 spindle is well-matched to small-diameter precision tooling in aluminum, titanium alloys, and medical-grade materials
5-axis capability on a compact, affordable platform bridges the gap between HSM centers and full-size trunnion machines
FANUC 0i-MF Plus control is widely familiar and well-supported, reducing operator training time and programming complexity
Linear roller guideways on all axes deliver consistent accuracy and low friction across long production cycles

Limitations

BT 30 taper limits tool size and cutting force compared to BT 40 machines, restricting maximum material removal rate
380 mm Z-travel is on the shorter side — tall parts or deep-cavity features may not fit within the work envelope
300 kg table load capacity limits fixture weight, ruling out heavy multi-part tombstone setups
11 kW spindle power is modest for anything beyond light-to-medium cuts in steel
Small-part focus means the machine is not versatile enough for shops doing general-purpose mid-size VMC work

Best For

Medical device manufacturers machining implants, surgical instruments, and complex precision components in titanium and stainless steel Aerospace shops producing small structural brackets, fittings, and instrumentation housings requiring simultaneous 5-axis access Job shops specializing in tight-tolerance precision work on small parts where a full-size 5-axis machine would be overkill Electronics and instrumentation manufacturers needing a capable 5-axis platform for complex housings, connectors, and enclosures EDM electrode shops that also need graphite machining capability at 20,000 RPM with the optional high-speed spindle

Frequently Asked Questions

01 What does a DN Solutions DNM 200 cost?

New DNM 200 machines typically price between $80,000 and $130,000 depending on spindle option (15K vs 20K RPM), 5-axis head configuration, tool magazine size, and control platform. Base 3-axis configurations with FANUC start around $80,000-$90,000; adding 5-axis capability and through-spindle coolant pushes to $110,000-$130,000.

02 Is the DNM 200 a true simultaneous 5-axis machine?

Yes, with the appropriate 5-axis head option. The DNM 200 supports simultaneous 5-axis contouring through a tilting/rotating spindle head (A/B axis), allowing full 5-axis access to complex part geometries. The standard configuration is 3-axis; the 5-axis head is an option that must be specified at purchase.

03 How does the DNM 200 compare to a Brother Speedio?

The Brother Speedio S700X2 is faster (28,000 RPM, chip-to-chip under 2 seconds) and excels at high-mix high-volume small-part production. The DNM 200 offers more Z-travel and genuine 5-axis simultaneous capability that the Speedio lacks. Choose the Brother for speed and volume; the DNM 200 for complex 5-axis geometry on precision parts.

04 What materials can the DNM 200 machine?

The 15,000 RPM BT 30 spindle handles aluminum, titanium alloys (Ti-6Al-4V), stainless steel, medical-grade cobalt-chrome, plastics, and graphite (with the 20K option). For steel and cast iron, the machine can cut but is limited by the 11 kW spindle power — aggressive steel roughing is not this machine's strength.

05 Does the DNM 200 support 4th axis operation?

Yes. The machine can be configured with a 4th axis rotary table for indexed or continuous 4-axis operation, in addition to or as an alternative to the full 5-axis head. A compact Tsudakoma or Kitagawa rotary unit in the 100-170 mm range fits within the 400 x 300 mm work envelope.
