Yasda Precision Vertical Machining Centers

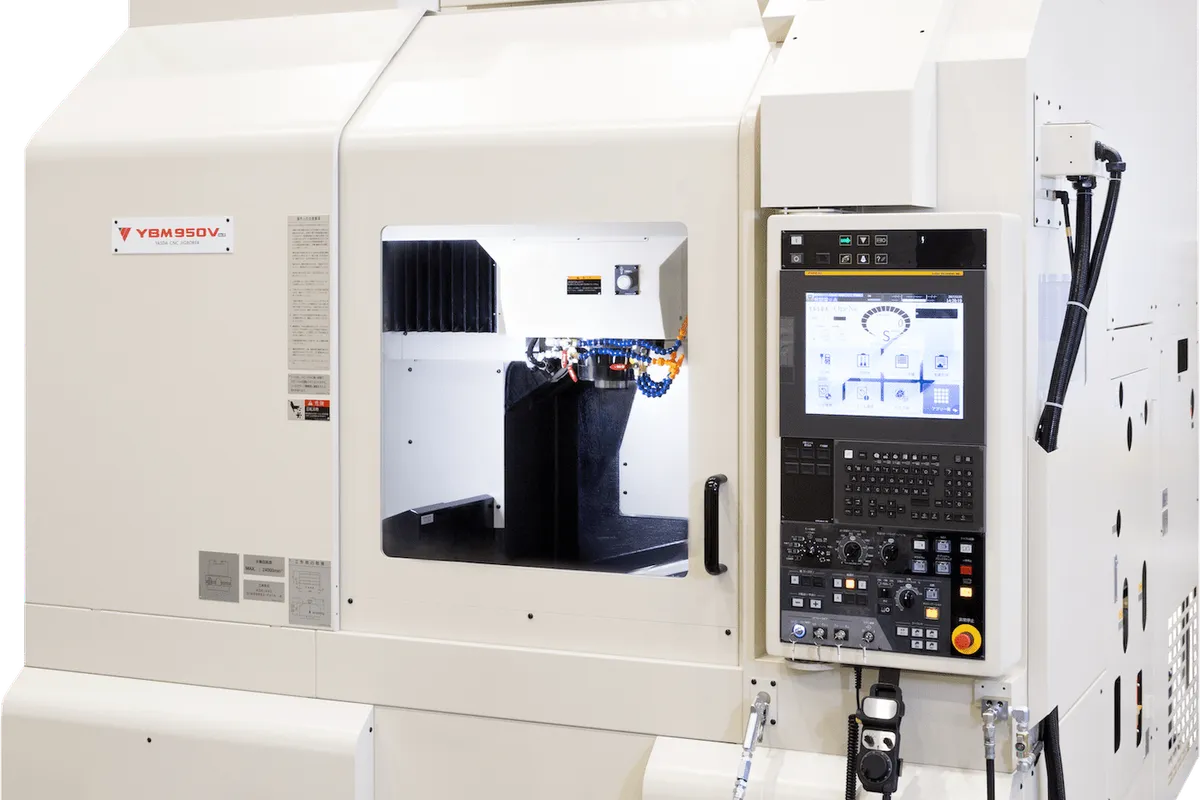

Yasda YBM 950V

$350,000 - $500,000 Updated 2026-03-14

Key Specifications

X Travel

950 mm (37.4 in)

Y Travel

550 mm (21.7 in)

Z Travel

450 mm (17.7 in)

Spindle Taper

BBT40 [HSK-A63 (op)]

Tool Capacity

30 tools [ Max. 100 tools / 60 tools stand (op) ]

Table Size

1,100 x 550 mm (43.3 x 21.7 in)

Overview

The Yasda YBM 950V is a ultra-precision vertical machining center that has earned a near-mythical reputation among moldmakers and aerospace shops demanding single-digit micron accuracy straight out of the box. Yasda hand-scrapes every major casting and slide surface during assembly in their Okayama, Japan factory — a process that adds weeks to build time but delivers geometric accuracy that most competitors simply cannot match at this price point. With 950 x 550 x 450 mm (37.4 x 21.7 x 17.7 in) of X/Y/Z travel, the 950V covers a substantial working envelope for precision mold, die, and aerospace component work.

The machine's boxway construction on all three linear axes is central to its performance. While many modern VMCs have moved to linear guides for speed, Yasda sticks with hand-scraped box guideways because they provide superior vibration damping and long-term geometric stability. The result is surface finishes and dimensional accuracy that remain consistent year after year, not just during acceptance testing. The BT40 or HSK-A63 spindle runs to 15,000 rpm standard (20,000 rpm optional) with through-spindle coolant, and the direct-drive spindle design eliminates belt-induced vibration.

Positioning accuracy is specified at +/-1.5 microns with repeatability of +/-1.0 microns — numbers that are verified under cutting conditions, not just rapid traverse. The thermal displacement compensation system uses multiple temperature sensors embedded in the castings and ball screws to actively correct for thermal growth during long machining cycles. This is critical for shops running 16-20 hour unattended cycles on hardened steel mold components where thermal drift would otherwise destroy accuracy.

The Fanuc 31i-B5 control (or optional Heidenhain TNC 640) provides full 5-axis simultaneous capability when equipped with the optional rotary/tilt table. The 30-tool ATC is fast and reliable, and the machine's overall build quality means maintenance costs stay low even after years of three-shift operation. The YBM 950V competes with Mitsui Seiki, Makino, and Kern machines — shops that buy one rarely go back to anything else.

Full Specifications

Parameter	Value
X-Axis Travel	950 mm (37.4 in)
Y-Axis Travel	550 mm (21.7 in)
Z-Axis Travel	450 mm (17.7 in)
Table Size	1,100 x 550 mm (43.3 x 21.7 in)
Max Table Load	1,200 kg (2,646 lb)
Spindle Speed	15,000 rpm (20,000 rpm optional)
Spindle Taper	BBT40 [HSK-A63 (op)]
Spindle Motor	15 kW (20 HP) continuous
Positioning Accuracy	+/-1.5 um
Repeatability	+/-1.0 um
Rapid Traverse Rate	Max. 20,000mm/min
Tool Capacity	30 tools [ Max. 100 tools / 60 tools stand (op) ]
Guideway Type	Hand-scraped box guideways (all axes)
CNC Control	Fanuc 31i-B5 (Heidenhain TNC 640 optional)
Machine Weight	9,500 kg (20,944 lb)
Specification	YBM 950V
Accuracy Iso230 2	2.2, 1.1, 1.5Î¼m
Travel	900 x 500 x 350mm
Spindle Rpm	24,000minâ»Â¹
Table Working Size	1,000 x 500mm
Maximum Loading Capacity	800kg
Axis	3
Type	Vertical

Specifications sourced from yasda.com — verified 2026-03-28

Strengths & Limitations

Strengths

Hand-scraped box guideways on all axes deliver geometric accuracy and long-term stability that linear guide machines cannot match
Positioning accuracy of +/-1.5 um verified under cutting conditions makes it suitable for the most demanding mold and die work
Thermal displacement compensation with embedded sensors maintains accuracy during long unattended machining cycles
Direct-drive spindle eliminates belt vibration for superior surface finishes in hardened steel finishing operations
Exceptional build quality and hand-fitted assembly means the machine holds accuracy for decades with proper maintenance
950 mm X-travel provides a generous envelope for a precision-class VMC, handling larger mold bases than most jig-bore class machines

Limitations

Premium pricing puts the YBM 950V well above mainstream VMCs — budget $350K-$500K depending on configuration
Box guideways limit rapid traverse speeds to 36 m/min compared to 60+ m/min on linear guide machines
Lead times of 6-12 months are common due to hand-scraping and limited production volume at Yasda's factory
North American service and parts availability is more limited compared to Mazak, Makino, or DMG Mori
15,000 rpm standard spindle speed may require the 20,000 rpm upgrade for efficient small-tool finishing in hardened steel

Best For

Injection mold shops requiring single-digit micron accuracy on cavity and core finishing operations Aerospace shops machining tight-tolerance structural components in titanium, Inconel, and hardened alloys Die and mold makers who need a machine that holds accuracy over years of three-shift production Shops replacing jig borers or jig grinders with a modern CNC platform that delivers equivalent precision Medical device manufacturers producing implant molds and precision tooling requiring sub-micron repeatability Any application where geometric accuracy and surface finish quality take priority over cycle time and rapid speeds

Frequently Asked Questions

01 What does a Yasda YBM 950V cost?

New YBM 950V machines typically price between $350,000 and $500,000 depending on spindle option, control choice, and accessories. Used machines are rare on the secondary market because owners tend to keep them, but when available they hold value well at $200,000-$350,000.

02 Why does Yasda hand-scrape the guideways?

Hand-scraping creates a precisely controlled bearing surface with oil retention pockets that cannot be replicated by machine grinding alone. This process gives the YBM 950V its exceptional geometric accuracy and ensures the machine maintains that accuracy for decades rather than degrading after a few years.

03 How does the YBM 950V compare to a Makino V33i or V56i?

The Makino V-series uses linear guides and higher spindle speeds for faster cycle times, making them better for high-speed graphite and finish machining. The Yasda YBM 950V with box guideways offers superior vibration damping and long-term geometric stability, making it the better choice when absolute accuracy is the top priority.

04 Can the YBM 950V do 5-axis machining?

Yes. With the optional rotary/tilt table and Fanuc 31i-B5 or Heidenhain TNC 640 control, the YBM 950V handles full 5-axis simultaneous machining. The machine's inherent accuracy makes it an excellent platform for 5-axis mold and aerospace work.

05 What kind of maintenance does the YBM 950V require?

The box guideway design requires periodic way oil monitoring and guideway adjustment, but overall maintenance is straightforward. The hand-scraped surfaces and robust construction mean the machine typically needs less repair work than lighter-built machines even under heavy production use.
