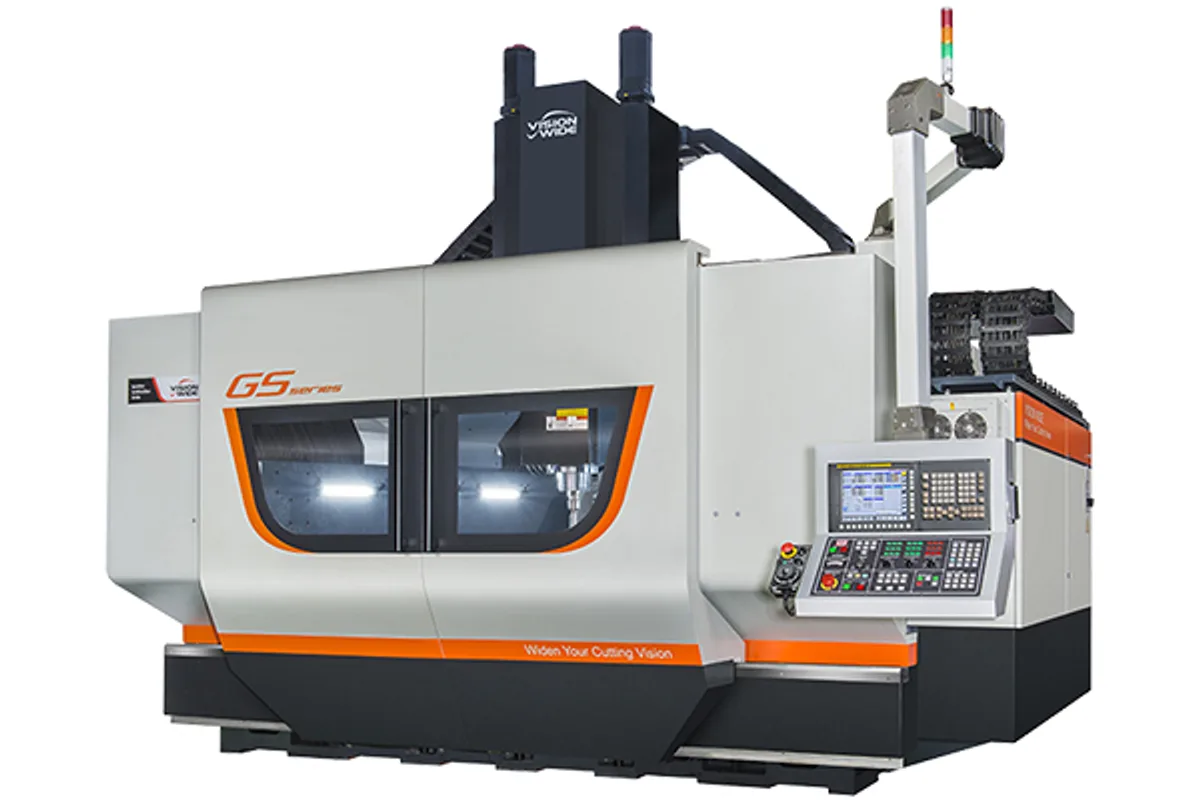

Vision Wide GS-2520
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide GS-2520 cost?
Price estimate
We do not have a price for the Vision Wide GS-2520 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Spindle choice is wide on the Vision Wide GS-2520, a gantry machining center with 2,500 mm (98.4 in) of X travel and 2,000 mm (78.7 in) of Y.
The standard spindle is direct-driven at 15,000rpm; Vision Wide credits it with low noise, backlash, vibration and power consumption. From there the option list goes both ways. Upward, there are built-in spindles of 20,000/24,000/28,000 rpm with an HSK-A63 interface, for small tools and fine finishing. Downward in speed and up in tool size, there are built-in spindles of 10,000/12,000 rpm on HSK-A100 and a direct driven spindle of 10,000/12,000 rpm with a 50# taper.
A 2.5 m gantry is often a shop's only large high-speed machine, so the choice has consequences. The 15,000 rpm standard is the compromise. A shop cutting mostly aluminum structures might prefer 24,000 rpm; one finishing large steel dies with long cutters is better served by the 50-taper options.
The table is 2,500 x 2,000 mm (98.4 x 78.7 in) at 3,000 kg/m2. Feed reaches 24,000 mm/min, and coolant through spindle system 20 / 70 bar is an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,500 mm (98.4 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 2,500 x 2,000 mm (98.4 x 78.7 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power Cont 30 Min | L：15 / 18.5 kW (20.1 / 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 24 m/min; 30 / 30 / 24 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Built-in spindle options of 20,000/24,000/28,000 rpm (HSK-A63)
- 50-taper and HSK-A100 spindle options at 10,000/12,000 rpm
- 2,500 x 2,000 mm (98.4 x 78.7 in) fixed table
- Coolant through spindle system 20 / 70 bar available
Limitations
- Only the 15,000rpm direct-driven spindle is standard
- Listed spindle power is 15 / 18.5 kW (20.1 / 24.8 hp); ratings for the optional spindles are not given
- Through-spindle coolant is optional
Best For
Frequently Asked Questions
01
Standard: direct-driven spindle 15,000rpm. Optional: built-in spindles of 20,000/24,000/28,000 rpm (HSK-A63) or 10,000/12,000 (HSK-A100), and a direct driven spindle of 10,000/12,000 with a 50# taper.
02
X travel is 2,500 mm (98.4 in), Y travel is 2,000 mm (78.7 in) and Z is 800 mm, or 1,000 mm as an option. The table measures 2,500 x 2,000 mm (98.4 x 78.7 in).
03
The table lists 15 / 18.5 kW (20.1 / 24.8 hp), continuous and short-time, with a 15,000 rpm spindle speed. Power for the optional spindles is not stated on the page.
04
As an option: coolant through spindle system 20 / 70 bar. An oil mist cooling device is also optional, and a cutting fluid cooling system is standard.
More from Vision Wide
Other Vertical Machining Centers (VMC)
Colchester Storm VH-2000
AWEA BM-1500II
Akira Seiki SV1630

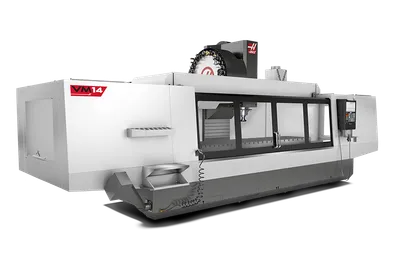

Haas VM-14/50
