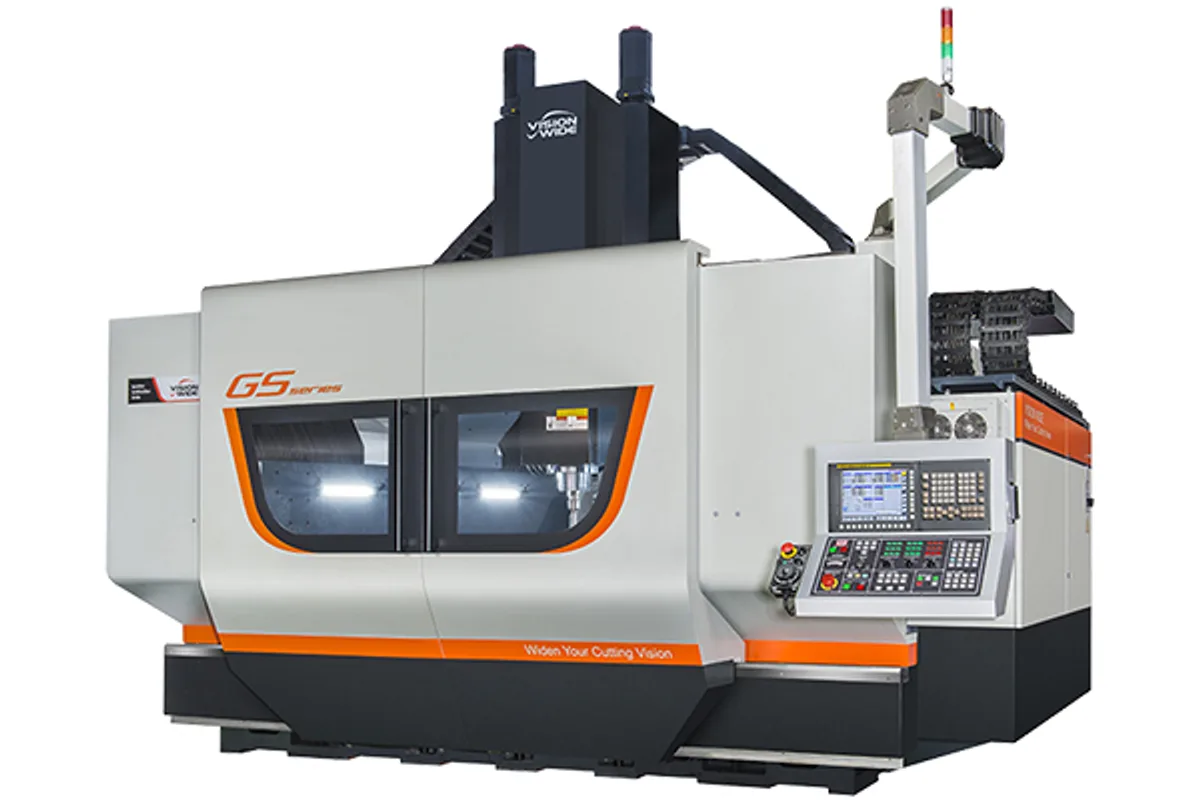

Vision Wide GS-1220
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide GS-1220 cost?
Price estimate
We do not have a price for the Vision Wide GS-1220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GS-1220 is a compact gantry machining center: the table stays still and the bridge travels over it. X travel is 1,200 mm (47.2 in), Y travel 2,000 mm (78.7 in), and the table measures 1,200 x 2,000 mm (47.2 x 78.7 in).
Because the table does not move, the machine needs no room for table overtravel. Vision Wide describes the GS as a box structural design suitable for limited working space, with the columns, bed and table combined in one piece casting. For a shop that wants a two-metre cross travel but cannot give up the floor length a moving-table machine sweeps, that is the argument for this layout.
A fixed table also means the axes carry the same mass whatever the part weighs. Table load is given per area, 3,000 kg/m2, not as a total.
The GS is a high-speed machine. A direct-driven spindle at 15,000rpm is standard, with 15 / 18.5 kW (20.1 / 24.8 hp). Cutting feed is 1-24,000 mm/min, and rapids are 24 / 24 / 24 m/min, or 30 / 30 / 24 m/min as an option. This is the shortest GS; the GS-1620 has 1,600 mm (63.0 in) of X on the same Y.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 1,200 x 2,000 mm (47.2 x 78.7 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power Cont 30 Min | L：15 / 18.5 kW (20.1 / 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 24 m/min; 30 / 30 / 24 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Fixed-table gantry layout described by the maker as suitable for limited working space
- 15,000rpm direct-driven spindle as standard
- Cutting feed up to 24,000 mm/min
- XYZ axis linear scale feedback is standard
- Columns, bed and table in one piece casting
Limitations
- X travel of 1,200 mm (47.2 in) is the shortest in the GS series
- Spindle power is 15 / 18.5 kW (20.1 / 24.8 hp)
- Standard magazine is a 20T tool magazine; 32 tools is an option
Best For
Frequently Asked Questions
01
A gantry type CNC machining center. Vision Wide describes a one-piece design of work table and columns, so the workpiece stays fixed while the axes move over it. Travels are 1,200 mm (47.2 in) in X and 2,000 mm (78.7 in) in Y.
02
The table lists 3,000 kg/m2, a load per square metre of table. The table measures 1,200 x 2,000 mm (47.2 x 78.7 in). The maker gives no total load figure.
03
Rapid traverse is 24 / 24 / 24 m/min as standard and 30 / 30 / 24 m/min as an option. Cutting feed is 1-24,000 mm/min, and the spindle runs to 15,000 rpm.
04
The row reads 800 / 1,000 mm (31.5 / 39.4 in) (Opt.): 800 mm as standard, with 1,000 mm available as an option. Y travel is 2,000 mm (78.7 in).
