Vision Wide Vertical Machining Centers (VMC)

Vision Wide MS-2620

Q: How much does the Vision Wide MS-2620 cost?

The price estimate for the Vision Wide MS-2620 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-2620#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

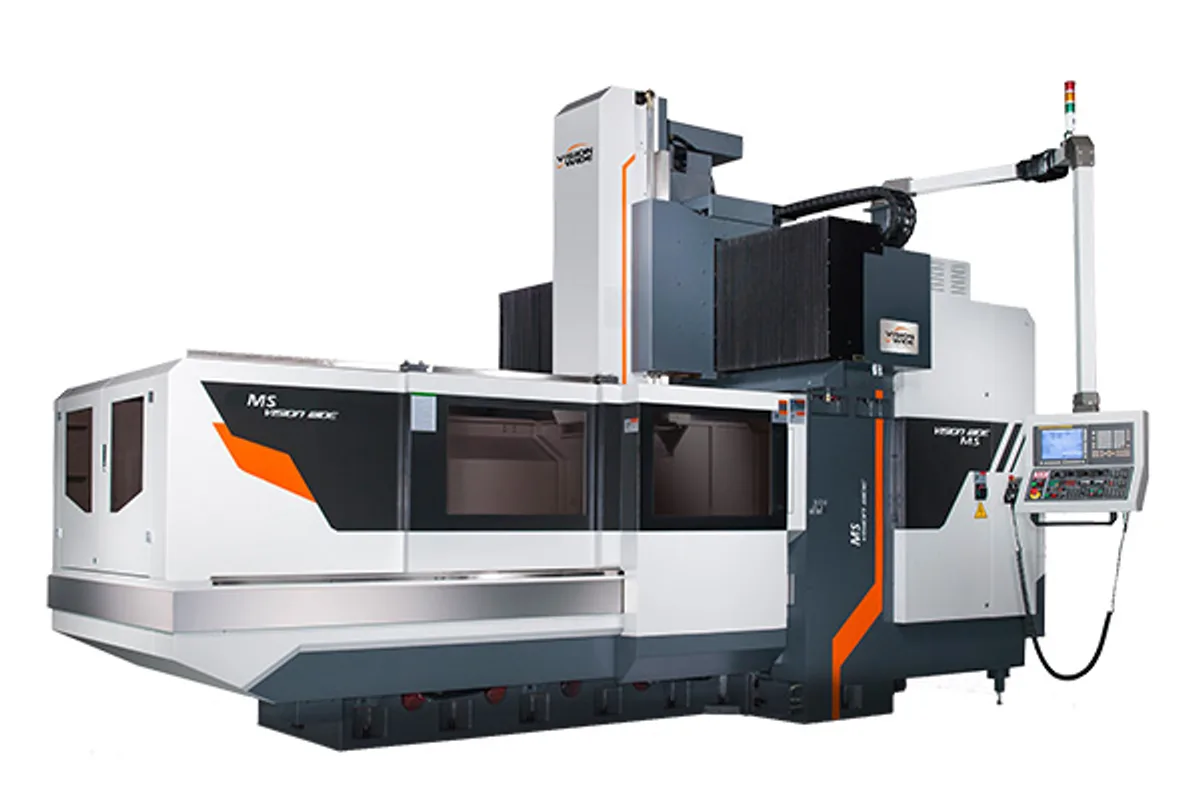

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,500x1,800 mm (98.4x70.9 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

2,000 mm (78.7 in)

z axis travel box way

800 /1,020 mm (31.5 /40.2 in) (Opt.)

z axis travel linear way

800 /1,000 mm (31.5 /39.4 in) (Opt.)

max table load

9,000 kg (19,841 lb)

How much does the Vision Wide MS-2620 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-2620 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Z axis of the Vision Wide MS-2620 is balanced by twin hydraulic cylinders with a pressured nitrogen accumulator. Vision Wide says the arrangement gives smooth and accurate feeding, that the Z-axis can reach 0.5G acceleration, and that it keeps a holding position at power failure.

Each part of that statement has a use. A counterbalanced head asks the Z motor only to move it, not to carry it, so small corrections in the cut are quick and even. An acceleration of 0.5G is brisk for a head carrying a geared spindle, and it shortens every retract and plunge in a pocketing or drilling cycle. Holding position when the power goes out protects the part and the tool: the head does not drop onto the work.

The machine those features sit on has 2,600 mm (102.4 in) of X travel, 2,000 mm (78.7 in) of Y and a 2,500x1,800 mm (98.4x70.9 in) table for 9,000 kg (19,841 lb). Z travel is 800 mm, and Z rapid is 15 m/min.

The spindle is the 6,000rpm 2-step gear type with 18.5/22 kW (24.8/29.5 hp). X and Y rapid at 24 m/min. A tool magazine is optional, as on every MS.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	2,000 mm (78.7 in)
Z Axis Travel Box Way	800 /1,020 mm (31.5 /40.2 in) (Opt.)
Z Axis Travel Linear Way	800 /1,000 mm (31.5 /39.4 in) (Opt.)
Table Size	2,500x1,800 mm (98.4x70.9 in)
Max Table Load	9,000 kg (19,841 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Spindle Speed Linear Way Direct Driven	10,000 rpm(Opt.)/ 12,000 rpm(Opt.)
Spindle Speed Linear Way Built in	10,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	XY：24 m/min / Z：15 m/min
Tool Capacity Vertical Tool Change	32/40 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Z-axis acceleration of 0.5G, per the maker
Twin hydraulic cylinders with nitrogen accumulator balance the head
Z axis holds position at power failure
2,500x1,800 mm (98.4x70.9 in) table for 9,000 kg (19,841 lb)

Limitations

Z rapid of 15 m/min, slower than the 24 m/min of X and Y
Standard Z travel is 800 mm
Tool magazine is an option

Best For

Pocketing and drilling cycles with many Z moves Mold bases up to 9,000 kg (19,841 lb) Shops concerned about head drop on power loss

Frequently Asked Questions

01 How is the Z axis balanced on the Vision Wide MS-2620?

By twin hydraulic cylinders plus a pressured nitrogen accumulator. Vision Wide states that the Z-axis can reach 0.5G acceleration and keep a holding position at power failure.

02 What are the MS-2620 travels and table?

X 2,600 mm (102.4 in), Y 2,000 mm (78.7 in), Z 800 mm as standard. The table is 2,500x1,800 mm (98.4x70.9 in) with a 9,000 kg (19,841 lb) load.

03 What are the feeds on the MS-2620?

Rapid traverse is 24 m/min in X and Y and 15 m/min in Z. Cutting feed is 1-10,000 mm/min. The Z axis is hydraulically counterbalanced.

04 Which machining center matches the MS-2620?

The SF-2620 has the same specification table: 2,600 mm (102.4 in) by 2,000 mm (78.7 in) travels and a 9,000 kg (19,841 lb) table. The MS-2620 is the milling machine version, with the magazine as an option.
