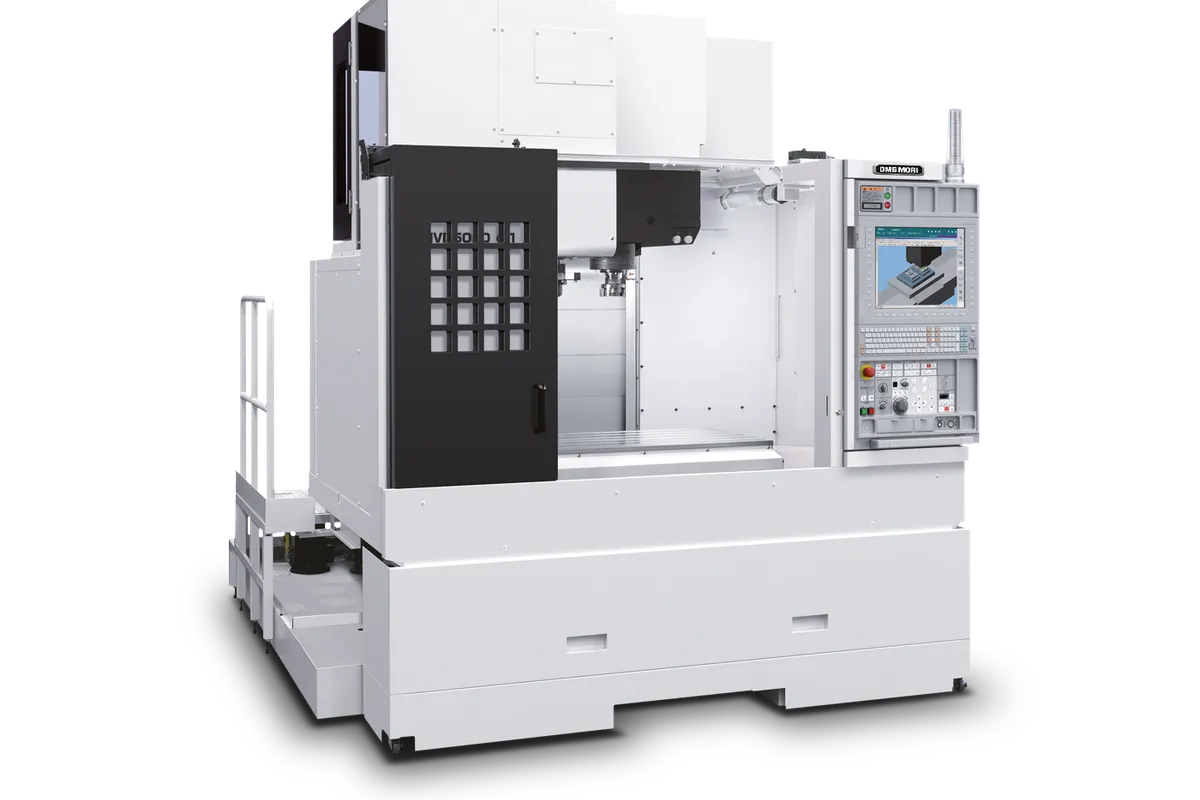

DMG Mori NVD 5000 DCG

$195,000 - $265,000 Updated 2026-03-19

Key Specifications

X Travel

1,020 mm (40.2 in)

Y Travel

510 mm (20.1 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (15,000 RPM optional)

Spindle Taper

BT 40

Tool Capacity

30 (arm-type ATC); 40, 60 optional

Overview

The DMG Mori NVD 5000 DCG applies DCG (Driven at Center of Gravity) technology to a large-travel vertical machining center platform with 1,020 x 510 x 510 mm (40.2 x 20.1 x 20.1 in) of travel. The NVD 5000 DCG designation (formerly NVD 5000 alpha 1A) delivers the accuracy advantages of DCG drive alignment across a significantly larger work envelope than the NVD 6000 DCG, making it suitable for medium-to-large precision parts.

The DCG drive system positions ball screw forces at the center of gravity of each axis, eliminating pitch moment and reducing vibration at its source rather than trying to damp it after the fact. This translates to positioning accuracy around +/-0.002 mm and excellent surface finish quality, particularly at the high feed rates demanded by production environments.

The spindle is a BT 40 turning 12,000 RPM with 11 kW (14.7 hp) continuous, with a 15,000 RPM option available for high-speed aluminum and finishing applications. Rapid traverse hits 50 m/min (1,969 ipm), keeping non-productive time to a minimum during positioning moves. The generous 1,020 mm X-travel opens up workpiece possibilities that smaller NVD models cannot accommodate.

The table supports workpieces up to 1,320 mm (52 in) long, 600 mm (23.6 in) wide, and 510 mm (20.1 in) tall, with a maximum table load of 1,200 kg (2,646 lb). The 30-tool arm-type ATC handles tool changes in approximately 1.5 seconds chip-to-chip. The machine runs on a FANUC 0i-MF Plus control with MAPPS interface and includes direct scale feedback on all three axes as standard.

New NVD 5000 DCG machines price between $195,000 and $265,000 depending on spindle and tooling options. The machine competes with the Okuma MB-56V, Makino a61nx, and other accuracy-focused production VMCs with large work envelopes. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,020 mm (40.2 in)
Y-Axis Travel	510 mm (20.1 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	12,000 RPM (15,000 RPM optional)
Spindle Taper	BT 40
Spindle Motor Power	11 kW (14.7 hp) continuous
Tool Capacity	30 (arm-type ATC); 40, 60 optional
Max Workpiece Length	1,320 mm (52 in)
Max Workpiece Width	600 mm (23.6 in)
Max Workpiece Height	510 mm (20.1 in)
Max Table Load	1,200 kg (2,646 lb)
Rapid Traverse Rate	50 m/min (1,969 ipm)
Chip To Chip	1.5 sec
CNC Control	FANUC 0i-MF Plus / MAPPS
Guide Type	Linear roller guides with DCG drive
Positioning Accuracy	+/-0.002 mm (+/-0.00008 in)
Repeatability	+/-0.001 mm (+/-0.00004 in)
Scale Feedback	Direct scale feedback (X, Y, Z)
1020 Mm	40.2 in.
510 Mm	20.1 in.
1200 Kg	2645.5 lbs.
1320 Mm	52 in.
600 Mm	23.6 in.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

DCG drive technology delivers +/-0.002 mm accuracy across a large 1,020 mm X-travel envelope that smaller DCG models cannot match
1,200 kg table load capacity handles medium-to-large workpieces without sacrificing the precision benefits of DCG kinematics
50 m/min rapids are 20-40% faster than most VMCs in this class, significantly reducing non-productive positioning time
Direct scale feedback on all three axes as standard provides closed-loop positioning without the cost of optional upgrades
30-tool standard ATC with 60-tool option supports complex multi-operation parts without mid-run manual tool loading
DCG vibration reduction extends tool life and improves surface finish compared to conventional drive configurations

Limitations

11 kW continuous spindle power is conservative for a machine this size — shops doing aggressive roughing in steel may need to manage depths of cut
DCG technology adds a significant cost premium versus conventional VMCs with similar travel and spindle specifications
BT 40 taper limits rigidity compared to BT 50 alternatives for heavy-duty face milling and large-diameter boring operations
Larger footprint and weight than the NVD 6000 DCG means more floor space and foundation requirements

Best For

Precision production shops machining medium-to-large parts where +/-0.002 mm accuracy eliminates secondary grinding or finishing operations Mold and die manufacturers working on larger mold plates where DCG vibration reduction directly improves surface quality Aerospace component shops machining aluminum structural parts where 1,020 mm X-travel covers full panel widths Automotive production cells running tight-tolerance housings, brackets, and plates that benefit from DCG accuracy at production speeds Medical device manufacturers machining larger surgical instrument assemblies and implant plates from stainless and titanium

Frequently Asked Questions

01 What does a new DMG Mori NVD 5000 DCG cost?

New NVD 5000 DCG machines start around $195,000. With the 15,000 RPM spindle, expanded tool magazine, through-spindle coolant, and probing, expect $230,000-$265,000. The larger travel compared to the NVD 6000 DCG commands a modest premium.

02 NVD 5000 DCG vs NVD 6000 DCG — what is the difference?

The NVD 5000 DCG has significantly more X-travel (1,020 vs 600 mm) and a higher table load (1,200 vs 500 kg), making it suitable for larger parts. Both share the same DCG drive technology, spindle options, and accuracy class. Choose the 5000 for larger workpieces and the 6000 for a more compact footprint on smaller parts.

03 Does the NVD 5000 DCG include scale feedback?

Yes. Direct scale feedback on all three axes is standard equipment. This provides closed-loop position verification independent of ball screw accuracy, which is critical for maintaining the +/-0.002 mm positioning accuracy that the DCG drive system makes possible.

04 Can the NVD 5000 DCG run with automation?

Yes. The machine supports robotic loading through its wide door opening and has automation-ready M-code interfaces. The 1,200 kg table load and 30-tool ATC make it practical for lights-out production on medium-sized parts. Several integrators offer plug-and-play robot cells for the NVD series.
