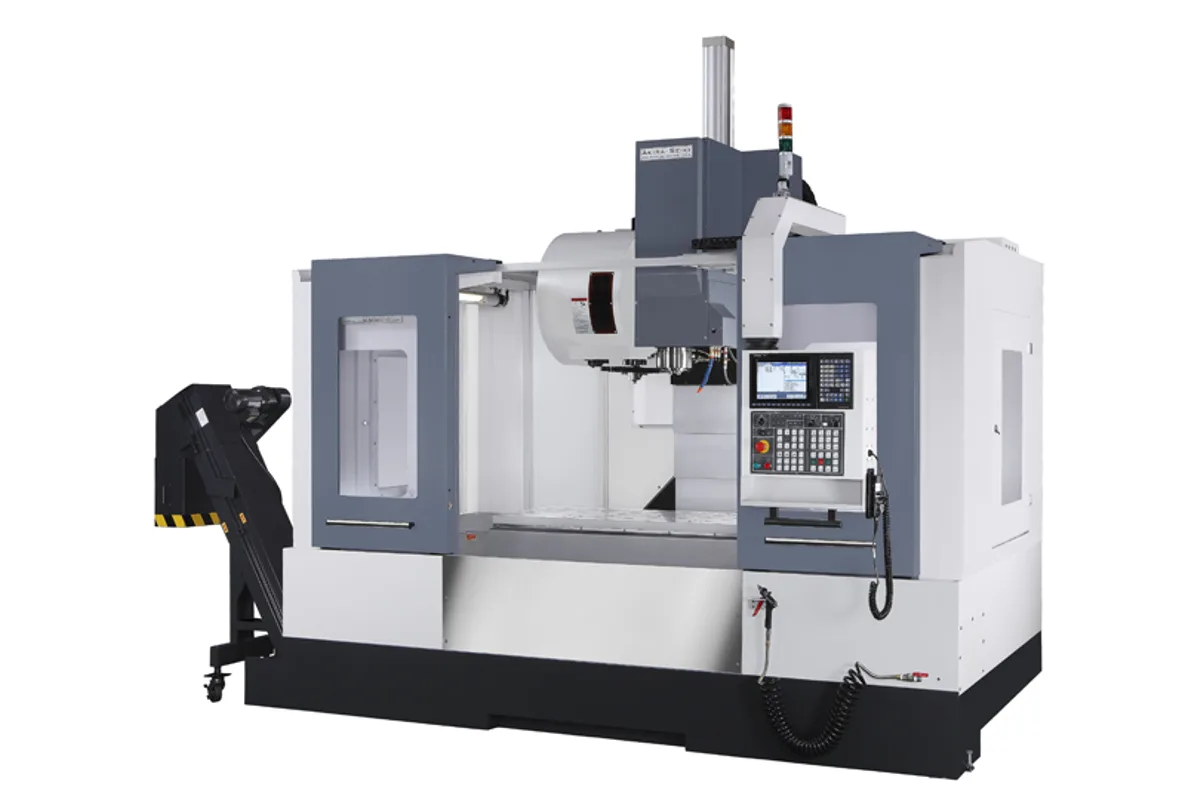

Akira Seiki SV1150
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SV1150 cost?
Price estimate
We do not have a price for the Akira Seiki SV1150 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki SV1150 brings the SV spindle to the wide-saddle frame. Y travel is 640 mm (25 in) and Z is 660 mm (26 in), with 1,150 mm (45.3 in) of X and a 1,300 x 600 mm (51.1 x 23.6 in) table. At 8,000 kg (17,637 lb) it is a solid machine for its travels.
Mould and die shops are the obvious users. A 600 mm deep table takes a mould base square to the axes, the spindle nose clears the table by 100~760 mm (4~30 in), and the 15,000 rpm, 42 HP (31.3 kW) peak spindle can rough and then finish in one setup. The taper is listed as BT40 / CAT40 on this model.
The heavier saddle shows in the rapid feed. It is 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) here, where the SV1050 reaches 48 / 48 / 36 m/min (1,890 / 1,890 / 1,417 ipm). Cutting feed, 15 / 15 / 10 m/min (591 / 591 / 394 ipm), is unchanged.
The magazine holds 36T and changes in 1.9 s. Standard table loading is 1,300 kg (2,866 lb), maximum 1,560 kg (3,439 lb). Installation needs 3,900 x 2,495 mm (154 x 98 in), 35 kVA and 0.5 MPa (72.5 psi) air. A chain type chip conveyor is listed.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 |
| X Axis Travel | 1,150 mm (45.3 in) |
| Y Axis Travel | 640 mm (25 in) |
| Z Axis Travel | 660 mm (26 in) |
| Distance Spindle Nose to Table | 100~760 mm (4~30 in) |
| Spindle Center to Column Cover | 640 mm (25 in) |
| Table Size | 1,300 x 600 mm (51.1 x 23.6 in) |
| T-Slots | 18 mm x 100 mm pitch x 5 slots |
| Max Table Load | 1,560 kg (3,439 lb) |
| Standard Table Load | 1,300 kg (2,866 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT40 / CAT40 |
| Spindle Cooling | Oil chilling |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Cutting Feed Rate | 15 / 15 / 10 m/min (591 / 591 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 36T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15.4 lb) |
| Tool Change Time | 1.9 s |
| Coolant Tank Capacity | 350 L (92.5 gal) |
| Chip Disposal | Chain Type Chip Conveyor |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 3,900 x 2,495 mm (154 x 98 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 640 mm (25 in) of Y and 660 mm (26 in) of Z travel with a 15,000 rpm spindle
- 42 HP (31.3 kW) peak, oil chilled
- Spindle taper listed as BT40 / CAT40
- Table rated to 1,560 kg (3,439 lb) maximum
Limitations
- Rapids of 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm), slower than the SV1050
- 8,000 kg (17,637 lb) to move and level
- 350 L (92.5 gal) coolant tank on a mould-size machine
- Tool length limited to 250 mm (9.8 in)
Best For
Frequently Asked Questions
01
Width and height. The SV1150 has 640 mm (25 in) of Y and 660 mm (26 in) of Z; the SV1050 has 540 mm (21.3 in) and 560 mm (22 in). The SV1150 is also heavier at 8,000 kg (17,637 lb) and its rapids are lower.
02
The taper row for this model reads BT40 / CAT40. Maximum speed is 15,000 rpm and peak power 42 HP (31.3 kW), with oil chilling of the spindle.
03
Rapid feed is 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) and cutting feed 15 / 15 / 10 m/min (591 / 591 / 394 ipm) in X / Y / Z. The tool change takes 1.9 s.
04
Both list the same travels and table. The V4.5XP offers 30 HP (22.4 kW) or 35 HP (26.1 kW) peak at up to 12,000 rpm with 28T, while the SV1150 has 42 HP (31.3 kW) at 15,000 rpm with 36T.
