Vision Wide HF-5040 / HF-5047

Q: How much does the Vision Wide HF-5040 / HF-5047 cost?

The price estimate for the Vision Wide HF-5040 / HF-5047 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-5040-hf-5047#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

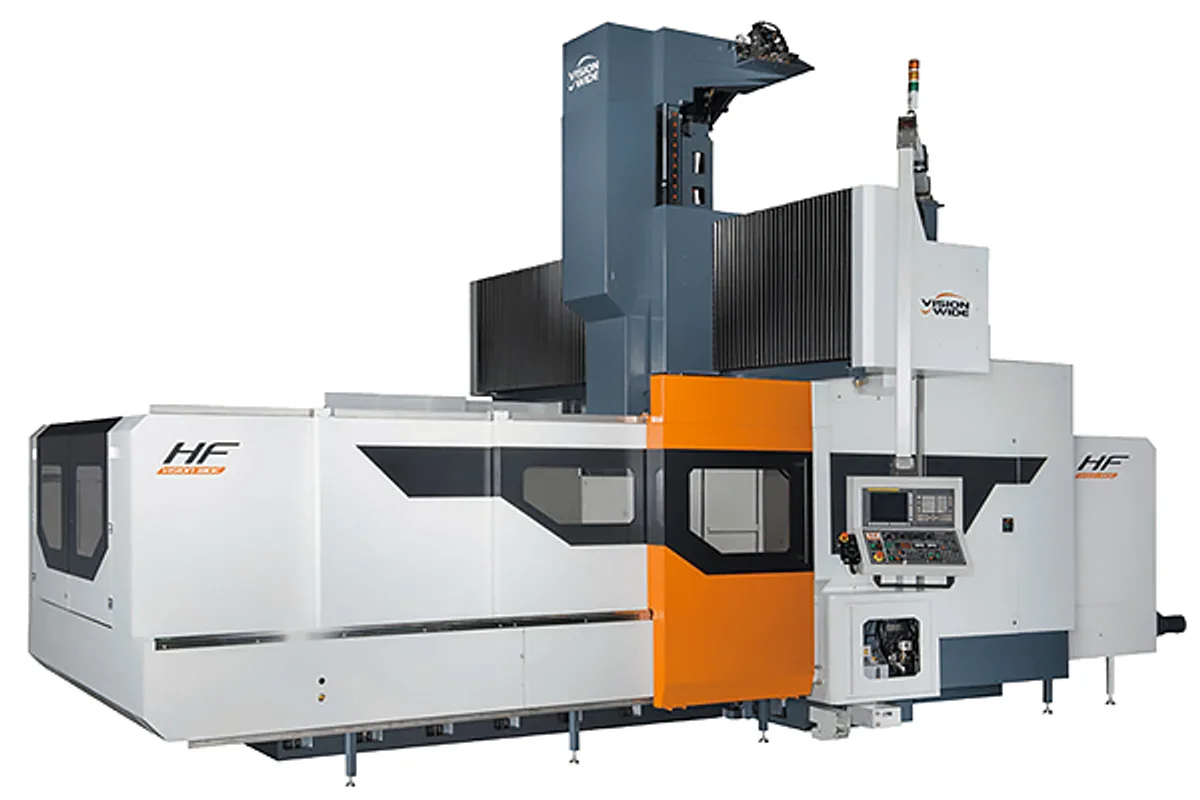

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

5,000×3,500 mm (196.9×137.8 in)

x axis travel

5,100 mm (200.8 in)

y axis travel

4,000/ 4,700 mm (157.5/ 185.0 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

24,000 kg (52,910 lb)

How much does the Vision Wide HF-5040 / HF-5047 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-5040 / HF-5047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide HF-5040 / HF-5047 has a 5,000×3,500 mm (196.9×137.8 in) table, 5,100 mm (200.8 in) of X travel and 4,000 mm (157.5 in) or 4,700 mm (185.0 in) of Y. It carries 24,000 kg (52,910 lb).

Power is where the HF separates from the lighter Vision Wide bridge machines. The standard motor is 22/26 kW (29.5/34.9 hp), continuous and short-time. One option is listed above it, 30/37 kW (40.2/49.6 hp). There is no smaller motor in the HF table.

How that power reaches the cut depends on the spindle. Through the standard box way 2-step gear spindle at 4,000 rpm, it is delivered as torque at low speed, the right form for face mills of large diameter and for boring. Through the optional 6,000 rpm gear spindle the range shifts upward. The optional direct-driven spindle, 10,000 rpm in the table, gives up the gearbox entirely and belongs on a machine set up for finishing.

Vision Wide publishes no torque figure for the HF spindles. On a machine sold for heavy cutting, that is the number to request, for each gear range.

X/Y rapid is 10 m/min and cutting feed 1-7,000 mm/min.

Full Specifications

Parameter	Value
X Axis Travel	5,100 mm (200.8 in)
Y Axis Travel	4,000/ 4,700 mm (157.5/ 185.0 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	5,000×3,500 mm (196.9×137.8 in)
Max Table Load	24,000 kg (52,910 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	10 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

22/26 kW (29.5/34.9 hp) standard motor with a 30/37 kW (40.2/49.6 hp) option
5,000×3,500 mm (196.9×137.8 in) table
24,000 kg (52,910 lb) table load
Gear spindles at 4,000 rpm or 6,000 rpm, or a 10,000 rpm direct-driven option

Limitations

No spindle torque figure is published
Direct-driven spindle requires the linear way or enclosed box ram head
X/Y rapid of 10 m/min and feed capped at 7,000 mm/min

Best For

Heavy face milling and boring on wide parts Castings and weldments up to 24,000 kg (52,910 lb) Parts up to 3,500 mm (137.8 in) wide on the table

Frequently Asked Questions

01 What motor power does the Vision Wide HF-5040 have?

22/26 kW (29.5/34.9 hp) is the standard rating and 30/37 kW (40.2/49.6 hp) is optional. The two figures in each pair are the continuous and short-time ratings.

02 Does Vision Wide publish spindle torque for the HF-5040 / HF-5047?

No. The table gives spindle power and speeds of 4,000 rpm, 6,000 rpm and 10,000 rpm for the different spindles, but no torque. Request the torque curve for the spindle and gear range being quoted.

03 What are the HF-5040 table and travels?

Table: 5,000×3,500 mm (196.9×137.8 in). X travel: 5,100 mm (200.8 in). Y travel: 4,000 mm (157.5 in) on the HF-5040 and 4,700 mm (185.0 in) on the HF-5047.

04 How does the HF-5040 compare with the HF-5035?

The HF-5035 has a 5,000×3,000 mm (196.9×118.1 in) table and 3,500 mm (137.8 in) of Y travel. The HF-5040 has a 5,000×3,500 mm (196.9×137.8 in) table and 4,000 mm (157.5 in) of Y. Both carry 24,000 kg (52,910 lb).
