HNK HPF-30H (30x60)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPF-30H (30x60) cost?
Price estimate
We do not have a price for the HNK HPF-30H (30x60) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPF-30H (30x60) spans 4,000 mm (157.5 in) between columns with a fixed crossrail and still uses the 380 x 380 mm (15.0 x 15.0 in) ram of the smaller sizes. Its table is 3,000 x 6,000 mm (118.1 x 236.2 in).
This is a point of difference inside HNK's own range. The moving-crossrail HPM-30H and the multi-purpose HPF-30M both step up to a 400 x 400 mm (15.7 x 15.7 in) ram at three metres of width. The HPF-H does not. Its ram, Ø100 mm (3.9 in) spindle and 22/25 kW (29.5/33.5 hp), cont/30min, motor are constant from the 15H to the 40H.
For the intended work that is consistent. A three-metre-wide LCD chamber plate or mold plate is no harder to cut than a narrow one. It is simply larger, and what matters is covering the whole area at 6,000 rpm. Y travel is 5,000 mm (196.9 in) and X 6,250 mm (246.1 in).
Table load is 25,000 kg (55,115 lb). Daylight is at most 1,000 mm (39.4 in), with 800 mm (31.5 in) of ram travel. The spindle taper is ISO No.50. Controls are Fanuc 31i-B and Siemens 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 4,000 mm (157.5 in) |
| Distance Spindle Nose to Table | 1,000 mm (39.4 in) |
| X Axis Travel | 6,250 mm (246.1 in) |
| Y Axis Travel | 5,000 mm (196.9 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Table Size | 3,000 x 6,000 mm (118.1 x 236.2 in) |
| Max Table Load | 25,000 kg (55,115 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 380 x 380 mm (15.0 x 15.0 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 x 6,000 mm (118.1 x 236.2 in) table with 5,000 mm (196.9 in) of Y
- 4,000 mm (157.5 in) between columns
- 6,000 rpm ISO No.50 spindle
- 25,000 kg (55,115 lb) table load
Limitations
- Ram stays 380 x 380 mm, where the HPF-30M has 400 x 400 mm (15.7 x 15.7 in)
- Maximum daylight of 1,000 mm (39.4 in)
- 22/25 kW motor on a four-metre span
Best For
Frequently Asked Questions
01
380 x 380 mm (15.0 x 15.0 in), with 800 mm (31.5 in) of travel. That is the same ram as every other HPF-H size. The HPM-30H and HPF-30M list a 400 x 400 mm (15.7 x 15.7 in) ram.
02
25,000 kg (55,115 lb) on a 3,000 x 6,000 mm (118.1 x 236.2 in) table. The multi-purpose HPF-30M with the same table is rated at 40,000 kg (88,183 lb).
03
X is 6,250 mm (246.1 in) and Y is 5,000 mm (196.9 in). The effective distance between columns is 4,000 mm (157.5 in).
04
Yes. The HPF-30H (30x80) has a 3,000 x 8,000 mm (118.1 x 315.0 in) table and 8,250 mm (324.8 in) of X travel, with the same load, spindle and daylight.
More from HNK
Other Vertical Machining Centers (VMC)
Vision Wide BM-4030 / 4037
Škoda Machine Tool WP

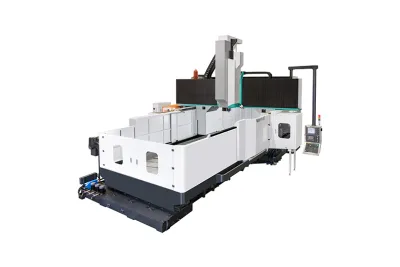

Feeler FDM-3228
