TRAK DPM RX3

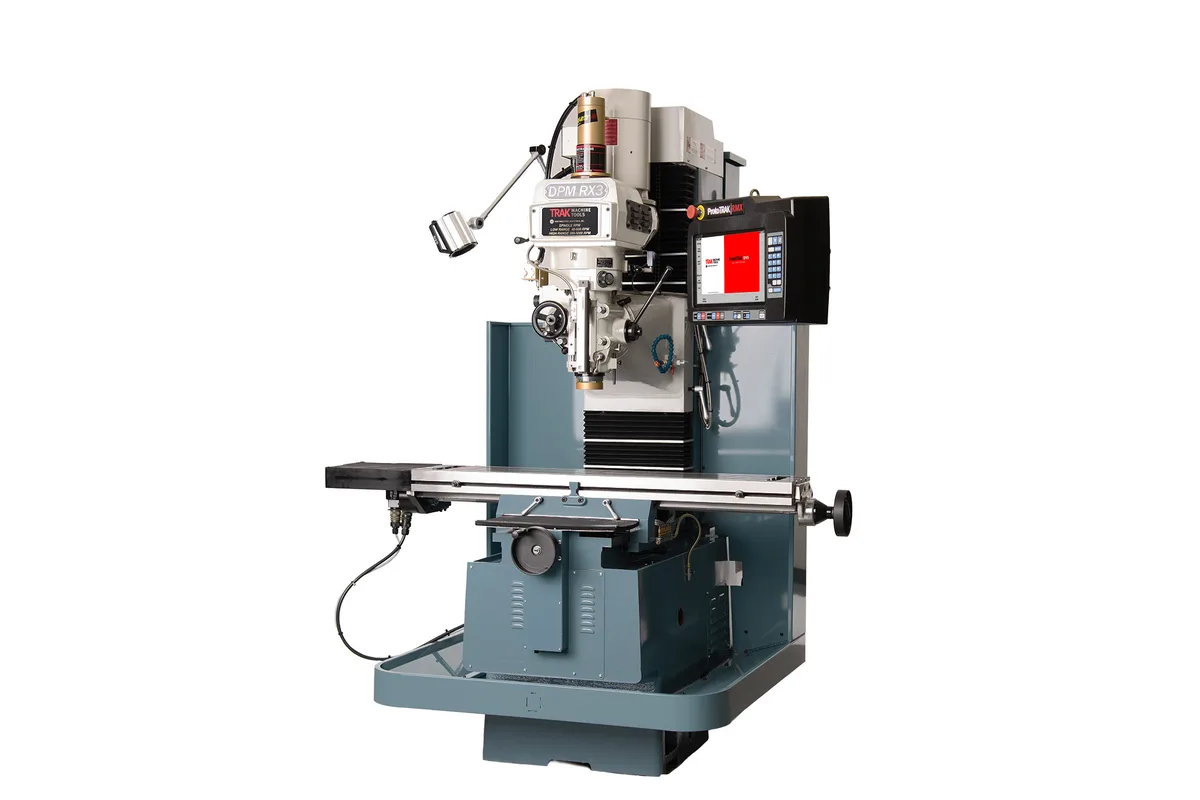

Image: southwesternindustries.com, TRAK Machine Tools
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
control
t slots
How much does the TRAK DPM RX3 cost?
Price estimate
We do not have a price for the TRAK DPM RX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TRAK DPM RX3 pairs a 40 Taper spindle and a 5 hp (3.7 kW) continuous motor with a 50 x 10 in (1,270 x 254 mm) table and the ProtoTRAK RMX CNC. Travels are 31.5 in (800 mm) in X, 17 in (432 mm) in Y and 25.5 in (648 mm) in Z, measured with way covers installed; travel with limit switches is approx. 1 in less on each axis.
Set beside the DPM RX2, the table barely changes. The spindle does: the DPM RX2 is an R8 machine with 3 hp (2.2 kW) continuous, on a 49 x 9 in (1,245 x 229 mm) table. TRAK's own capacity figures show the effect, with milling capacity on the DPM RX3 listed at 5 in³/min (82 cm³/min) and tapping at 1 - 8, alongside 1 in (25 mm) drilling.
Both spindle ranges, 40 - 600 rpm and 300 - 5,000 rpm, are the ones the DPM RX2 and DPM RX5 list as well. The quill is 3 15/16 in (100 mm) in diameter with 5 in (127 mm) of travel and feeds of 0.0015/0.003/0.006 in per spindle revolution, and the head swivels +/- 90° side to side. Throat depth, spindle center to column face, is 20.5 in (521 mm).
The heavier head costs weight, not table capacity. The DPM RX3 weighs 4,100 lbs net (1,860 kg) and carries 1,320 lbs (599 kg) on the table, the same load as the DPM RX2. For more, the DPM RX5 is rated 1,760 lbs (798 kg).
Rapids are 250 ipm (6.3 m/min) on all axes with mechanical handwheels, or 400 ipm (10.2 m/min) on X and Y with electronic handwheels. Supply is 200-240V three-phase at 26.6A. The base is 24 x 43.31 in (610 x 1,100 mm), yet the machine is 73.5 in (1,867 mm) wide including the table and needs 102.25 in (2,597 mm) with full table traverse. Height runs from 87.5 in (2,222 mm) to 100.5 in (2,553 mm).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | ProtoTRAK RMX CNC |
| Table Size | 50 x 10 in (1,270 x 254 mm) |
| T-Slots | 3 x .63 in x 2.48 in |
| X Axis Travel | 31.5 in (800 mm) |
| Y Axis Travel | 17 in (432 mm) |
| Z Axis Travel | 25.5 in (648 mm) |
| Travel Note | Travel with limit switches is approx. 1 in less on each axis; values are with way covers installed |
| Quill Diameter | 3 15/16 in (100 mm) |
| Max Quill Travel | 5 in (127 mm) |
| Spindle Taper | 40 Taper |
| Max Spindle Speed | 40 - 600, 300 - 5,000 rpm (low / high range) |
| Spindle Center to Column Face | 20.5 in (521 mm) |
| Head Swivel | +/- 90° side to side |
| Quill Feeds | 0.0015/0.003/0.006 in per spindle revolution |
| Spindle Motor Power | 5 hp (3.7 kW) continuous |
| Power Requirement | 200-240V, 3P, 26.6A |
| Max Table Load | 1,320 lbs (599 kg) |
| Distance Spindle Nose to Table | 25.81 in (656 mm) max. |
| Machine Height | 87.5 in (2,222 mm) min.; 100.5 in (2,553 mm) max. |
| Machine Dimensions | 73.5 in (1,867 mm) wide incl. table x 76.63 in (1,946 mm) long (electrical door closed); 102.25 in (2,597 mm) wide with full table traverse |
| Floor Space Required | 24 x 43.31 in (610 x 1,100 mm) (base footprint) |
| Machine Weight | 4,100 lbs net (1,860 kg); 4,400 lbs shipping |
| Rapid Traverse Xyz | Mechanical handwheels: 250 ipm (6.3 m/min) on X, Y and Z; electronic handwheels: 400 ipm (10.2 m/min) on X and Y, 250 ipm (6.3 m/min) on Z |
| Coolant Capacity | 10 gal (38 L) |
| Drilling Capacity | 1 in (25 mm) diameter |
| Milling Capacity | 5 in³/min (82 cm³/min) |
| Tapping Capacity | 1 - 8 |
Specifications sourced from southwesternindustries.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 40 Taper spindle with 5 hp (3.7 kW) continuous, against R8 and 3 hp (2.2 kW) on the DPM RX2
- 25.5 in (648 mm) of Z travel and up to 25.81 in (656 mm) from spindle nose to table
- Milling capacity listed at 5 in³/min (82 cm³/min) and tapping at 1 - 8
- 20.5 in (521 mm) from spindle center to column face
- Quill of 3 15/16 in (100 mm) diameter with 5 in (127 mm) of travel, on a head that swivels +/- 90° side to side
Limitations
- Table load is 1,320 lbs (599 kg), no higher than the DPM RX2; the DPM RX5 carries 1,760 lbs (798 kg)
- Spindle speed stops at 5,000 rpm, and reaching it means running in the 300 - 5,000 rpm high range
- Z rapid is 250 ipm (6.3 m/min) whichever handwheels are fitted
- A 10 in (254 mm) wide table under 17 in (432 mm) of Y travel
- Draws 26.6A at 200-240V three-phase
Best For
Frequently Asked Questions
01
Mainly the spindle. The DPM RX2 has an R8 spindle and 3 hp (2.2 kW) continuous, a 49 x 9 in (1,245 x 229 mm) table and weighs 3,200 lbs net (1,452 kg). The DPM RX3 has a 40 Taper spindle and 5 hp (3.7 kW) continuous, a 50 x 10 in (1,270 x 254 mm) table and weighs 4,100 lbs net (1,860 kg). Both carry 1,320 lbs (599 kg) on the table.
02
Z travel is 25.5 in (648 mm) and the maximum distance from spindle nose to table is 25.81 in (656 mm). The quill adds 5 in (127 mm) of its own travel. Travel with limit switches is approx. 1 in less on each axis.
03
Two ranges: 40 - 600 rpm in low and 300 - 5,000 rpm in high. The motor is rated 5 hp (3.7 kW) continuous and the spindle is 40 Taper. Quill feeds are 0.0015/0.003/0.006 in per spindle revolution.
04
Base footprint is 24 x 43.31 in (610 x 1,100 mm). The machine is 73.5 in (1,867 mm) wide including the table and 76.63 in (1,946 mm) long with the electrical door closed, or 102.25 in (2,597 mm) wide with full table traverse. It weighs 4,100 lbs net (1,860 kg) and 4,400 lbs shipping.
05
200-240V three-phase at 26.6A. The coolant tank holds 10 gal (38 L). Machine height is 87.5 in (2,222 mm) at minimum and 100.5 in (2,553 mm) at maximum, which is the figure to check against the ceiling.
