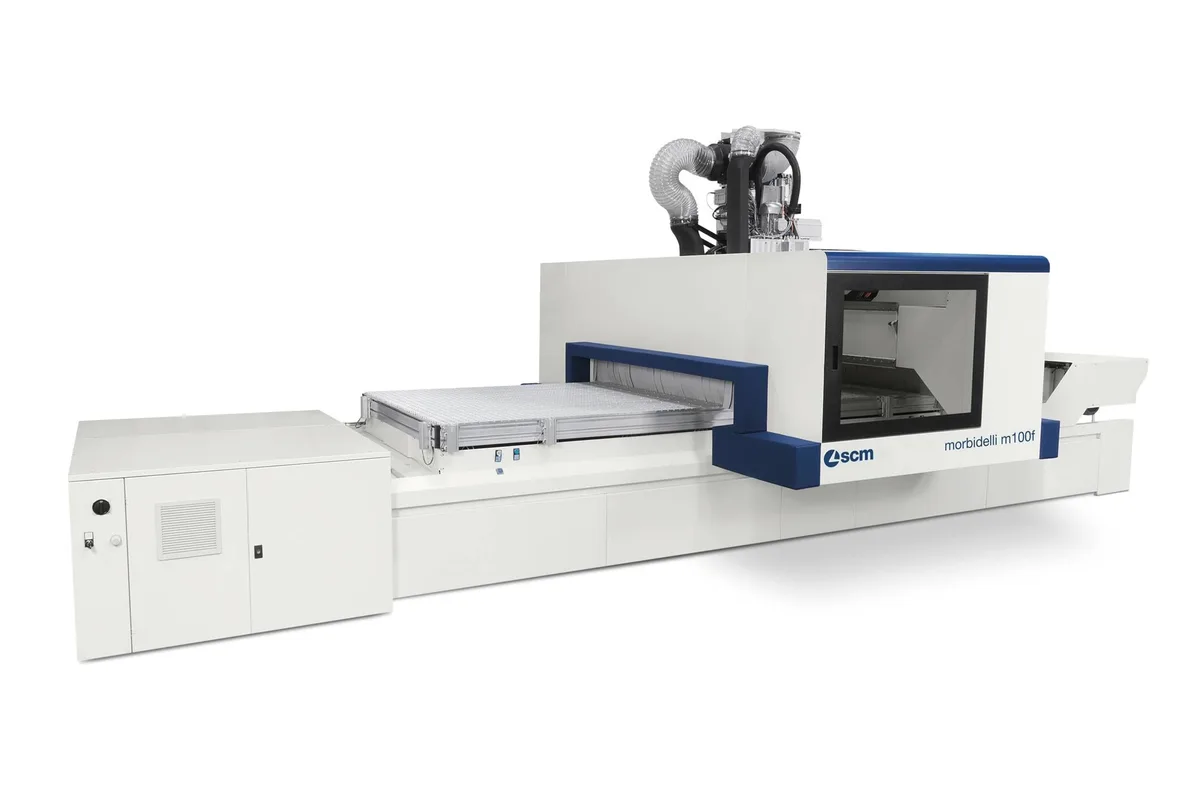

SCM Morbidelli M100/200F
Image: scmgroup.com, SCM
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
working areas xy m100 f
working areas xy m200 f
working area x
How much does the SCM Morbidelli M100/200F cost?
Price estimate
We do not have a price for the SCM Morbidelli M100/200F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli M100/200F is the flat-table edition of the brand's modular machining center. In place of bars and pods it has an aluminium multi-function work table, which SCM says keeps its planarity over time and is also suited to nesting. Sheets are laid on the table and cut into parts in one program.
Two columns appear in the table, m100 f and m200 f. They share the routing unit of up to 15 kW (20.5 hp) at 24000 rpm and the drilling unit, and differ in clearance and tool count. Z axis panel passage is 180 mm (7.1 in) on the m100 f and 250 mm (9.8 in) on the m200 f. The changer holds up to 44 places on the first and 60 places on the second.
For a nesting buyer the working areas deserve a careful look. The longest X is 5,510 mm (216.9 in), but Y is 1320 mm or 1620 mm only, and the m200 f is not offered in the narrower depth. Check your usual sheet width against these figures before anything else; the Morbidelli X200/X400 lists wider tables such as 4356x2216 mm.
The head can carry up to four machining units. Listed alongside the main spindle are a drilling unit with up to 21 independent vertical and 12 independent horizontal spindles, an integrated blade in X of 125 mm (4.9 in), a 0-90° blade unit of up to 2.2 kW (3 hp) and an auxiliary routing unit of up to 4.5 kW (6 hp). Vectorial speed in X-Y is 56 m/min in ProSpace and 78 m/min in ProSpeed.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy M100 F | 3110x1320 mm / 3710x1320 mm / 5510x1320 mm / 3110x1620 mm / 3710x1620 mm / 5510x1620 mm |
| Working Areas Xy M200 F | 3110x1620 mm / 3710x1620 mm / 5510x1620 mm |
| Working Area X | 3,110 mm (122.4 in), 3,710 mm (146.1 in), 5,510 mm (216.9 in) |
| Vectorial Speed Xy | 56 m/min (ProSpace) / 78 m/min (ProSpeed) |
| Z Axis Panel Passage | 180 mm (7.1 in) (m100 f); 250 mm (9.8 in) (m200 f) |
| Spindle Motor Power | 15 kW (20.5 hp) max. |
| Max Spindle Speed | 24000 rpm |
| Tool Capacity | 44 places max. (m100 f); 60 places max. (m200 f) |
| Drilling Vertical Spindles | 21 independent vertical spindles max. |
| Drilling Horizontal Spindles | 12 independent horizontal spindles max. |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
| Blade Unit 0 90 Power | 2.2 kW (3 hp) max. (0-90° blade unit) |
| Blade Unit 0 90 Speed | 6000 rpm max. |
| Auxiliary Routing Unit Power | 4.5 kW (6 hp) max. |
| Auxiliary Routing Unit Speed | 18000 rpm max. |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Aluminium multi-function work table suited to nesting as well as fixtured parts
- Up to four machining units on the head, with a routing unit of up to 15 kW (20.5 hp)
- Drilling unit with up to 21 independent vertical and 12 independent horizontal spindles at 8000 rpm
- FAST14 tool changer takes less than 15” for the tool change, according to SCM
Limitations
- Y is 1320 mm or 1620 mm only, narrow for some sheet formats
- The m100 f is limited to a 180 mm (7.1 in) panel passage and 44 places on the tool changer
- ProSpace vectorial speed is 56 m/min, well under the 127 m/min listed for the Morbidelli M600/800F
Best For
Frequently Asked Questions
01
The table of figures is the same. This version has the aluminium multi-function work table, which SCM describes as designed to maintain planarity over time and ideal also for nesting machining. The Morbidelli M100/200 page describes the TV FLEXMATIC bar work table instead.
02
For the m100 f: 3110x1320 mm, 3710x1320 mm, 5510x1320 mm, 3110x1620 mm, 3710x1620 mm and 5510x1620 mm. For the m200 f: 3110x1620 mm, 3710x1620 mm and 5510x1620 mm.
03
The Z axis panel passage is 180 mm (7.1 in) on the m100 f and 250 mm (9.8 in) on the m200 f. The tool changer holds up to 44 places on the m100 f and up to 60 places on the m200 f.
04
SCM states the unit can accommodate up to four machining units. The table lists the routing unit of up to 15 kW (20.5 hp), the drilling unit, a 0-90° blade unit of up to 2.2 kW (3 hp) at 6000 rpm and an auxiliary routing unit of up to 4.5 kW (6 hp) at 18000 rpm.
