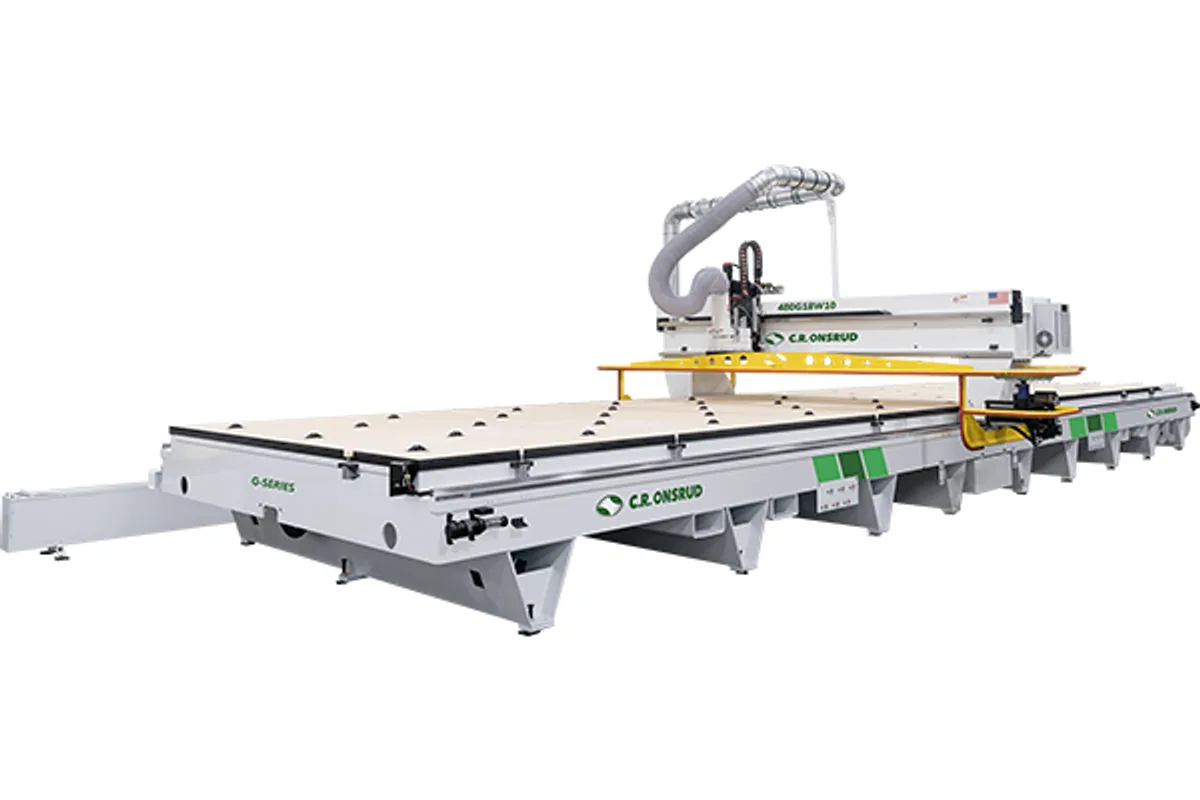

Onsrud 480GW10
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table size x
table size y
machine length
How much does the Onsrud 480GW10 cost?
Price estimate
We do not have a price for the Onsrud 480GW10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Forty feet of table on a ten-foot bridge: the Onsrud 480GW10 measures 480 in (12,192 mm) in X by 120 in (3,048 mm) in Y and carries 11 vacuum zones as standard. Among the 3-axis G-Series models in Onsrud's table, only the 480GW12 is larger, and only in width.
Unusually, this code appears under three Z-strokes: 11 in (279 mm), 28 in (711 mm) and 40 in (1,016 mm). The 18 in stroke is missing because Onsrud lists that version separately as the 468GW10, with a shorter table. With 11 in of Z the machine is 590 in (14,986 mm) long and 103 in (2,617 mm) high. With either of the taller strokes it grows to 602 in (15,291 mm) and stands 167 in (4,242 mm) high. Width is 200 in (5,080 mm) throughout.
That range of strokes makes the 480GW10 two different machines. The low version is a sheet line for long, wide panels. The 40 in version can pass over tall blocks, stacked material and deep fixtures. Onsrud states that the 40 in stroke is available on the Wide G-Series, and this is one of the codes that carries it.
The standard head does not change: 18 hp (13.4 kW), 24,000 rpm, 12 tools. On a forty-foot bed a second tool changer and a second gantry, both listed upgrades, deserve a serious look.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size X | 480 in (12,192 mm) |
| Table Size Y | 120 in (3,048 mm) |
| Machine Length | 590 in (14,986 mm) with 11 in Z; 602 in (15,291 mm) with 28 in Z; 602 in (15,291 mm) with 40 in Z |
| Machine Width | 200 in (5,080 mm) |
| Machine Height | 103 in (2,617 mm) with 11 in Z; 167 in (4,242 mm) with 28 in Z; 167 in (4,242 mm) with 40 in Z |
| Vacuum Zones Standard | 11 |
| Spindle Motor Power | 18 hp (13.4 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12 (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm); 28 in (711 mm); 40 in (1,016 mm) |
| Spindle Power Optional | 24 hp (17.9 kW) |
| Spindles Optional | Up to 4 |
| Dual Gantry | Optional |
| Second Tool Changer | Optional |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 480 in (12,192 mm) by 120 in (3,048 mm) table with 11 vacuum zones
- Three Z-strokes listed, up to 40 in (1,016 mm)
- Dual gantry and second tool changer offered
- Width of 200 in (5,080 mm) is unchanged across all three strokes
Limitations
- Machine length of 590 in (14,986 mm), or 602 in (15,291 mm) with the taller strokes
- Height of 167 in (4,242 mm) with 28 in or 40 in of Z
- The 18 in version is a separate code, the 468GW10, with a shorter table
Best For
Frequently Asked Questions
01
11 in (279 mm), 28 in (711 mm) and 40 in (1,016 mm). The table size is 480 in (12,192 mm) by 120 in (3,048 mm) for all three. An 18 in stroke at this size is listed as the 468GW10.
02
The machine is 103 in (2,617 mm) high with the 11 in Z-stroke and 167 in (4,242 mm) high with the 28 in or 40 in stroke. Those are machine figures only. Ducting, cranes and service access come on top.
03
11 as standard, the highest count in the series' table together with the 480GW12. Sections of the bed can be held or released separately, which suits loading one end while the gantry works at the other.
04
590 in (14,986 mm) by 200 in (5,080 mm) with the 11 in Z-stroke, and 602 in (15,291 mm) by 200 in (5,080 mm) with the taller strokes. That is close to fifty feet of machine before any loading equipment.
