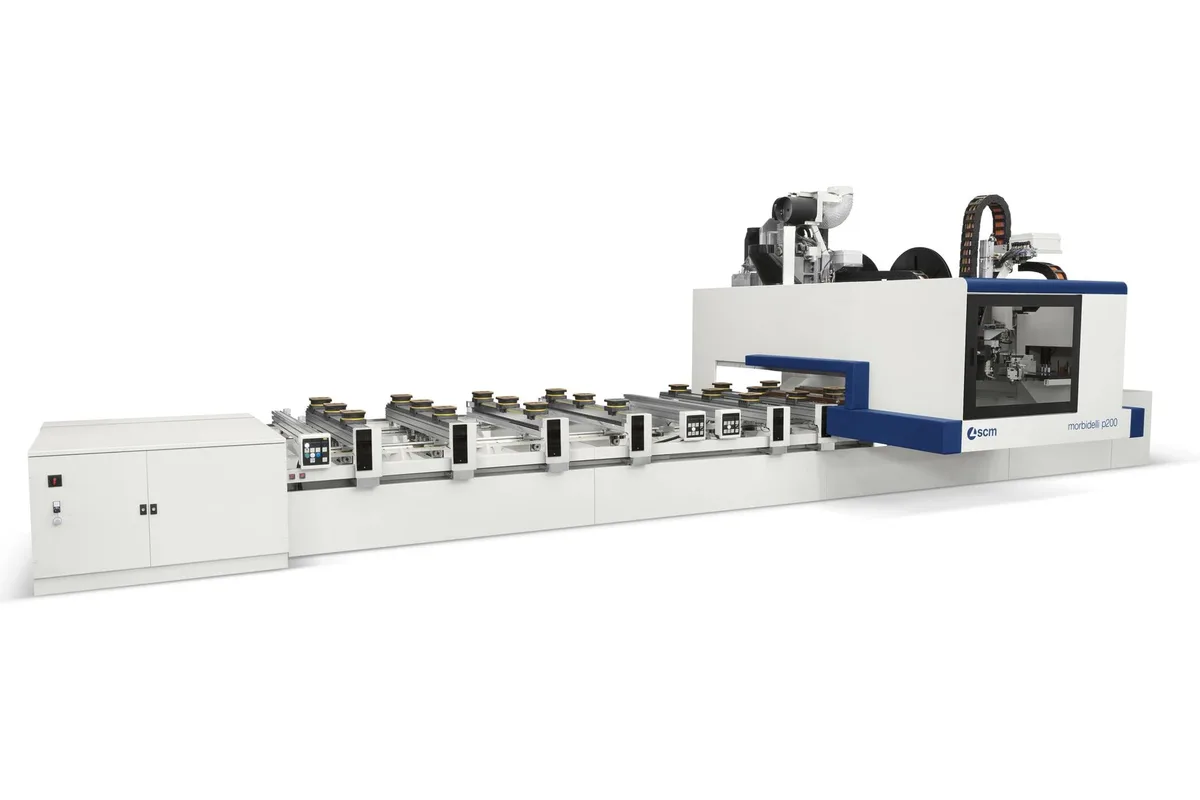

SCM Morbidelli P200
Image: scmgroup.com, SCM
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
working areas xy
working area x
working area y
How much does the SCM Morbidelli P200 cost?
Price estimate
We do not have a price for the SCM Morbidelli P200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli P200 is a bar-table machining center that drills, routes and then edgebands the part it has just shaped. Its edgebanding unit applies edges from 16 to 85 mm high and from 0.4 to 3 mm thick, which covers thin decorative tapes as well as thick protective edges on worktops and doors.
Curved panels are where a machine like this earns its place. A straight-line edgebander cannot follow an arc; here the routing unit cuts the contour and the edge is applied along the same path in the same clamping. SCM also fits what it calls HE-PODs, which lift work pieces so that several parts can be machined from a single positioning.
The routing unit is listed at up to 15 kW (20.5 hp) and 24000 rpm with up to 60 places on the tool changer. Drilling is done by up to 21 independent vertical and 12 independent horizontal spindles at 8000 rpm, with an integrated blade in X of 125 mm (4.9 in) for grooves.
Three working areas are listed: 3110x1620 mm, 3710x1620 mm and 5510x1620 mm. SCM offers the Pro-Space solution here too, with no perimetral protections around the work table. For larger volumes SCM lists the Morbidelli P800 with an X working area of 5,020-6,360 mm (197.6-250.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy | 3110x1620 mm / 3710x1620 mm / 5510x1620 mm |
| Working Area X | 3,110 mm (122.4 in), 3,710 mm (146.1 in), 5,510 mm (216.9 in) |
| Working Area Y | 1,620 mm (63.8 in) |
| Spindle Motor Power | 15 kW (20.5 hp) max. |
| Max Spindle Speed | 24000 rpm |
| Tool Capacity | 60 places max. (available tools on tool changer) |
| Drilling Vertical Spindles | 21 independent vertical spindles max. |
| Drilling Horizontal Spindles | 12 independent horizontal spindles max. |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
| Edge Height | from 16 to 85 mm |
| Edge Thickness | from 0.4 to 3 mm |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Drilling, routing and edgebanding of shaped parts in a single clamping
- Edge heights from 16 to 85 mm and thicknesses from 0.4 to 3 mm
- HE-PODs lift work pieces so multiple parts are machined from one positioning
- Routing unit of up to 15 kW (20.5 hp) with up to 60 places on the tool changer
Limitations
- One Y depth of 1,620 mm (63.8 in) in all three working areas
- Axis speed and Z panel passage have to be confirmed with SCM for this model
- No edge storage capacity is listed, unlike the Morbidelli P800 with its coils storage capacity of 2÷12
Best For
Frequently Asked Questions
01
The edgebanding unit is listed for edge heights from 16 to 85 mm and edge thicknesses from 0.4 to 3 mm. SCM describes the machine as able to apply several typologies of edge and programs it with the Maestro edge software.
02
SCM describes them as a feature of the worktable that can lift work pieces, to make better use of the worktable dimensions and to machine multiple parts with a single positioning. SCM links them to fully automatic work cycles and fewer tool changes.
03
Three X-Y working areas are listed: 3110x1620 mm, 3710x1620 mm and 5510x1620 mm. The X length changes from 3,110 mm (122.4 in) to 5,510 mm (216.9 in) while Y stays the same.
04
The routing unit has up to 15 kW (20.5 hp) at 24000 rpm and the tool changer up to 60 places. The drilling unit carries up to 21 independent vertical and 12 independent horizontal spindles at 8000 rpm and an integrated blade in X of 125 mm (4.9 in).
