Pinnacle Vertical Machining Centers (VMC)

Pinnacle SV105

Q: How much does the Pinnacle SV105 cost?

The price estimate for the Pinnacle SV105 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-sv105#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

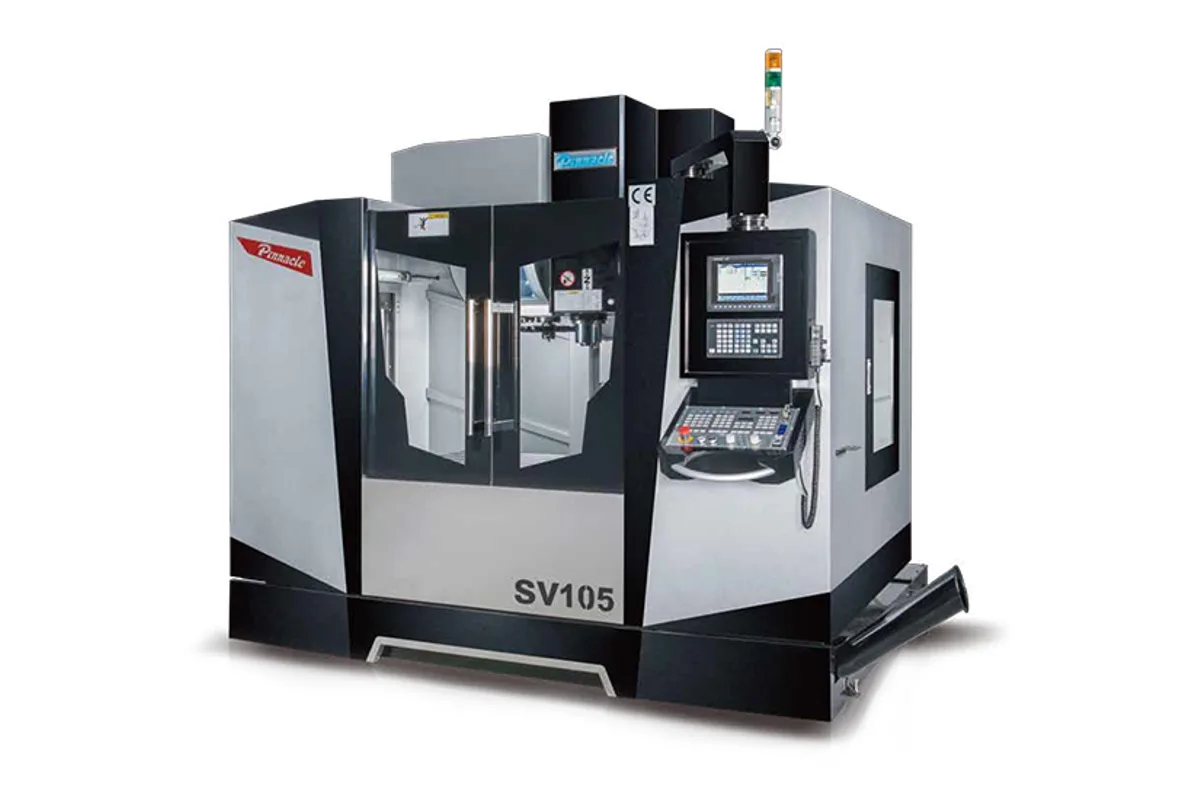

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,200 x 510 mm (47.2 x 20.1 in)

Spindle Power

7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min)

x axis travel

1,020 mm (40.2 in)

y axis travel

560 mm (22.0 in)

z axis travel

560 mm (22.0 in)

How much does the Pinnacle SV105 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle SV105 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle SV105 puts 1,020 mm (40.2 in) of X travel and a 7.5 / 11 kW (10.1 / 14.8 hp) spindle motor on hardened box ways. Y and Z are 560 mm (22.0 in), the taper is ISO40, and the table is 1,200 x 510 mm (47.2 x 20.1 in).

Compared with the SV85 the gain is twofold: more X and a larger motor. The motor is the more useful of the two on a box-way machine, since the structure can absorb cuts that the smaller motor of the SV85 cannot deliver. Supply rises to 25 kVA to match.

Slideways are hardened to over HRC55 with over 2 mm of depth, and the axes are driven by 36mm class C3 ball screws through flexible couplings. Rapid traverse in the table is 24 / 24 / 24 m/min and the cutting feed limit 10,000 mm/min.

A 24-tool disk magazine with random, bi-directional selection is listed, with a tool limit of Ø90 mm (Ø3.5 in) and 8 kg (18 lb). Pinnacle marks the arm-type ATC description, coolant through spindle and the chip conveyor as options on this page, so check what the quoted machine includes. Weight is 5,800 kg (12,787 lb); floor space 2,820 x 2,230 mm (111.0 x 87.8 in).

Full Specifications

Parameter	Value
Table Size	1,200 x 510 mm (47.2 x 20.1 in)
X Axis Travel	1,020 mm (40.2 in)
Y Axis Travel	560 mm (22.0 in)
Z Axis Travel	560 mm (22.0 in)
Max Table Load	600 kg (1,323 lb)
Distance Spindle Nose to Table	100 ~ 660 mm (3.9 ~ 26.0 in)
T-Slots	18 x 100 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	Ø60 mm (Ø2.4 in)
Spindle Center to Column	620 mm (24.4 in)
Spindle Speed Belt Drive	60 ~ 8,000(10,000/12,000) rpm
Spindle Speed Gear Drive	L40 ~ 2000, H2001 ~ 8000 rpm
Spindle Speed Direct Drive	10,000 / 12,000 / 15,000 rpm
Draw Bar Force	700 kgf
Spindle Motor Power	7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min)
Rapid Traverse Xyz	24 / 24 / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø90 mm (Ø3.5 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	8 kg (18 lb)
Air Requirement	6 kg/cm²
Power Requirement	25 kVA
Coolant Tank Capacity	200 L
Machine Weight	5,800 kg (12,787 lb)
Machine Height	2,750 mm (108.3 in)
Floor Space	2,820 x 2,230 mm (111.0 x 87.8 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

7.5 / 11 kW (10.1 / 14.8 hp) motor on a hardened box-way structure
1,020 mm (40.2 in) of X travel with a 1,200 x 510 mm (47.2 x 20.1 in) table
Spindle available belt, gear or direct-drive, the last at 10,000 / 12,000 / 15,000 rpm
36mm class C3 ball screws on all three axes

Limitations

600 kg (1,323 lb) table load is low for a 1,200 mm table
Y travel is 560 mm (22.0 in) only
25 kVA supply requirement, higher than the SV85

Best For

Heavier ISO40 cutting in steel on a mid-size table Long parts up to 1,020 mm (40.2 in) Shops that prefer sliding ways to linear guides

Frequently Asked Questions

01 What motor does the Pinnacle SV105 have?

The main motor is 7.5 / 11 kW (10.1 / 14.8 hp), continuous and 30 minute rating. The SV85 on the same page has 5.5 / 7.5 kW (7.4 / 10.1 hp). The SV105 needs 25 kVA where the SV85 needs 20 kVA.

02 How fast does the SV105 traverse?

The specification table gives 24 / 24 / 24 m/min for X, Y and Z and a cutting feed rate of 10,000 mm/min. The feature list at the top of the page prints 20/20/20 m/min, so confirm the figure for the machine quoted.

03 What are the SV105 travels?

X is 1,020 mm (40.2 in), Y is 560 mm (22.0 in) and Z is 560 mm (22.0 in). The spindle centre is 620 mm (24.4 in) from the column and the nose is 100 ~ 660 mm (3.9 ~ 26.0 in) above the table.

04 How heavy is the SV105?

5,800 kg (12,787 lb). It occupies 2,820 x 2,230 mm (111.0 x 87.8 in) of floor and stands 2,750 mm (108.3 in) high. The coolant tank holds 200 L and the air requirement is 6 kg/cm².
