Pinnacle Vertical Machining Centers (VMC)

Pinnacle SV85

Q: How much does the Pinnacle SV85 cost?

The price estimate for the Pinnacle SV85 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-sv85#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

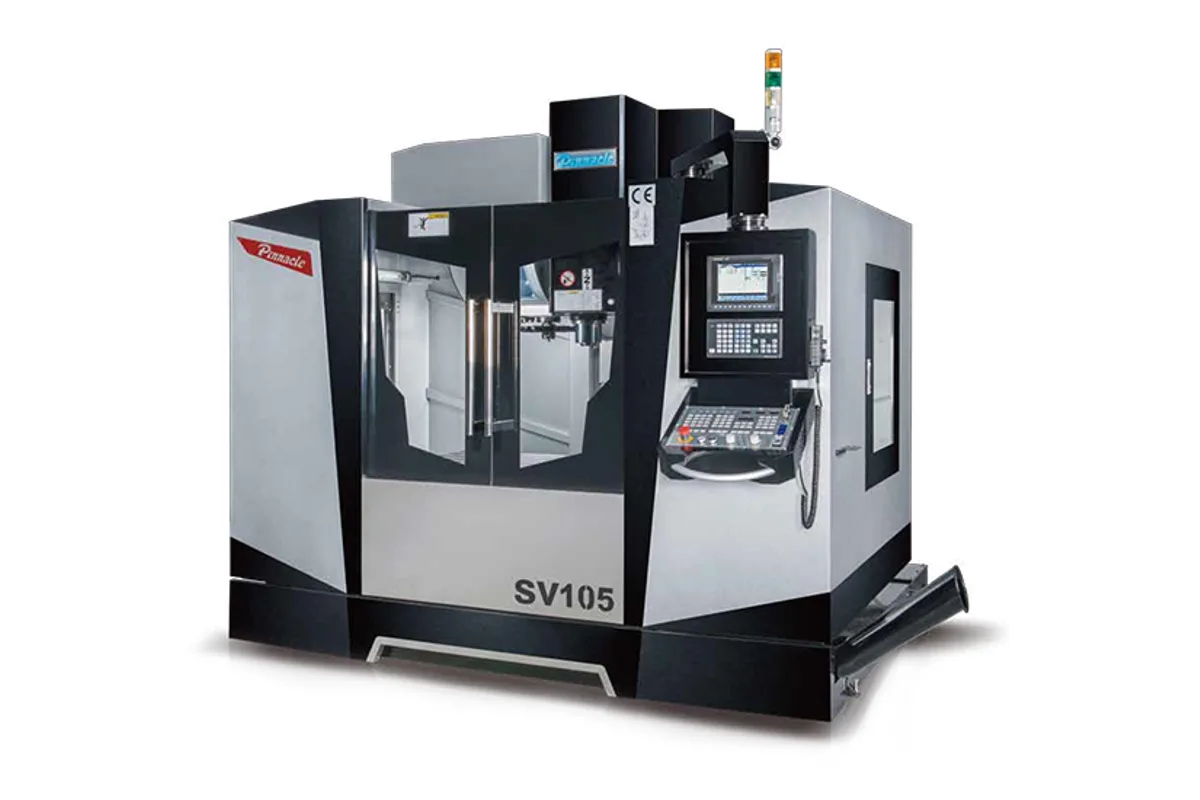

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,000 x 510 mm (39.4 x 20.1 in)

Spindle Power

5.5 / 7.5 kW (7.4 / 10.1 hp) (con/30 min)

x axis travel

850 mm (33.5 in)

y axis travel

560 mm (22.0 in)

z axis travel

560 mm (22.0 in)

How much does the Pinnacle SV85 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle SV85 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle SV85 is a box-way vertical machining center in the 850 mm class: 850 mm (33.5 in) of X travel and 560 mm (22.0 in) in both Y and Z. It is the hardened-slideway counterpart of the linear-way LV85, built for cutting load before traverse speed.

Pinnacle states that the way surfaces on all three axes are hardened to over HRC55 to a depth of over 2 mm. Sliding ways carry more contact area than rolling guides, which helps when an ISO40 spindle is pushed in steel. The trade shows in the rapids, 24 / 24 / 24 m/min in the table. The feature list on the same page prints 20/20/20 m/min, so the figure is worth confirming.

The spindle rows mirror the small LV machines: a 5.5 / 7.5 kW (7.4 / 10.1 hp) motor, 60 ~ 8,000(10,000/12,000) rpm with belt drive, and a gear head listed as L40 ~ 2000, H2001 ~ 8000 rpm. For box-way work the gear head is the one to look at, because the low range keeps the motor in its power band at face-mill speeds.

The 1,000 x 510 mm (39.4 x 20.1 in) table carries 600 kg (1,323 lb), and the disk magazine holds 24 tools up to Ø90 mm (Ø3.5 in), 250 mm (9.8 in) and 8 kg (18 lb). Machine weight is 5,600 kg (12,346 lb) with a 20 kVA supply.

Full Specifications

Parameter	Value
Table Size	1,000 x 510 mm (39.4 x 20.1 in)
X Axis Travel	850 mm (33.5 in)
Y Axis Travel	560 mm (22.0 in)
Z Axis Travel	560 mm (22.0 in)
Max Table Load	600 kg (1,323 lb)
Distance Spindle Nose to Table	100 ~ 660 mm (3.9 ~ 26.0 in)
T-Slots	18 x 100 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	Ø60 mm (Ø2.4 in)
Spindle Center to Column	620 mm (24.4 in)
Spindle Speed Belt Drive	60 ~ 8,000(10,000/12,000) rpm
Spindle Speed Gear Drive	L40 ~ 2000, H2001 ~ 8000 rpm
Spindle Speed Direct Drive	10,000 / 12,000 / 15,000 rpm
Draw Bar Force	700 kgf
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10.1 hp) (con/30 min)
Rapid Traverse Xyz	24 / 24 / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø90 mm (Ø3.5 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	8 kg (18 lb)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	200 L
Machine Weight	5,600 kg (12,346 lb)
Machine Height	2,750 mm (108.3 in)
Floor Space	2,600 x 2,230 mm (102.4 x 87.8 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Box ways on three axes, hardened to over HRC55 with over 2 mm depth
Gear-head spindle option with ranges of L40 ~ 2000, H2001 ~ 8000 rpm
24-tool disk magazine with tools up to 8 kg (18 lb)
Fits in 2,600 x 2,230 mm (102.4 x 87.8 in) with a 20 kVA supply

Limitations

5.5 / 7.5 kW (7.4 / 10.1 hp) motor limits how far the rigid ways can be used
Rapids of 24 / 24 / 24 m/min trail the 36 m/min of the linear-way LV85 in X and Y
The page's feature list and table disagree on the rapid traverse figure

Best For

Steel and cast iron parts within 850 mm (33.5 in) of X Interrupted cuts and face milling where damping matters Toolroom work on an ISO40 box-way machine

Frequently Asked Questions

01 Is the Pinnacle SV85 a box-way machine?

Yes. Pinnacle lists box ways on the X, Y and Z axes, with way surfaces hardened to over HRC55 and over 2 mm deep. Ball screws on this size are 36mm in diameter and class C3.

02 What is the difference between the SV85 and the LV85?

The guideways. Travels, table size, the ISO40 spindle and the 5.5 / 7.5 kW motor are the same in both tables. The SV85 runs on box ways at 24 / 24 / 24 m/min; the LV85 runs on linear guideways at 36 / 36 / 24 m/min and weighs 5,500 kg (12,125 lb) against 5,600 kg (12,346 lb).

03 What is the table capacity of the SV85?

The table is 1,000 x 510 mm (39.4 x 20.1 in) with a maximum load of 600 kg (1,323 lb). Spindle nose to table distance is 100 ~ 660 mm (3.9 ~ 26.0 in) and T-slots are listed as 18 x 100 x 5.

04 Which controls are listed for the SV85?

FANUC 0i-MF / 31i-MB, HEIDENHAIN TNC620 / TNC640, SIEMENS 828D / 840D and FAGOR 8055i Plus / 8060FL / 8060 appear on the page. Servo motors differ by control maker.
