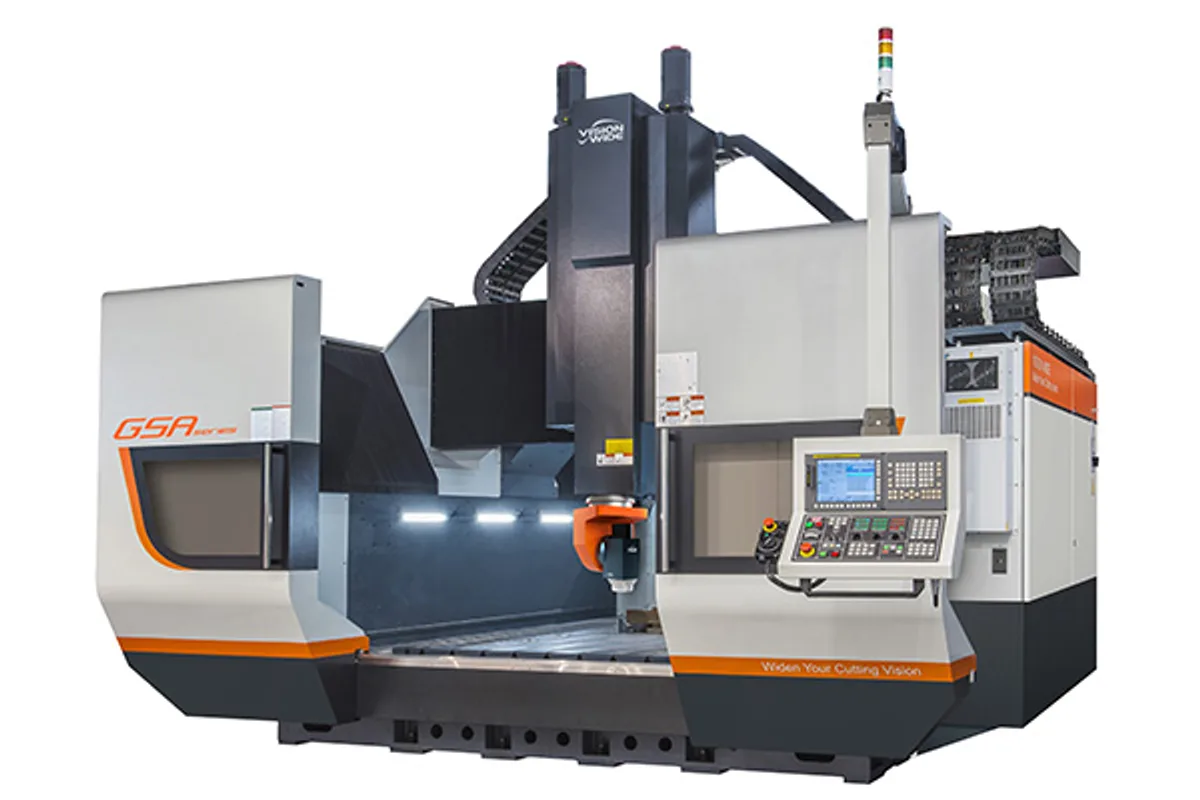

Vision Wide GSA-6032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-6032 cost?
Price estimate
We do not have a price for the Vision Wide GSA-6032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest GSA is the Vision Wide GSA-6032, a 3+2 axis gantry with 6,000 mm (236.2 in) of X travel, 3,200 mm (126.0 in) of Y and a 6,000×3,200 mm (236.2×126.0 in) fixed table.
One figure a buyer would expect is missing from this page on purpose. Vision Wide's GSA table prints a single table load, in kilograms, for all eleven models, from the smallest table to this one. A figure that does not change between tables so different in area cannot be read as a total for each, and the maker's other gantry tables state load per square metre. Until Vision Wide confirms the rating for this table, plan part weight with the maker, not from the page.
The travels, spindle and feeds are clear. Z is 1,000 mm, or 1,200 mm as an option. The indexing head carries a 15,000 rpm spindle rated 50/65 kW (67.1/87.2 hp). Rapid traverse is 32/32/20 m/min and cutting feed 1~20,000 mm/min.
At six metres the X screws are supported, both are driven, and each side has its own linear scale. That is the standard build, as is the HEIDENHAIN TNC640. The six-metre GSF-6032 has the same travels with a continuous five-axis head.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 6,000×3,200 mm (236.2×126.0 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest GSA envelope: 6,000 mm (236.2 in) by 3,200 mm (126.0 in)
- 6,000×3,200 mm (236.2×126.0 in) fixed table
- Dual-driven X axis with dual linear scales and ball screw support
- 50/65 kW (67.1/87.2 hp), 15,000 rpm indexing head
Limitations
- Table load for this size is not clear from the maker's table
- Z travel of 1,000 mm, or 1,200 mm optional, is modest for the plan area
- 3+2 axis indexing only; continuous five-axis needs the GSF-6032
Best For
Frequently Asked Questions
01
The GSA-6032, with 6,000 mm (236.2 in) of X travel, 3,200 mm (126.0 in) of Y and a 6,000×3,200 mm (236.2×126.0 in) table. Z travel is 1,000/1,200 mm (39.4/47.2 in)(Opt.).
02
The page does not settle it. The GSA table prints the same load figure in kilograms for every model regardless of table size, so the value for this table should be confirmed with Vision Wide before planning heavy work.
03
Both have 6,000 mm (236.2 in) of X and 3,200 mm (126.0 in) of Y. The GSA-6032 has an indexing head for 3+2 axis work; the GSF-6032 is the continuous five-axis version with direct-driven B and C axes.
04
Cutting feed is 1~20,000 mm/min. Rapid traverse is 32/32/20 m/min for X/Y/Z, the same as on the shortest GSA, the GSA-1627.
