Pinnacle DV1722

Q: How much does the Pinnacle DV1722 cost?

The price estimate for the Pinnacle DV1722 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1722#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

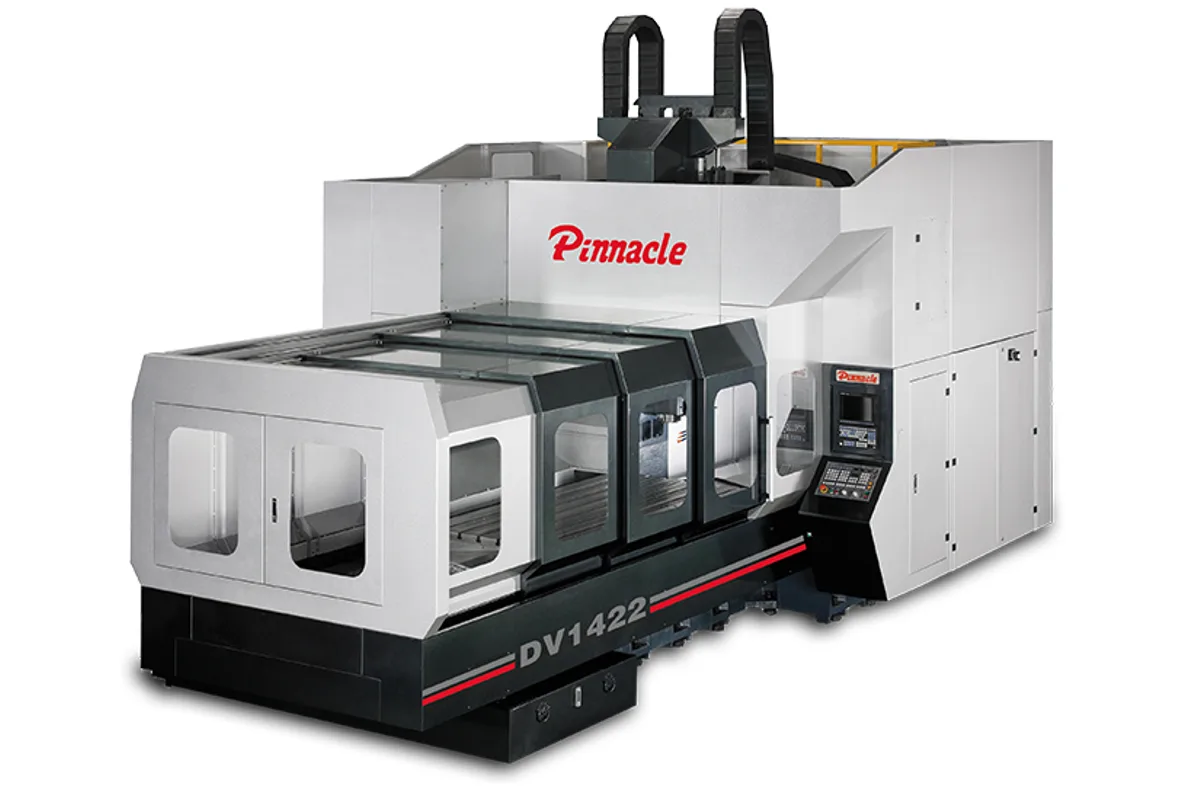

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

2,200 x 1,500 mm (86.6 x 59.1 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

2,200 mm (86.6 in)

y axis travel

1,700 mm (66.9 in)

How much does the Pinnacle DV1722 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1722 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1722 is where the DV range widens: 1,700 mm (66.9 in) of Y travel, columns 1,900 mm (74.8 in) apart and a 2,200 x 1,500 mm (86.6 x 59.1 in) table, on the same 2,200 mm (86.6 in) of X as the DV1422.

The wider bridge is a much heavier machine. Pinnacle lists 21,000 kg (46,296 lb), against 16,000 kg (35,273 lb) for the DV1422, and the floor space goes from the 6,090 x 4,150 mm (239.8 x 163.4 in) of the DV1422 to 6,090 x 5,300 mm (239.8 x 208.7 in). The table gets nine T-slots (22 x 150 x 9) and an 8,000 kg/m2 rating.

Column spacing is the figure to read carefully. At 1,900 mm (74.8 in) it exceeds the Y travel by a clear margin, so a part wider than the 1,500 mm (59.1 in) table can pass between the columns even where the spindle cannot reach its edges.

Y rapid drops to 16 m/min on this wider machine, giving 16/16/20 m/min. The spindle is unchanged: ISO50 through a gear box, 8,000 rpm in the table, 15/18.5 kW (20.1/24.8 hp), 1,800 kgf draw bar. Spindle centre to column is 404 mm (15.9 in), and the nose travels 160~1,060 mm (6.3~41.7 in) above the table.

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	1,700 mm (66.9 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	160~1,060 mm (6.3~41.7 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	2,200 x 1,500 mm (86.6 x 59.1 in)
T-Slots	22 x 150 x 9 (W D x N mm )
Max Table Load	8,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	16/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	21,000 kg (46,296 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	6,090 x 5,300 mm (239.8 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,700 mm (66.9 in) of Y with 1,900 mm (74.8 in) between the columns
2,200 x 1,500 mm (86.6 x 59.1 in) table rated at 8,000 kg/m2
21,000 kg (46,296 lb) of machine behind a 15/18.5 kW (20.1/24.8 hp) spindle
Spindle nose range of 160~1,060 mm (6.3~41.7 in) with 900 mm (35.4 in) of Z

Limitations

X and Y rapids are both 16 m/min
Floor space grows to 6,090 x 5,300 mm (239.8 x 208.7 in)
X travel is 2,200 mm (86.6 in); longer work needs the DV1732 or DV1742
Spindle power is the same 15/18.5 kW (20.1/24.8 hp) as on the lighter DV1422

Best For

Plates and die blocks up to 2,200 x 1,500 mm (86.6 x 59.1 in) Parts that need 1,700 mm (66.9 in) of Y travel Heavy castings on an 8,000 kg/m2 table

Frequently Asked Questions

01 How wide a part fits in the Pinnacle DV1722?

The distance between the columns is 1,900 mm (74.8 in). Y travel is 1,700 mm (66.9 in) and the table is 2,200 x 1,500 mm (86.6 x 59.1 in), so the spindle covers the full table width with travel to spare on each side.

02 What does the DV1722 weigh?

21,000 kg (46,296 lb). For comparison the DV1422, with the same X travel and a narrower bridge, is listed at 16,000 kg (35,273 lb). Machine height is 4,500 mm (177.2 in) and floor space is 6,090 x 5,300 mm (239.8 x 208.7 in).

03 Is the DV1722 spindle gear driven?

Yes. Pinnacle states that the spindle is driven through a gear box, with all gears and bearings oil-bath lubricated, and lists a gear head and spindle oil cooler as standard accessories. The table gives 8,000 rpm and a 15/18.5 kW (20.1/24.8 hp) motor; the feature text mentions a 10 to 6,000 rpm range.

04 What are the rapid and feed rates of the DV1722?

Rapid feed is 16/16/20 m/min on X, Y and Z and the cutting feed rate is 10,000 mm/min. The narrower DV1422 is listed at 16/20/20 m/min, so the wider bridge gives up some Y rapid.
