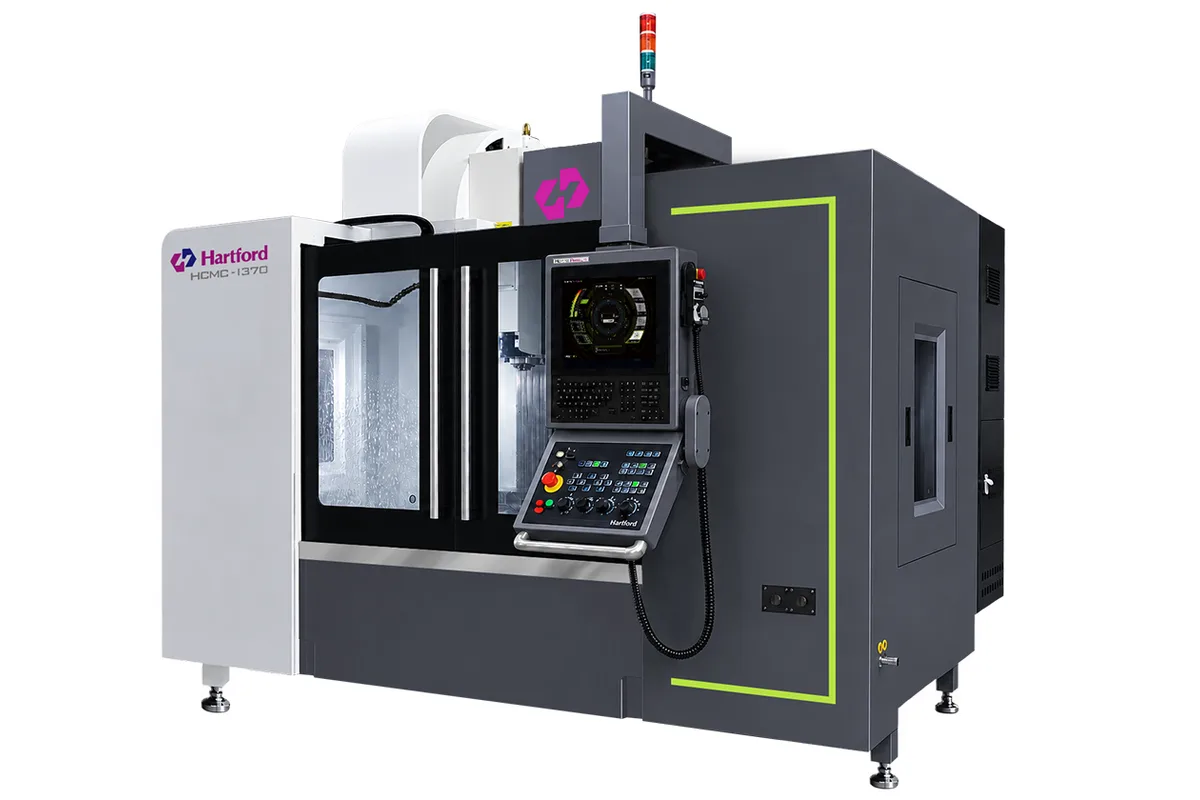

Hartford HCMC-1370
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HCMC-1370 cost?
Price estimate
We do not have a price for the Hartford HCMC-1370 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford HCMC-1370 is where the HCMC box-guideway line becomes a pure 50-taper family. It has 1,300 mm (51.2 in) of X travel, 700 mm (27.6 in) of Y and 660 mm (26.0 in) of Z, and its spindle nose is listed as #50 only.
Three changes mark the step from the smaller models. The gear-head spindle gains a low range, 4,000 / 6,000 / 8,000 rpm, where the HCMC-1365 lists 6,000 / 8,000 rpm. The motor list is extended upward: 7.5 / 11 kW as the base, with 15 / 18.5 kW and 22 / 26 kW as options (Cont. / 30 min). And Hartford says guideway spacing on the X axis is increased by 35%, to remove table overhang with heavier workpieces.
The table measures 1,450 x 700 mm (57.1 x 27.6 in) and is rated for 1,500 kg (3,307 lb). Its depth equals the Y travel. A DDS spindle at 10,000 / 12,000 rpm is the alternative to the gear head for finishing passes.
The tool changer is an arm type with 24 pockets, and 30, 32 or 40 are listed in brackets. Shanks are BT50, or BBT, CAT or DIN69871. As on the other HCMC machines the Z axis is counterweighted, the spindle housing is cast in one piece with the head, and the Air Suspension function is credited by Hartford with 50% less quadrant error and 30% less backlash error.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,450 x 700 mm (57.1 x 27.6 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 660 mm (26.0 in) |
| Spindle Taper | #50 |
| Spindle Speed Gear | 4,000 / 6,000 / 8,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | A: 24 (30 / 32 / 40) pcs |
| Tool Shank | BT50 (BBT / CAT / DIN69871) |
| Spindle Motor Power | 7.5 / 11 opt. 15 / 18.5; 22 / 26 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- #50 gear-head spindle with a 4,000 rpm low range (4,000 / 6,000 / 8,000 rpm)
- Motor options up to 22 / 26 kW (Cont. / 30 min)
- X-axis guideway spacing increased by 35% to eliminate overhang, per Hartford
- Table depth and Y travel both 700 mm (27.6 in)
- Arm-type magazine of 24 tools with 30, 32 or 40 listed
Limitations
- No #40 spindle; the top speed offered is 12,000 rpm (DDS)
- The base motor is only 7.5 / 11 kW, so the larger motors must be ordered as options
- Table load of 1,500 kg (3,307 lb) is modest for a 50-taper box-way machine
- Dual chip screws on the base are listed for other HCMC sizes but not on this model's page
Best For
Frequently Asked Questions
01
A #50 spindle. The gear-head version is listed at 4,000 / 6,000 / 8,000 rpm and the DDS version at 10,000 / 12,000 rpm. The spindle drive motor is 7.5 / 11 kW, with 15 / 18.5 kW and 22 / 26 kW as options (Cont. / 30 min).
02
X travel is the same 1,300 mm (51.2 in). The HCMC-1365 offers #40 or #50 spindles, 650 mm (25.6 in) of Y and a 1,200 kg (2,646 lb) table. The HCMC-1370 is #50 only, with 700 mm (27.6 in) of Y, a 1,500 kg (3,307 lb) table and a 22 / 26 kW motor option.
03
The ATC row reads A: 24 (30 / 32 / 40) pcs, an arm-type magazine with 24 pockets and 30, 32 or 40 as alternatives. The tool shank is BT50, with BBT, CAT and DIN69871 listed in brackets.
04
Hartford states that guideway spacing on the X axis is increased by 35% to eliminate overhang, especially with heavier workpieces. A table that stays supported at the ends of its stroke keeps its geometry under load, which is the point of the claim.
