Pinnacle Vertical Machining Centers (VMC)

Pinnacle LV116

Q: How much does the Pinnacle LV116 cost?

The price estimate for the Pinnacle LV116 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv116#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

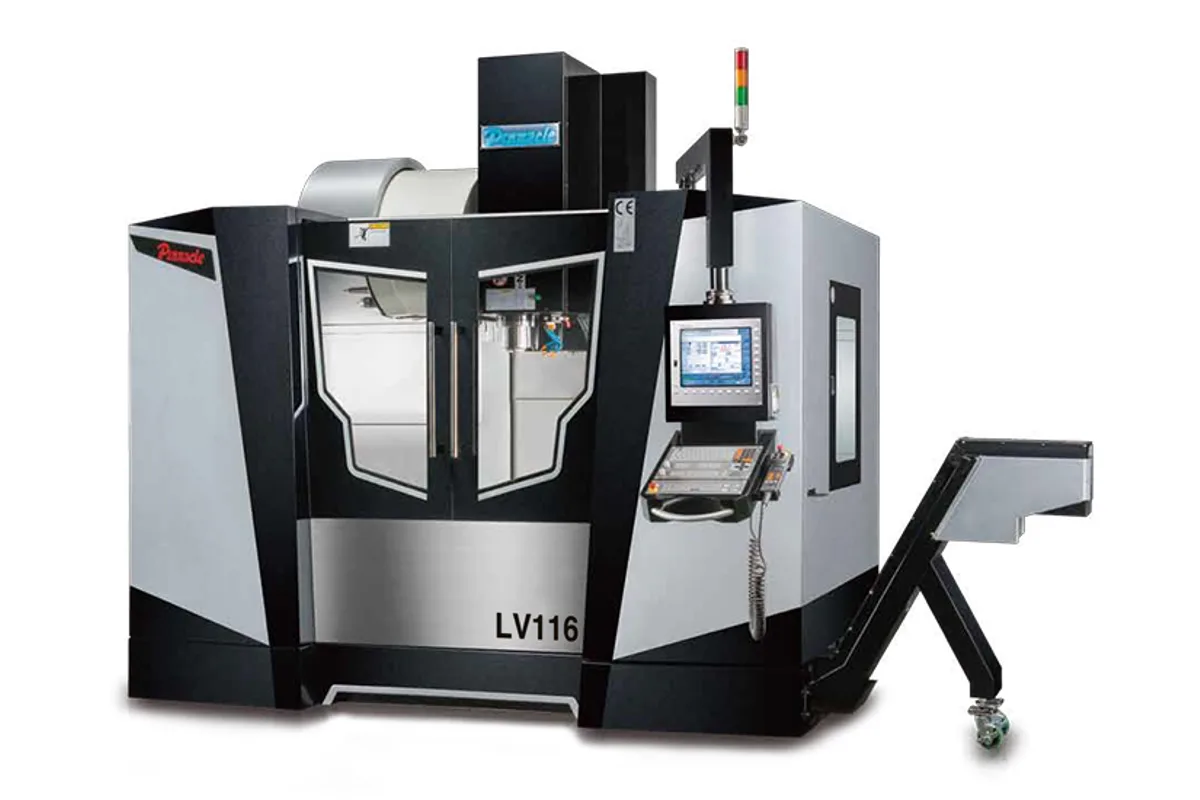

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,300 x 610 mm (51.2 x 24.0 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,140 mm (44.9 in)

y axis travel

610 mm (24.0 in)

z axis travel

610 mm (24.0 in)

How much does the Pinnacle LV116 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV116 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV116 moves the LV linear-way design up a frame size: 1,140 mm (44.9 in) in X and 610 mm (24.0 in) in both Y and Z, over a 1,300 x 610 mm (51.2 x 24.0 in) table rated for 850 kg (1,874 lb). Guideways are 45mm wide and the ball screws 40mm in diameter on this size.

What sets this page apart from the smaller LV machines is the taper choice. Pinnacle's table has an ISO40 column and an ISO50 column. The ISO40 spindle has a 7.5 / 11 kW (10.1 / 14.8 hp) motor and runs 60 ~ 8,000(10,000/12,000) rpm on a belt, or 10,000 / 12,000 / 15,000 rpm direct-drive. The ISO50 spindle has 11 / 15 kW (14.8 / 20.1 hp), a 2,000 kgf draw bar and 60 ~ 8,000 rpm on the belt.

The taper changes the tooling too. With ISO40 the 24-tool magazine takes tools to Ø90 mm (Ø3.5 in), 250 mm (9.8 in) long and 8 kg (18 lb). With ISO50 that becomes Ø105 mm (Ø4.1 in), 300 mm (11.8 in) and 15 kg (33 lb). A gear box is offered as an option for heavy cutting.

Rapids are 30 / 30 / 24 m/min. The machine weighs 6,500 kg (14,330 lb), takes 3,100 x 2,230 mm (122.0 x 87.8 in) of floor and needs 20 kVA. The LV126 is the same machine with X extended to 1,270 mm (50.0 in).

Full Specifications

Parameter	Value
Table Size	1,300 x 610 mm (51.2 x 24.0 in)
X Axis Travel	1,140 mm (44.9 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	850 kg (1,874 lb)
Distance Spindle Nose to Table	120-730 mm (4.7-28.7 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø80 mm (Ø3.1 in)
Spindle Center to Column	675 mm (26.6 in)
Spindle Speed Belt Drive	ISO40: 60 ~ 8,000(10,000/12,000) rpm; ISO50: 60 ~ 8,000 rpm
Spindle Speed Gear Drive	ISO40: L40~2000, H2001~8000 rpm; ISO50: L40~1500, H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	30 / 30 / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 mm (Ø4.1 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 300 mm (11.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	300 L
Machine Weight	6,500 kg (14,330 lb)
Machine Height	2,950 mm (116.1 in)
Floor Space	3,100 x 2,230 mm (122.0 x 87.8 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Offered with either an ISO40 or an ISO50 spindle on the same 1,140 x 610 x 610 mm frame
ISO50 version brings 11 / 15 kW (14.8 / 20.1 hp) and tools up to 15 kg (33 lb)
850 kg (1,874 lb) table load on a 1,300 x 610 mm (51.2 x 24.0 in) table
45mm linear guideways and 40mm class C3 ball screws on three axes

Limitations

Belt-driven ISO50 spindle tops out at 8,000 rpm, so the bigger taper gives up the high-speed options
Gear box, coolant through spindle and chip conveyor are options
Z rapid is 24 m/min, slower than the 30 m/min of X and Y

Best For

Shops that want ISO50 tooling in a 6,500 kg (14,330 lb) machine Mould bases and plates up to 850 kg (1,874 lb) Mixed steel and aluminium work across 1,140 mm (44.9 in) of X

Frequently Asked Questions

01 Can the Pinnacle LV116 be ordered with an ISO50 spindle?

Yes. The specification table carries an ISO40 and an ISO50 column, and the feature list reads ISO40 (ISO50) Spindle Taper. The ISO50 spindle has an 11 / 15 kW (14.8 / 20.1 hp) motor, a 2,000 kgf draw bar and a 60 ~ 8,000 rpm belt drive.

02 What tools fit the LV116 magazine?

The disk magazine holds 24 tools. On the ISO40 machine a tool can be Ø90 mm (Ø3.5 in), 250 mm (9.8 in) long and 8 kg (18 lb). On the ISO50 machine the limits are Ø105 mm (Ø4.1 in), 300 mm (11.8 in) and 15 kg (33 lb).

03 How does the LV116 compare with the LV126?

The LV126 has 1,270 mm (50.0 in) of X travel and a 1,440 x 610 mm (56.7 x 24.0 in) table. Y, Z, the 850 kg table load and the spindle choices are shared. The LV116 is lighter at 6,500 kg (14,330 lb) and shorter on the floor.

04 What are the rapid traverse rates of the LV116?

Rapids are 30 / 30 / 24 m/min in X, Y and Z, and the cutting feed rate is 10,000 mm/min. The axes run on 45mm linear guideways with 40mm ball screws coupled directly to the servo motors.
