Pinnacle Vertical Machining Centers (VMC)

Pinnacle LV147

Q: How much does the Pinnacle LV147 cost?

The price estimate for the Pinnacle LV147 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv147#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

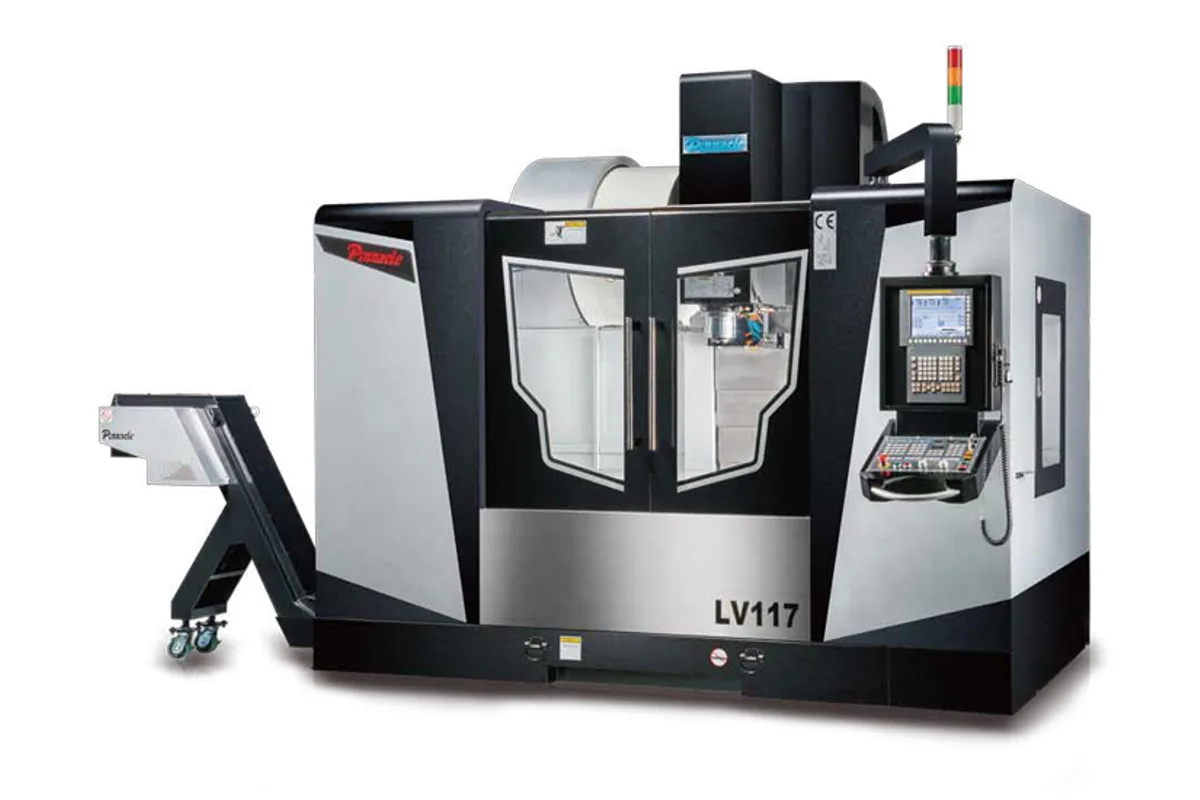

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

ISO40: 24 (30); ISO50: 24 / 32

Table Size

1,600 x 700 mm (63.0 x 27.6 in)

Spindle Power

ISO40: 7.5/11 kW (10.1/14.8 hp) (con/30 min); ISO50: 11/15 kW (14.8/20.1 hp) (con/30 min)

x axis travel

1,400 mm (55.1 in)

y axis travel

710 mm (28.0 in)

z axis travel

610 mm (24.0 in)

How much does the Pinnacle LV147 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV147 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Largest of its group, the Pinnacle LV147 has 1,400 mm (55.1 in) of X travel, 710 mm (28.0 in) of Y and 610 mm (24.0 in) of Z. Its table is 1,600 x 700 mm (63.0 x 27.6 in) and it is rated for 1,500 kg (3,307 lb), the highest load among the three models on the page.

The load rating is the reason to choose it. The LV117 carries 1,000 kg (2,205 lb) and the LV137 1,200 kg (2,646 lb) on what is otherwise the same Y, Z and spindle package. Machine weight rises in step, to 11,000 kg (24,250 lb).

For heavy parts the ISO50 spindle is the natural match: 11/15 kW (14.8/20.1 hp), a 2,000 kgf draw bar, a spindle bearing bore of Ø100 mm (Ø3.9 in) and tools up to 15 kg (33 lb). It turns 40 - 6,000 (8,000) rpm with the belt drive. An ISO40 spindle with 7.5/11 kW (10.1/14.8 hp) remains available for lighter, faster work, up to 10,000 / 12,000 / 15,000 rpm direct-drive.

Plan the installation around 3,890 x 3,080 mm (153.1 x 121.3 in) of floor, 3,000 mm (118.1 in) of height and a 30 kVA supply. Pinnacle lists Mitsubishi, Fanuc, Heidenhain, Siemens and Fagor controls for the series, and coolant through spindle with a 20 bar pump as options.

Full Specifications

Parameter	Value
Table Size	1,600 x 700 mm (63.0 x 27.6 in)
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	710 mm (28.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	1,500 kg (3,307 lb)
Distance Spindle Nose to Table	110 ~ 720 mm (4.3 ~ 28.3 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	760 mm (29.9 in)
Spindle Speed Belt Drive	ISO40: 40 - 8,000(10,000/12,000) rpm; ISO50: 40 - 6,000 (8,000) rpm
Spindle Speed Gear Drive	ISO40: L40 ~ 2000, H2001 ~ 8000 rpm; ISO50: L40 ~ 1500, H1501 ~ 6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5/11 kW (10.1/14.8 hp) (con/30 min); ISO50: 11/15 kW (14.8/20.1 hp) (con/30 min)
Rapid Traverse Xyz	24(30) / 24(30) / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	ISO40: 24 (30); ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 (Ø75) mm (Ø3.5 (Ø3.0) in); ISO50: Ø127 mm (Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 300 mm (11.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirement	30 kVA
Coolant Tank Capacity	300 L
Machine Weight	11,000 kg (24,250 lb)
Machine Height	3,000 mm (118.1 in)
Floor Space	3,890 x 3,080 mm (153.1 x 121.3 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,500 kg (3,307 lb) table load, the highest in the LV117/LV137/LV147 group
1,400 mm (55.1 in) X travel over a 1,600 x 700 mm (63.0 x 27.6 in) table
ISO50 spindle with a Ø100 mm (Ø3.9 in) bearing bore and 2,000 kgf draw bar
11,000 kg (24,250 lb) of machine weight behind the cut

Limitations

Z travel stays at 610 mm (24.0 in) despite the larger table
Takes 3,890 x 3,080 mm (153.1 x 121.3 in) of floor and stands 3,000 mm (118.1 in) high
Coolant through spindle and the 20 bar pump are options

Best For

Heavy workpieces up to 1,500 kg (3,307 lb) Large mould plates across 1,400 mm (55.1 in) of X Roughing in steel and cast iron with ISO50 tooling

Frequently Asked Questions

01 How much weight can the LV147 table carry?

The maximum table load is 1,500 kg (3,307 lb) on a 1,600 x 700 mm (63.0 x 27.6 in) table. That compares with 1,200 kg (2,646 lb) on the LV137 and 1,000 kg (2,205 lb) on the LV117.

02 What are the ISO50 spindle figures for the LV147?

The ISO50 column lists an 11/15 kW (14.8/20.1 hp) motor, 40 - 6,000 (8,000) rpm with belt drive, 10,000 rpm with direct drive, a draw bar force of 2,000 kgf and a spindle bearing bore of Ø100 mm (Ø3.9 in).

03 Which tool magazines are listed for the LV147?

A disk magazine with random, bi-directional selection. Capacity is 24 (30) tools with ISO40 and 24 / 32 with ISO50. ISO50 tools may be Ø127 mm (Ø5.0 in), 300 mm (11.8 in) long and 15 kg (33 lb). A chain-type ATC is an option.

04 How fast are the axes on the LV147?

Rapid traverse is printed as 24(30) / 24(30) / 24 m/min for X, Y and Z, with a cutting feed rate of 10,000 mm/min. Ask which X and Y rapid applies to the configuration quoted, since the 30 figure is given in brackets.
