Pinnacle Vertical Machining Centers (VMC)

Pinnacle QV117

Q: How much does the Pinnacle QV117 cost?

The price estimate for the Pinnacle QV117 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-qv117#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

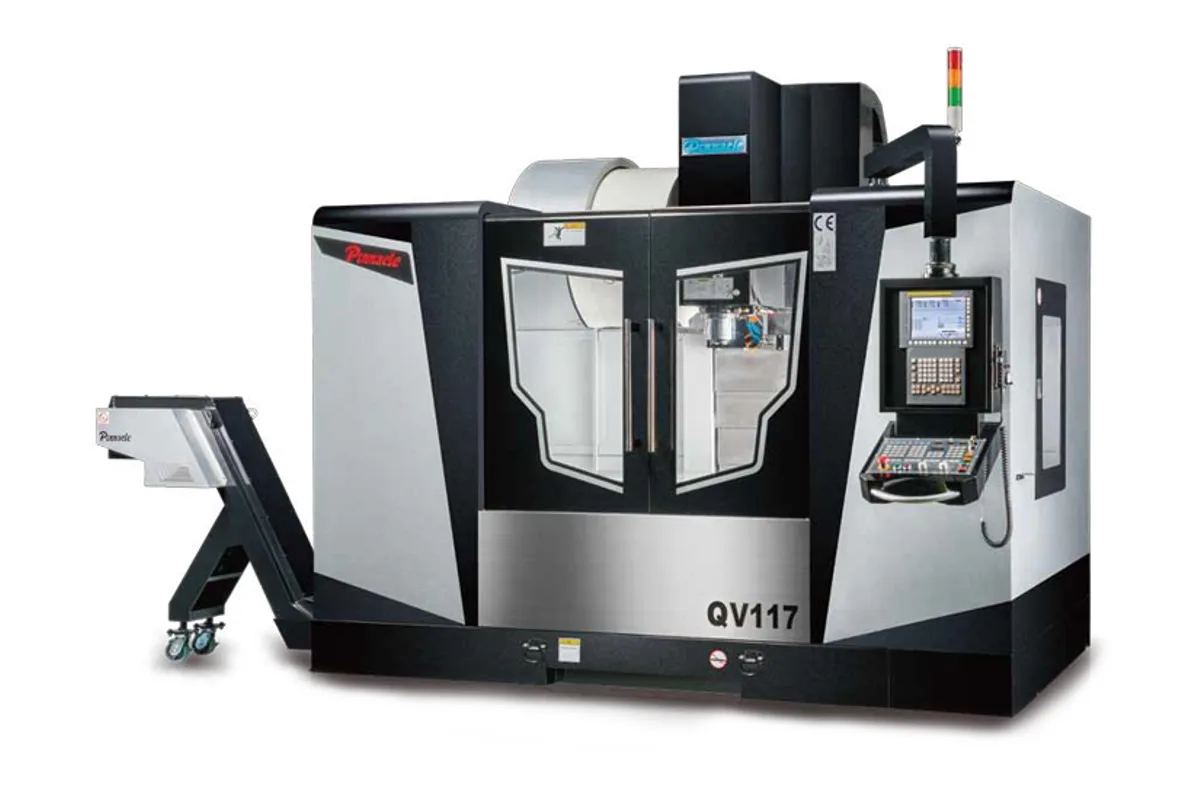

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO40; ISO50

Tool Capacity

ISO40: 24; ISO50: 24 / 32

Table Size

1,300 x 700 mm (51.2 x 27.6 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,140 mm (44.9 in)

y axis travel

710 mm (28.0 in)

How much does the Pinnacle QV117 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle QV117 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle QV117 is the entry model of the heavy-duty QV line: box ways on all axes, 1,140 mm (44.9 in) of X, 710 mm (28.0 in) of Y and 610 mm (24.0 in) of Z, in a machine that weighs 9,000 kg (19,841 lb).

QV machines pair the wide four-slideway base of the LV117 group with square sliding ways. Pinnacle gives the way hardness as over HRC55 with over 2 mm depth and fits 40mm class C3 ball screws. Rapids are accordingly modest at 20 / 20 / 16 m/min.

Both tapers are listed. The ISO40 spindle has 7.5 / 11 kW (10.1 / 14.8 hp) and reaches 40 - 8,000(10,000/12,000) rpm on a belt. The ISO50 spindle has 11 / 15 kW (14.8 / 20.1 hp) and is listed at 40 - 6,000 (8,000) rpm on a belt or through a gear head at L40 ~ 1500, H1501 ~ 6000 rpm. Pinnacle summarises the choice as 6,000 rpm for ISO50 belt or gear, and 8,000, 10,000 or 12,000 rpm for belt-driven ISO40.

The 1,300 x 700 mm (51.2 x 27.6 in) table takes 1,000 kg (2,205 lb). ISO50 machines can have a DISK / CHAIN magazine with 24 / 32 tools up to 350 mm (13.8 in) long. Floor space is 3,250 × 3,235 mm (128.0 × 127.4 in), with a 30 kVA supply and a 350 L coolant tank.

Full Specifications

Parameter	Value
Table Size	1,300 x 700 mm (51.2 x 27.6 in)
X Axis Travel	1,140 mm (44.9 in)
Y Axis Travel	710 mm (28.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	1,000 kg (2,205 lb)
Distance Spindle Nose to Table	110 ~ 720 mm (4.3 ~ 28.3 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Taper	ISO40; ISO50
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	760 mm (29.9 in)
Spindle Speed Belt Drive	ISO40: 40 - 8,000(10,000/12,000) rpm; ISO50: 40 - 6,000 (8,000) rpm
Spindle Speed Gear Drive	ISO40: L40 ~ 1750, H1751 ~ 8000 rpm; ISO50: L40 ~ 1500, H1501 ~ 6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	20 / 20 / 16 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	ISO40: DISK; ISO50: DISK / CHAIN
Tool Capacity	ISO40: 24; ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirements	220V, 3Ph, 50 / 60Hz
Power Requirement	30 kVA
Coolant Tank Capacity	350 L
Machine Weight	9,000 kg (19,841 lb)
Machine Height	3,000 mm (118.1 in)
Floor Space	3,250 × 3,235 mm (128.0 × 127.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Square box ways on X, Y and Z, hardened to over HRC55
9,000 kg (19,841 lb) structure for a 1,140 x 710 x 610 mm envelope
ISO50 gear-head spindle with 11 / 15 kW (14.8 / 20.1 hp)
ISO50 magazine of 24 / 32 tools up to 350 mm (13.8 in) long

Limitations

Rapids of 20 / 20 / 16 m/min come with the sliding ways
Floor space of 3,250 × 3,235 mm (128.0 × 127.4 in) is close to square and large
ISO40 magazine is limited to 24 tools

Best For

Heavy roughing of die steel and cast iron Mould bases up to 1,000 kg (2,205 lb) Low-speed, high-torque cutting with a gear head

Frequently Asked Questions

01 What kind of guideways does the Pinnacle QV117 have?

Box ways. Pinnacle lists an X, Y and Z axis square way design, with way surfaces hardened to over HRC55 and over 2 mm deep. The three axes use 40mm class C3 ball screws.

02 How does the QV117 differ from the LV117?

Travels, table size and the 9,000 kg weight match. The QV117 uses box ways and traverses at 20 / 20 / 16 m/min, while the LV117 uses linear guideways and is listed at 24(30) / 24(30) / 24 m/min. The QV117 is the choice for heavier cuts.

03 What spindle speeds does the QV117 offer?

Pinnacle lists 6,000 rpm for ISO50 with belt or gear drive, 8,000 rpm for ISO40 or ISO50 with belt drive, and 10,000 or 12,000 rpm for ISO40 with belt drive. Direct-drive figures of 10,000 / 12,000 / 15,000 rpm appear in the ISO40 column of the table.

04 What is the tool capacity of the QV117?

24 tools in a disk magazine with ISO40, and 24 / 32 tools in a DISK / CHAIN magazine with ISO50. ISO50 tools can be Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in) in diameter, 350 mm (13.8 in) long and 15 kg (33 lb).
