Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1422

Q: How much does the Pinnacle DV1422 cost?

The price estimate for the Pinnacle DV1422 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1422#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

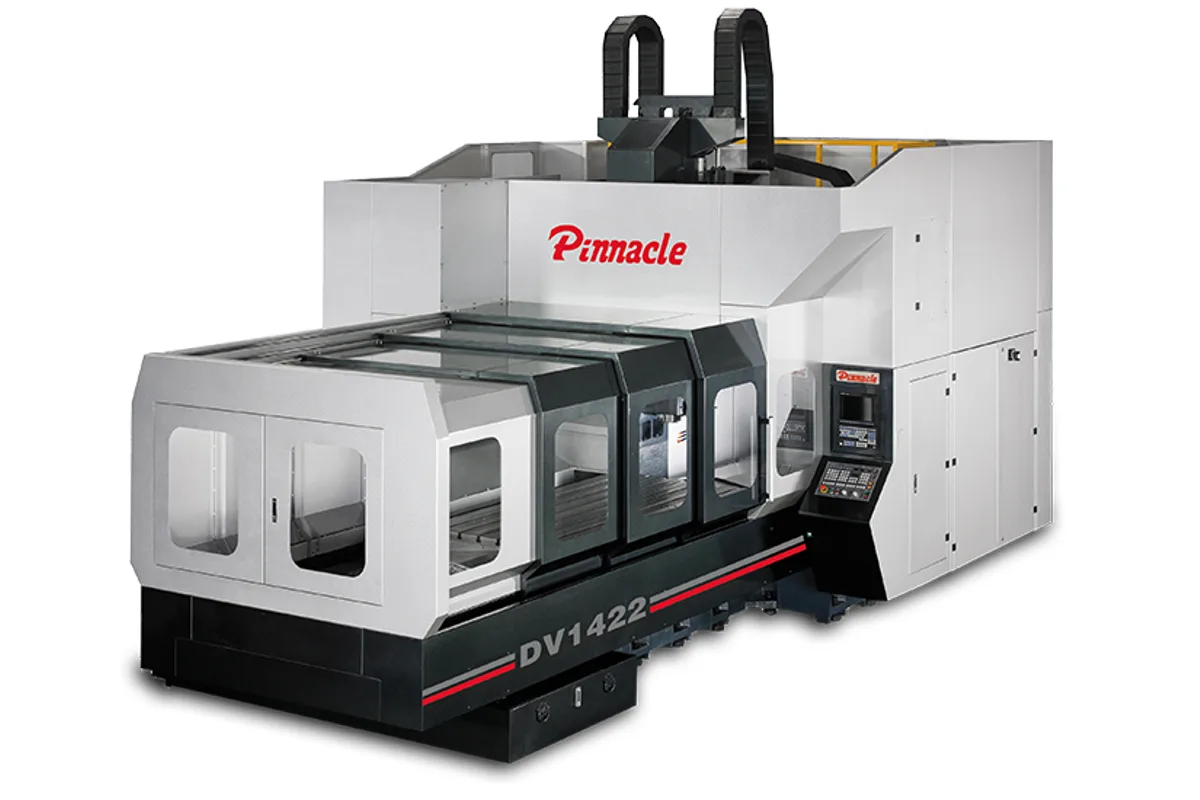

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

2,200 x 1,200 mm (86.6 x 47.2 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

2,200 mm (86.6 in)

y axis travel

1,400 mm (55.1 in)

How much does the Pinnacle DV1422 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1422 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 2,200 mm (86.6 in) of X travel, the Pinnacle DV1422 is the machine Pinnacle pictures for the whole DV range. Y is 1,400 mm (55.1 in), Z is 900 mm (35.4 in), and the 2,200 x 1,200 mm (86.6 x 47.2 in) table sits between columns 1,400 mm (55.1 in) apart.

Compare it with its neighbours to see where it sits. The DV1417 has 1,700 mm (66.9 in) of X and slightly faster rapids. The DV1432 stretches X to 3,200 mm (126.0 in) and raises the table rating to 8,000 kg/m2, but needs 8,130 x 4,150 mm (320.1 x 163.4 in) of floor against 6,090 x 4,150 mm (239.8 x 163.4 in) here.

The structure is what separates a DV from Pinnacle's C-frame machines. All major structural parts are cast iron, tempered to relieve stress, with rib reinforced box sections. The spindle head is a box-type construction and the Z axis linear ways are laid out on its sides. Z is counter-balanced pneumatically, with an accumulator in the air circuit.

The ISO50 spindle is gear driven: 8,000 rpm in the table, a 15/18.5 kW (20.1/24.8 hp) motor, a Ø100 mm (Ø3.9 in) spindle inner diameter and 1,800 kgf of draw bar force. Rapids are 16/20/20 m/min and cutting feed is 10,000 mm/min. The machine weighs 16,000 kg (35,273 lb).

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	1,400 mm (55.1 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	160~1,060 mm (6.3~41.7 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,400 mm (55.1 in)
Table Size	2,200 x 1,200 mm (86.6 x 47.2 in)
T-Slots	22 x 150 x7 (W D x N mm )
Max Table Load	5,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	16/20/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK / Chain
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125(Ø160/ Ø250) mm (Ø4.3/ Ø4.9(Ø6.3/ Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	16,000 kg (35,273 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	6,090 x 4,150 mm (239.8 x 163.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,200 x 1,200 mm (86.6 x 47.2 in) table with 2,200 mm (86.6 in) of X in a 6,090 x 4,150 mm (239.8 x 163.4 in) floor space
Roller type linear ways on X, Y and Z with a box-type spindle head
Gear box drive to an ISO50 spindle with a Ø100 mm (Ø3.9 in) inner diameter
Magazine is mounted outside the cutting area behind a protection door

Limitations

Table rating is 5,000 kg/m2, where the DV1432 is listed at 8,000 kg/m2
X rapid is 16 m/min, slower than the 20 m/min of Y and Z
Top speed of 8,000 rpm limits small-cutter finishing
Requires 50 kVA and air at 6 kg/cm²

Best For

Die sets, mould bases and machine plates up to 2,200 x 1,200 mm (86.6 x 47.2 in) Gear-head roughing with ISO50 face mills Work that needs 900 mm (35.4 in) of Z under a bridge

Frequently Asked Questions

01 How big is the Pinnacle DV1422 table?

2,200 x 1,200 mm (86.6 x 47.2 in), with T-slots listed as 22 x 150 x7 (width, distance and number). Maximum table load is printed as 5,000 kg/m2. The columns stand 1,400 mm (55.1 in) apart, which matches the Y travel.

02 What is the difference between the DV1422 and the DV1722?

Width. The DV1722 has 1,700 mm (66.9 in) of Y, a 2,200 x 1,500 mm (86.6 x 59.1 in) table and columns 1,900 mm (74.8 in) apart, and weighs 21,000 kg (46,296 lb). The DV1422 has 1,400 mm (55.1 in) of Y and weighs 16,000 kg (35,273 lb). X and Z travel are the same on both.

03 How is the Z axis balanced on the DV1422?

By a pneumatic counter-balance system. Pinnacle says an accumulator in the air circuit keeps Z movement fast and stable, and lists the Z axis pneumatic balance system among the standard accessories. Z travel is 900 mm (35.4 in) with a 20 m/min rapid.

04 How much space does the DV1422 need?

Floor space is 6,090 x 4,150 mm (239.8 x 163.4 in) and machine height is 4,500 mm (177.2 in). The machine weighs 16,000 kg (35,273 lb), needs a 50 kVA supply and carries a 900 L coolant tank.
