Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-10035 / HF-10042

Q: How much does the Vision Wide HF-10035 / HF-10042 cost?

The price estimate for the Vision Wide HF-10035 / HF-10042 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-10035-hf-10042#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

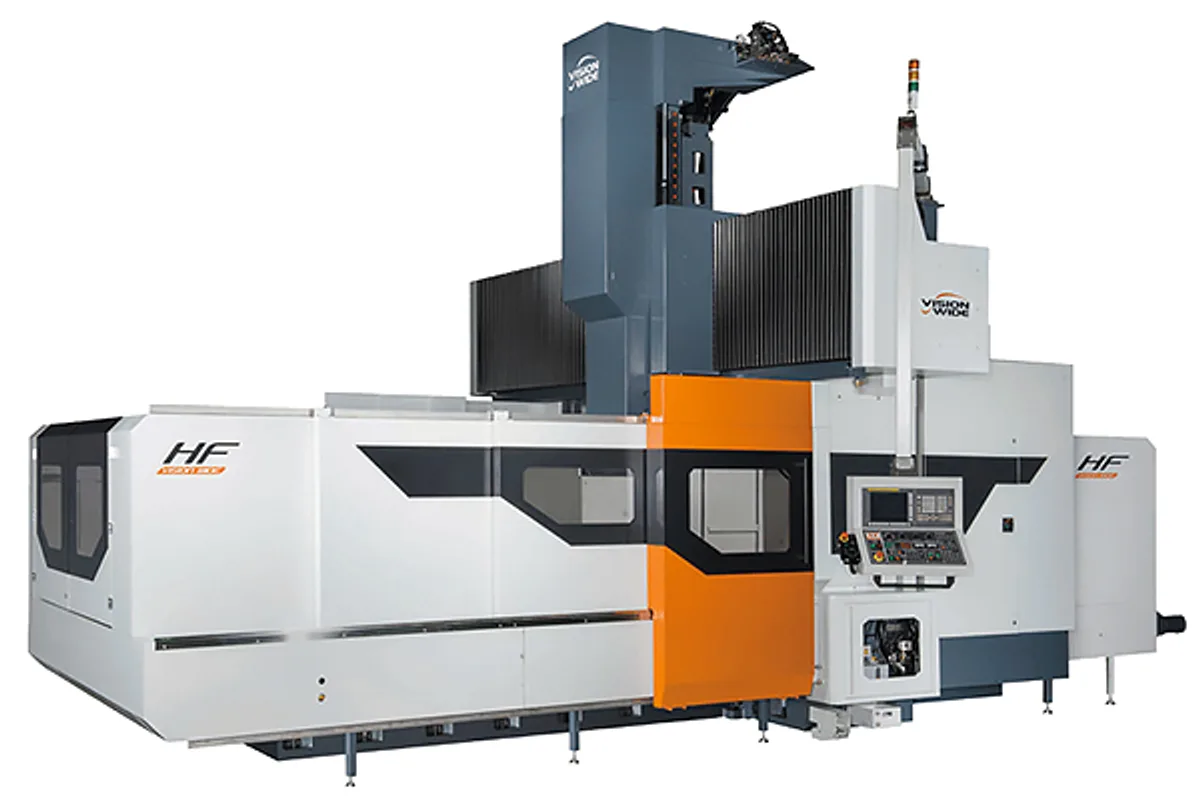

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

10,000×3,000 mm (393.7×118.1 in)

x axis travel

10,100 mm (397.6 in)

y axis travel

3,500/ 4,200 mm (137.8/ 165.4 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

36,000 kg (79,365 lb)

How much does the Vision Wide HF-10035 / HF-10042 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-10035 / HF-10042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Thirty-six tonnes is the table rating of the Vision Wide HF-10035 / HF-10042: 36,000 kg (79,365 lb) on a 10,000×3,000 mm (393.7×118.1 in) table. X travel is 10,100 mm (397.6 in). Y travel is 3,500 mm (137.8 in) on the HF-10035 and 4,200 mm (165.4 in) on the HF-10042.

The NF series reaches the same length, so the comparison is direct. The NF-10032 lists 26,000 kg (57,319 lb) on a 10,000×2,450 mm (393.7×96.5 in) table. The HF adds width, load and a larger standard motor, 22/26 kW (29.5/34.9 hp).

Tool handling scales with the job. The standard vertical type tool magazine holds 32 tools, with 40 and 60 as options, and a floor-standing vertical type magazine with 32, 40 or 60 tools is on the HF option list. The table also shows a floor-standing vertical-horizontal type, optional, for changing tools in the 90º head.

Chip volume on a part of this size is considerable. Screw type chip conveyors on the table sides and a caterpillar type chip conveyor with water tank are standard. The X/Y rapid is 8 m/min and cutting feed is 1-7,000 mm/min.

Full Specifications

Parameter	Value
X Axis Travel	10,100 mm (397.6 in)
Y Axis Travel	3,500/ 4,200 mm (137.8/ 165.4 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	10,000×3,000 mm (393.7×118.1 in)
Max Table Load	36,000 kg (79,365 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

36,000 kg (79,365 lb) table load
10,000×3,000 mm (393.7×118.1 in) table with 10,100 mm (397.6 in) of X travel
Floor-standing tool magazines with 32, 40 or 60 tools available
Table-side screw conveyors and caterpillar chip conveyor are standard

Limitations

X/Y rapid of 8 m/min on a ten-metre axis
Cutting feed limited to 7,000 mm/min
Floor-standing magazines are options; the standard magazine holds 32 tools

Best For

Ten-metre beds, frames and beams up to 36,000 kg (79,365 lb) Parts too heavy or wide for the NF-10032 Long five-face cycles with large tool sets

Frequently Asked Questions

01 What is the table load of the Vision Wide HF-10035?

36,000 kg (79,365 lb), on a 10,000×3,000 mm (393.7×118.1 in) table. The NF-10032, of the same length, is rated for 26,000 kg (57,319 lb).

02 What tool magazines are offered on the HF-10035 / HF-10042?

Standard: vertical type tool magazine 32 tools. Optional: vertical type 40/60 tools, floor-standing vertical type 32/40/60 tools, and a floor-standing vertical-horizontal type listed in the table at 32, 40 or 60 pcs.

03 What are the HF-10035 travels?

X travel is 10,100 mm (397.6 in). Y travel is 3,500 mm (137.8 in) on the HF-10035 and 4,200 mm (165.4 in) on the HF-10042. Standard Z travel is 920 mm.

04 How are chips handled on the HF-10035?

A screw type chip conveyor on table sides and a caterpillar type chip conveyor with water tank are standard accessories, along with a cutting fluid cooling system.
