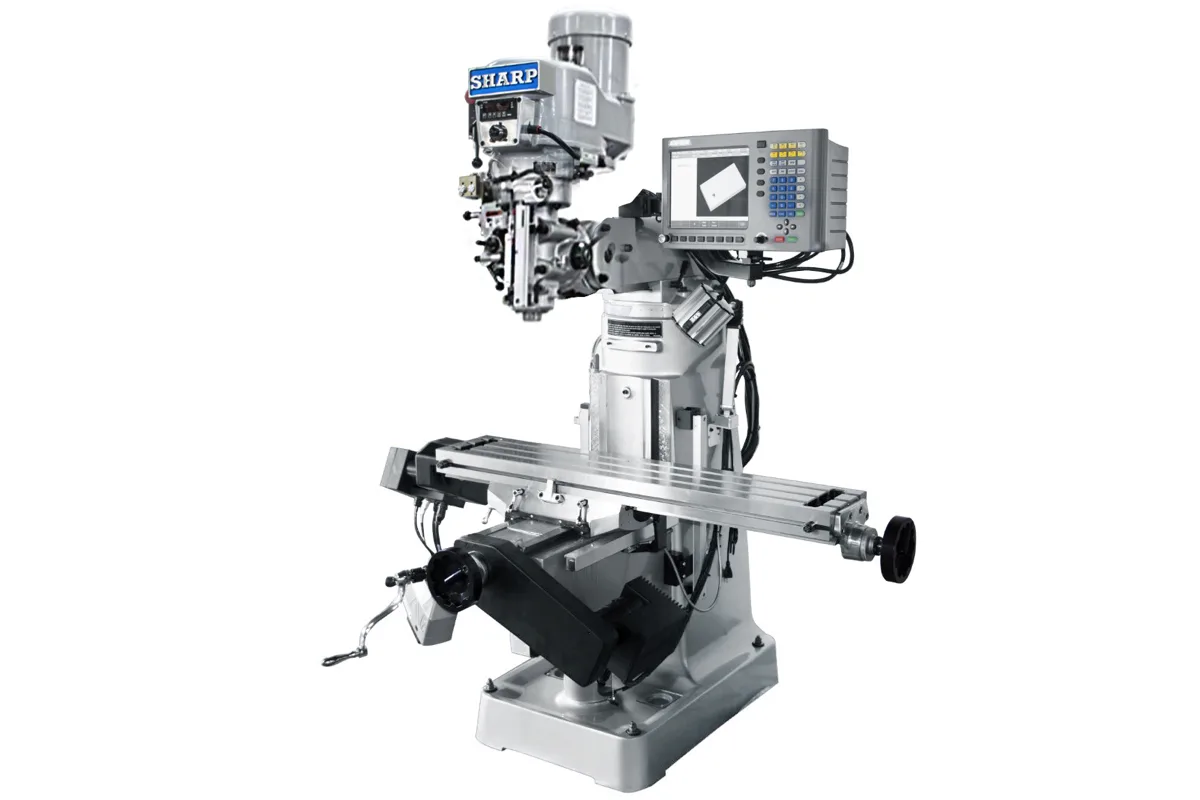

Sharp LMV-49-DVS-MP-2
Image: sharp-industries.com, Sharp
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Sharp LMV-49-DVS-MP-2 cost?
Price estimate
We do not have a price for the Sharp LMV-49-DVS-MP-2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Long and narrow describes the work the Sharp LMV-49-DVS-MP-2 is suited to. Its 9 x 49 in (230 x 1245 mm) table travels 31 in (787 mm) lengthwise, as far as Sharp's larger TMV knee mills, but only 11 in (279 mm) across. Rails, bars, extrusions and strip-shaped plates fit that shape well.
The number in the name is the table length, and the letters after it say how the spindle is driven: Sharp's bullet list gives the drive as Digital Variable Speed. The spindle row of the table reads 60 - 4500 rpm on an R-8 taper with a 3 hp (2.25 kW) motor.
Two axes are under CNC. The MILLPWR G2 moves the table through precision ball screws, and the operator sets depth on a 3.375 in (85.7 mm) quill with 5 in (127 mm) of travel. For work that is mostly slots, edge profiles and hole lines along a long part, that division of labour is quick: one program, one depth stop.
Setup range comes from the knee and head. The knee travels 16 in (406 mm), the ram 12 in (304.8 mm), and the head swivels 360° and tilts 45° each way. Sharp's weight and floor area rows for this model print conflicting entries, so neither is given here; the supply row reads 3 kVA/15 amps.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 9 x 49 in (230 x 1245 mm) |
| X Axis Travel | 31 in (787 mm) |
| Y Axis Travel | 11 in (279 mm) |
| Z Axis Travel | 5 in (127 mm) |
| Ram Travel | 12 in (304.8 mm) |
| Knee Travel | 16 in (406 mm) |
| Distance Spindle Center to Column | 6.75 - 18.5 in (171 - 470 mm) |
| Spindle Taper | R-8 |
| Max Spindle Speed | 60 - 4500 rpm |
| Spindle Motor Power | 3 hp (2.25 kW) |
| Quill Feed per Rev | .0015, .003, .006 in (.038, .076, .152 mm) |
| Quill Diameter | 3.375 in (85.7 mm) |
| Head Swivel Angle | 360° |
| Head Tilt Left Right | 45° |
| Head Tilt Up Down | 45° |
| Power Requirement 220v | 3 kVA/15 amps |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 31 in (787 mm) of X travel on a 9 x 49 in (230 x 1245 mm) table
- Digital Variable Speed spindle drive, 60 - 4500 rpm
- Head swivel of 360° with 45° tilt each way
- Two-axis CNC with a digital readout on the quill
- 16 in (406 mm) knee travel
Limitations
- Only 11 in (279 mm) of cross travel
- Weight and floor area rows are not usable on Sharp's page
- Manual depth setting on the quill
- 3 hp (2.25 kW) R-8 spindle
Best For
Frequently Asked Questions
01
The table length. Sharp's table lists a table size of 9 x 49 in (230 x 1245 mm), against 9 x 42 in (230 x 1066 mm) on the LMV-MP-2. The longer table brings X travel up to 31 in (787 mm) from 25 in (635 mm) on the LMV-MP-2.
02
Sharp's overview bullet describes it as Digital Variable Speed. The table gives the range as 60 - 4500 rpm, the motor as 3 hp (2.25 kW) and the taper as R-8, with quill feeds of .0015, .003, .006 in (.038, .076, .152 mm) per revolution.
03
Cross travel is 11 in (279 mm). The ram adds 12 in (304.8 mm) of in-and-out adjustment, giving a spindle center to column distance of 6.75 - 18.5 in (171 - 470 mm), but that is a setup move, not a CNC axis.
04
Sharp's weight row for this model prints two different entries, so no figure is repeated here. For reference, the three-axis LMV-49-DVS-MP-3 on the same table size is listed at 2700 lb (1225 kg). Ask Sharp for the shipping weight.
