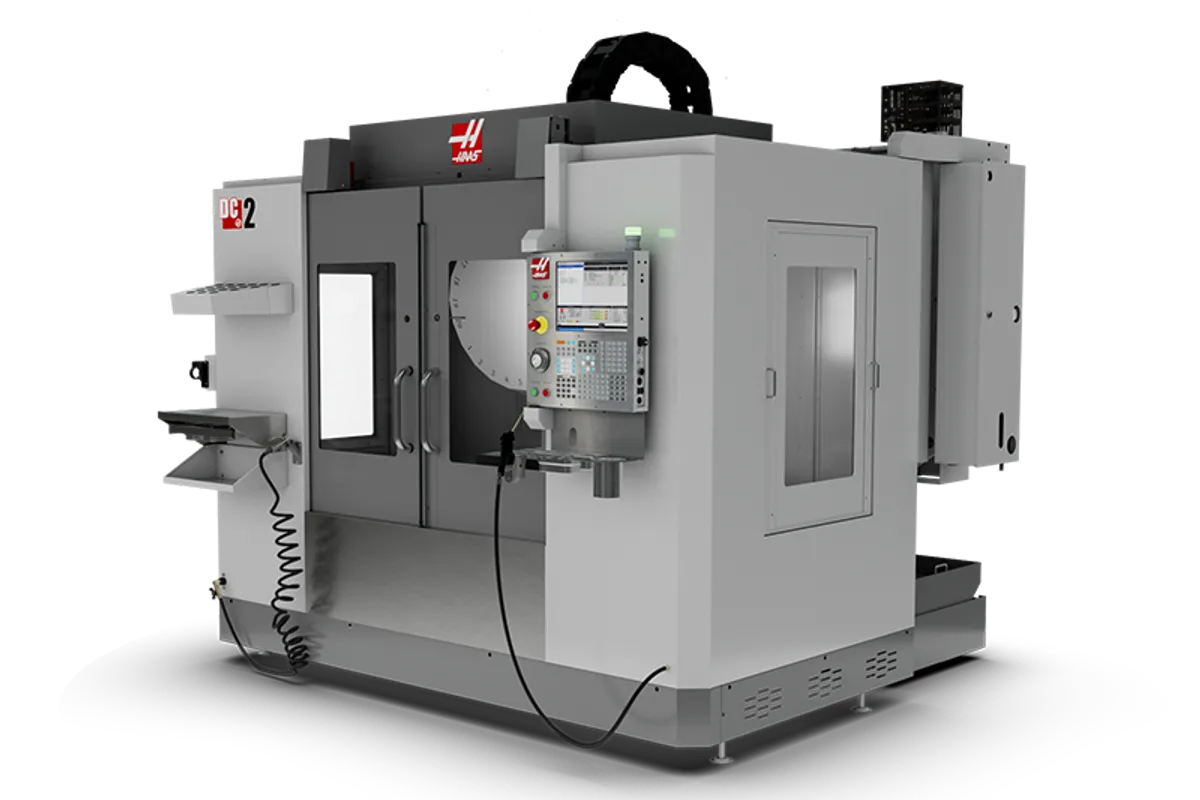

Haas DC-2-40 Drill Center
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Haas DC-2-40 Drill Center is the larger 40-taper drill center, stepping up from the DC-1-40 with extended X and Y travel for bigger workpieces while maintaining the same high-speed DNA. With 711 x 406 x 394 mm (28 x 16 x 15.5 in) of travel, the DC-2-40 handles plates and housings that outgrow the DC-1-40's 20 x 12 inch envelope.
The spindle is the same 11.2 kW (15 hp) inline direct-drive unit running at 10,000 RPM with 62 Nm (46 ft-lbf) of torque through a CT/BT 40 taper. Optional 12,000 and 15,000 RPM spindle upgrades are available. The 40-taper provides solid tool rigidity for larger drills, reamers, and light milling tools. High-speed rigid tapping runs at 5,000 RPM with 4x retract.
The table measures 864 x 381 mm (34 x 15 in) and supports up to 227 kg (500 lb). That is the same table size as the DM-2, giving you room for larger fixtures and multi-part setups. The 18+1 SMTC delivers 1.75-second tool-to-tool and 2.0-second chip-to-chip. Rapids hit 61.0 m/min (2,400 ipm) on all axes.
Rear chip discharge is standard, keeping the work zone clear for high-volume production. The larger envelope compared to the DC-1-40 accommodates manifolds, transmission housings, and structural brackets that need multiple drilled and tapped holes across a wider area.
At approximately $75,000-$95,000 configured, the DC-2-40 fills the gap between the compact DC-1-40 and the more versatile DM-2. The key differentiator is the rear chip discharge: if you are running dedicated high-volume drill-and-tap work on parts that need 28 inches of X-travel, the DC-2-40's automatic chip evacuation gives it a production advantage over the DM-2. Specs derived from Haas DC-1, DM-1, and DM-2 published data.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 711 mm (28 in) |
| Y-Axis Travel | 406 mm (16 in) |
| Z-Axis Travel | 394 mm (15.5 in) |
| Max Spindle Speed | 10000 rpm |
| Spindle Taper | CT or BT 40 |
| Spindle Motor Power | 15.0 hp |
| Spindle Torque Max | 62 Nm (46 ft-lbf) @ 1,700 RPM |
| Spindle Drive | Inline Direct-Drive |
| Tool Capacity | 18+1 SMTC |
| Tool To Tool | 1.50 s |
| Chip To Chip | 2.50 s |
| Max Tool Diameter | 4.3 in |
| Max Tool Weight | 11.0 lb |
| Table Size | 864 x 381 mm (34 x 15 in) |
| Table Load Max | 227 kg (500 lb) |
| Rapid Traverse Rate | 61.0 m/min (2,400 IPM) all axes |
| Max Cutting Feed | 30.5 m/min (1,200 IPM) |
| Max Tapping Speed | 5,000 RPM |
| Chip Discharge | Rear discharge standard |
| Positioning Accuracy | ±0.010 mm (±0.0004 in) |
| Repeatability | ±0.005 mm (±0.0002 in) |
| Machine Weight | 2,495 kg (5,500 lb) |
| Coolant Capacity | 66 gal |
| CNC Control | Haas Next Generation Control (NGC) |
| Travels | S.A.E |
| X Axis | 39.40 in |
| Y Axis | 19.70 in |
| Z Axis | 19.70 in |
| Spindle Nose To Table | 5.9 in |
| Spindle | S.A.E |
| Max Rating | 15.0 hp |
| Max Speed | 10000 rpm |
| Max Torque | 52.0 ft-lbf @ 3000 rpm |
| Drive System | Inline Direct-Drive |
| Taper | CT40 |
| Bearing Lubrication | Grease Packed |
| Cooling | Liquid Cooled |
| Table | S.A.E |
| Length | 43.3 in |
| Width | 19.7 in |
| T Slot Width | 0.630 in |
| T Slot Center Distance | 3.94 in |
| Number Of Std T Slots | 5 |
| Max Weight On Table | 772 lb |
| Feedrates | S.A.E |
| Max Cutting | 1200 ipm |
| Rapids On X | 1890 ipm |
| Rapids On Y | 1890 ipm |
| Rapids On Z | 1890 ipm |
| Axis Motors | S.A.E |
| Max Thrust X | 2054 lbf |
| Max Thrust Y | 2054 lbf |
| Max Thrust Z | 2054 lbf |
| Tool Changer | S.A.E |
| Type | Turret |
| Capacity | 20 |
| Max Tool Diameter Large | 6.3 in |
| Max Tool Length | 7.90 in |
| Tapping | S.A.E |
| General | S.A.E |
| Air Requirements | S.A.E |
| Air Required | 4 scfm @ 100 psi |
| Inline Air Hose | 3/8 in |
| Coupler | 3/8 in |
| Air Pressure Min | 80 psi |
| Electrical Specification | S.A.E |
| Input Ac Voltage Low | 220 VAC |
| Full Load Amps Low | 40 A |
| Input Ac Voltage High | 440 VAC |
| Full Load Amps High | 20 A |
| Dimensions Shipping | S.A.E |
| Domestic Pallet | 123.8 in x 90.0 in x 101.0 in |
| Export Pallet | 123.8 in x 90.0 in x 101.0 in |
| Machine Weight | 8860 lb |
| Haas Rotary | HAAS MACHINE |
| Ha2ts | DC-2/40 |
| Ha5c | DC-2/40 |
| Ha5c T | DC-2/40 |
| Ha5c2 | DC-2/40 |
| Ha5c2 T | DC-2/40 |
| Ha5c3 | DC-2/40 |
| Ha5c3 T | DC-2/40 |
| Ha5c4 | DC-2/40 |
| Ha5c4 T | DC-2/40 |
| Ha5cs | DC-2/40 |
| Hqda5 | DC-2/40 |
| Hrt100 | DC-2/40 |
| Hrt160 | DC-2/40 |
| Hrt160 2 | DC-2/40 |
| Hrt160sp | DC-2/40 |
| Hrt160ss | DC-2/40 |
| Hrt200hs | DC-2/40 |
| Hrt210 | DC-2/40 |
| Hrt210 2 | DC-2/40 |
| Hrt210hs | DC-2/40 |
| Hrt210ht | DC-2/40 |
| Hrt210sp | DC-2/40 |
| Hrt210ss | DC-2/40 |
| Hrt210vm | DC-2/40 |
| Hrt310 | DC-2/40 |
| Hrt310sp | DC-2/40 |
| Hrt310ss | DC-2/40 |
| Hrta5 | DC-2/40 |
| Hrta6 | DC-2/40 |
| Lt260 | DC-2/40 |
| T5c | DC-2/40 |
| T5c2 | DC-2/40 |
| T5c3 | DC-2/40 |
| T5c4 | DC-2/40 |
| Th240 | DC-2/40 |
| Tr160 | DC-2/40 |
| Tr160 2 | DC-2/40 |
| Tr200y | DC-2/40 |
| Trt100 | DC-2/40 |
| Trt160 | DC-2/40 |
| Trt210 | DC-2/40 |
| Trt70 | DC-2/40 |
Specifications sourced from haascnc.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 711 mm (28 in) X-travel handles larger plates and housings that outgrow the DC-1-40's 20-inch envelope
- 40-taper spindle with 2,400 IPM rapids combines tool rigidity with high-speed drilling performance
- Rear chip discharge provides automatic chip evacuation that the DM-2 lacks, critical for high-volume production
- DM-2 sized table accommodates larger fixtures and multi-part setups
- 1.75-second tool-to-tool changes maintain production speed on multi-tool drill patterns
- Same NGC control and 40-taper tooling as DM and VF-series for shop floor standardization
Limitations
- 15 hp spindle limits heavier milling operations; for versatile mill work, step up to a DM-2 or VF-2
- 500 lb table load restricts fixture weight compared to full VMCs
- Costs more than the DC-1-40 without significantly more cutting capability
- Dedicated drill center format is less versatile than a DM-2 for shops needing general-purpose milling
Best For
Frequently Asked Questions
01
Base price starts around $75,000. With through-spindle coolant, probing, and spindle upgrade, configured price runs $85,000-$95,000.
02
Same travel, same spindle, same tool changer. The DC-2-40 adds rear chip discharge for automatic chip evacuation in high-volume drilling. The DM-2 is more versatile for general milling work. Choose the DC-2-40 for dedicated drilling production lines; choose the DM-2 for mixed drill/mill applications.
03
If your parts fit within 20 x 12 inches, the DC-1-40 saves money and floor space. If you need 28 x 16 inches of travel for larger parts or multi-part fixtures, the DC-2-40 is worth the upgrade. Both share the same spindle and speed.
04
Yes. The 40-taper spindle supports face milling, shallow pocketing, and contouring in aluminum and softer materials. For significant milling volume, the DM-2 is a better choice since it is optimized for drill/tap/mill rather than pure drilling.
