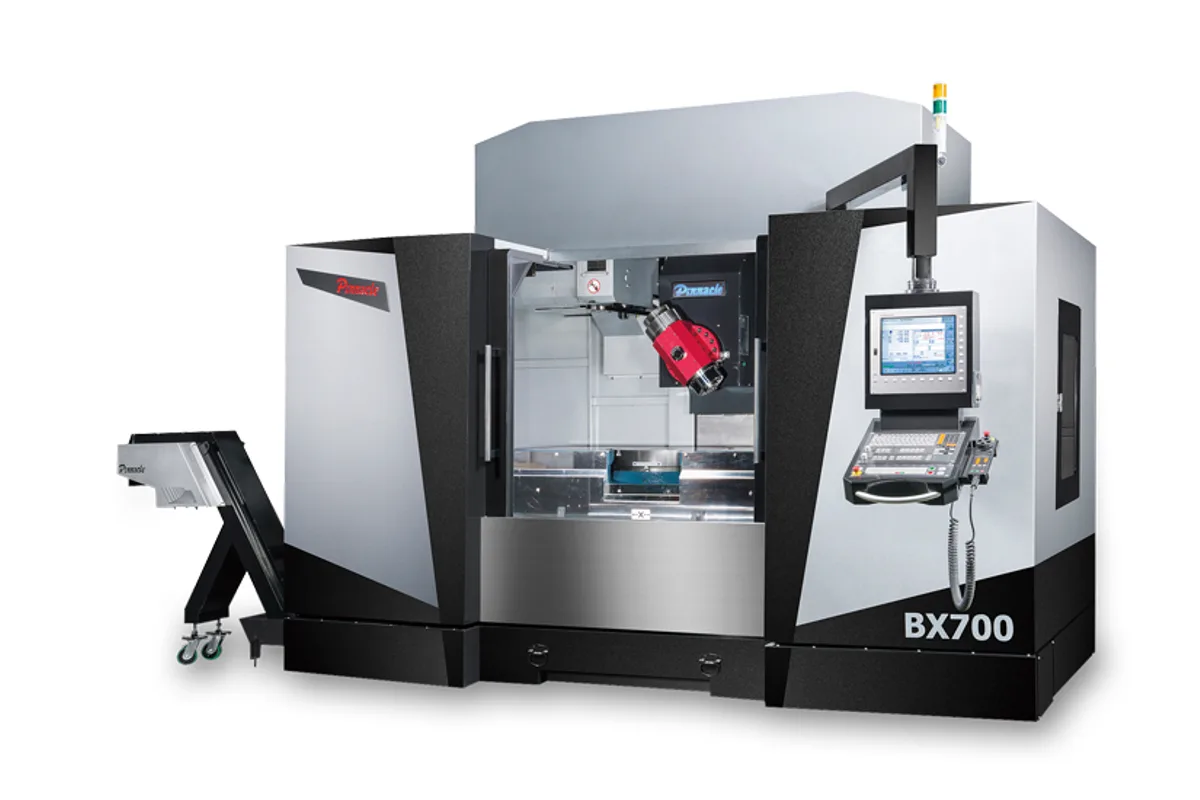

Pinnacle BX700DD
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Pinnacle BX700DD cost?
Price estimate
We do not have a price for the Pinnacle BX700DD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX700DD puts a direct-drive motor in the B-axis head of the BX700. The head swivels ± 120° at 50 rpm, against 16.6 rpm on the worm-gear BX700, and clamps with 2,950 Nm (2,175.9 lb-ft).
The rest of the machine carries over: 1,400 mm (55.1 in) of X, 710 mm (28.0 in) of Y, a Ø640 mm (Ø25.2 in) embedded direct-drive table for 1,000 kg (2,205 lb), and a 15,000 rpm built-in spindle with 15 / 19.4 kW (20.1 / 26.0 hp). Z is Vertical Milling 680 / Horizontal Milling 780 mm, so the direct-drive head gives up a little horizontal reach.
With both rotary axes free of gearing, B and C can follow a fast toolpath together. Pinnacle quotes 10"/10" positioning and 6"/6" repeatability on the rotary axes, and describes an angular position coder on the B-axis shaft.
This is the version for large sculpted surfaces: big impellers, turbine components, deep mould cavities reached with a tilted tool. A tonne on the table, 50 rpm on both rotary axes and 36 / 36 / 24 m/min rapids are an unusual mix. The machine weighs 12,000 kg (26,455 lb), stands 3,200 mm (126.0 in) high and needs 40 kVA. Pinnacle describes the series with the HEIDENHAIN TNC640 control.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,600 x 700 mm (63.0 x 27.6 in) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 710 mm (28.0 in) |
| Z Axis Travel | Vertical Milling 680 / Horizontal Milling 780 mm (Vertical Milling 26.8 / Horizontal Milling 30.7 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Distance Spindle Nose to Table Vertical | 110~790 mm (4.3~31.1 in) |
| Distance Spindle Center to Table Horizontal | 250~1,030 mm (9.8~40.6 in) |
| T-Slots | 18 x 125 x 5 (W x D x N mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 760 mm (29.9 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 900 ± 100 kgf |
| Spindle Motor Power | 15 / 19.4 kW (20.1 / 26.0 hp) (con/30 min) |
| Spindle Torque | 71.6 / 172 Nm (52.8 / 126.9 lb-ft) (con/max) |
| B Axis Drive | Direct drive |
| B Axis Range | ± 120° |
| B Axis Speed | 50 rpm |
| B Axis Clamp Torque | 2,950 Nm (2,175.9 lb-ft) |
| Rotary Table Drive Type | EMBEDDED |
| Rotary Table Type | Direct drive |
| Rotary Table Diameter | Ø640 mm (Ø25.2 in) |
| C Axis Speed | 50 rpm |
| Rotary Table Load | 1,000 kg (2,205 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Tool Magazine Type | PLATE |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 10"/10" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 6"/6" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 450 L |
| Machine Weight | 12,000 kg (26,455 lb) |
| Machine Height | 3,200 mm (126.0 in) |
| Floor Space | 3,890 x 3,180 mm (153.1 x 125.2 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Direct-drive B axis at 50 rpm with 2,950 Nm (2,175.9 lb-ft) clamp torque
- Direct-drive Ø640 mm (Ø25.2 in) table carrying 1,000 kg (2,205 lb)
- Rotary accuracy of 10"/10" with 6"/6" repeatability
- 15 / 19.4 kW (20.1 / 26.0 hp) spindle at 15,000 rpm
Limitations
- Horizontal milling Z travel is 780 mm, less than the 810 mm of the BX700
- Tool capacity cell is misprinted in the maker's table for this model
- 12,000 kg (26,455 lb) machine with a 3,890 x 3,180 mm (153.1 x 125.2 in) footprint
Best For
Frequently Asked Questions
01
50 rpm. The swing head is listed with a direct drive, a ± 120° tilting range and a clamp torque of 2,950 Nm (2,175.9 lb-ft). The worm-gear BX700 head is listed at 16.6 rpm.
02
The embedded rotary table is Ø640 mm (Ø25.2 in) and rated for 1,000 kg (2,205 lb) at up to 50 rpm. The main table around it measures 1,600 x 700 mm (63.0 x 27.6 in).
03
X is 1,400 mm (55.1 in) and Y is 710 mm (28.0 in). Z is listed as Vertical Milling 680 / Horizontal Milling 780 mm. Rapid traverse is 36 / 36 / 24 m/min.
04
No. Pinnacle lists coolant through spindle, with a 20 bar high-pressure pump and sub tank, as an option, along with the chip conveyor. Air blast through spindle, rigid tapping and a chip flushing system are described as equipped.
