Pinnacle BX500DD

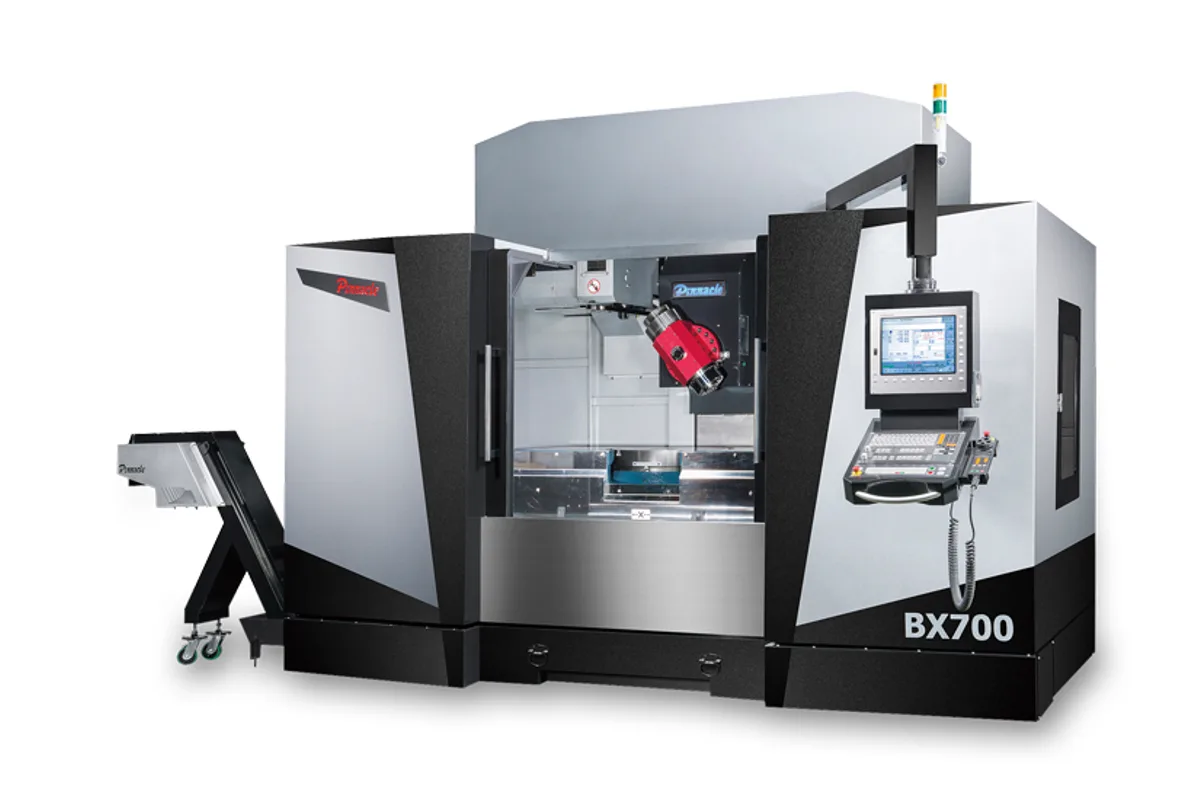

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX500DD cost?
Price estimate
We do not have a price for the Pinnacle BX500DD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX500DD is the BX500 with direct-drive motors on both rotary axes. The B-axis head swivels ± 120° at up to 50 rpm and clamps with 2,950 Nm (2,175.9 lb-ft); the embedded Ø500 mm (Ø19.7 in) C-axis table also turns at 50 rpm.
Dropping the worm gear changes what the machine is good at. There is no reduction to wind up or wear, so reversals in simultaneous 5-axis paths are cleaner, and Pinnacle's stated rotary accuracy improves to 10"/10" with 6"/6" repeatability. The maker also notes an angular position coder at the rear of the B-axis shaft.
The spindle is the stronger unit of the BX family's 40-taper options: 15 / 19.4 kW (20.1 / 26.0 hp) and 71.6 / 172 Nm (52.8 / 126.9 lb-ft), still 15,000 rpm and DIN40 (HSKA63). Draw bar force is 900 ± 100 kgf.
Envelope and frame are those of the BX500. X is 1,300 mm (51.2 in), Y 610 mm (24.0 in), and Z is given as Vertical Milling 610 / Horizontal Milling 720 mm, slightly less horizontal reach than the worm-head machine. Weight is 7,200 kg (15,873 lb). Coolant through spindle with a 20 bar pump and the chip conveyor are options; rigid tapping and a Z-axis pneumatic balance are in the standard accessories list.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,450 x 610 mm (57.1 x 24.0 in) |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | Vertical Milling 610 / Horizontal Milling 720 mm (Vertical Milling 24.0 / Horizontal Milling 28.3 in) |
| Max Table Load | 850 kg (1,874 lb) |
| Distance Spindle Nose to Table Vertical | 110~720 mm (4.3~28.3 in) |
| Distance Spindle Center to Table Horizontal | 245~965 mm (9.6~38.0 in) |
| T-Slots | 18 x 125 x 5 (W x D x N mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 675 mm (26.6 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 900 ± 100 kgf |
| Spindle Motor Power | 15 / 19.4 kW (20.1 / 26.0 hp) (con/30 min) |
| Spindle Torque | 71.6 / 172 Nm (52.8 / 126.9 lb-ft) (con/max) |
| B Axis Drive | Direct drive |
| B Axis Range | ± 120° |
| B Axis Speed | 50 rpm |
| B Axis Clamp Torque | 2,950 Nm (2,175.9 lb-ft) |
| Rotary Table Drive Type | EMBEDDED |
| Rotary Table Type | Direct drive |
| Rotary Table Diameter | Ø500 mm (Ø19.7 in) |
| C Axis Speed | 50 rpm |
| Rotary Table Load | 500 kg (1,102 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30(40/60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 10"/10" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 6"/6" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 7,200 kg (15,873 lb) |
| Machine Height | 3,100 mm (122.0 in) |
| Floor Space | 3,400 x 2,230 mm (133.9 x 87.8 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Direct-drive B and C axes, both at 50 rpm
- B-axis clamp torque of 2,950 Nm (2,175.9 lb-ft)
- Rotary positioning accuracy of 10"/10" and repeatability of 6"/6"
- 71.6 / 172 Nm (52.8 / 126.9 lb-ft) built-in spindle
Limitations
- Horizontal milling Z travel is 720 mm, less than the 760 mm of the BX500
- Rotary table load remains 500 kg (1,102 lb)
- Coolant through spindle and chip conveyor are options
Best For
Frequently Asked Questions
01
Direct drive. The swing head's driver type is listed as Direct drive instead of worm gear, with a rotation speed of 50 rpm and a clamp torque of 2,950 Nm (2,175.9 lb-ft). The rotary table is direct drive as well.
02
Positioning accuracy on B/C is 10"/10" and repeatability 6"/6". The linear axes are listed at 0.005 mm positioning and 0.003 mm repeatability.
03
71.6 / 172 Nm (52.8 / 126.9 lb-ft), continuous and maximum, from a 15 / 19.4 kW (20.1 / 26.0 hp) motor. Maximum speed is 15,000 rpm and the taper DIN40 (HSKA63).
04
Floor space is 3,400 x 2,230 mm (133.9 x 87.8 in), height 3,100 mm (122.0 in) and weight 7,200 kg (15,873 lb). It needs a 40 kVA supply, and the coolant tank holds 300 L.
