Pinnacle AX500
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Pinnacle AX500 cost?
Price estimate
We do not have a price for the Pinnacle AX500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

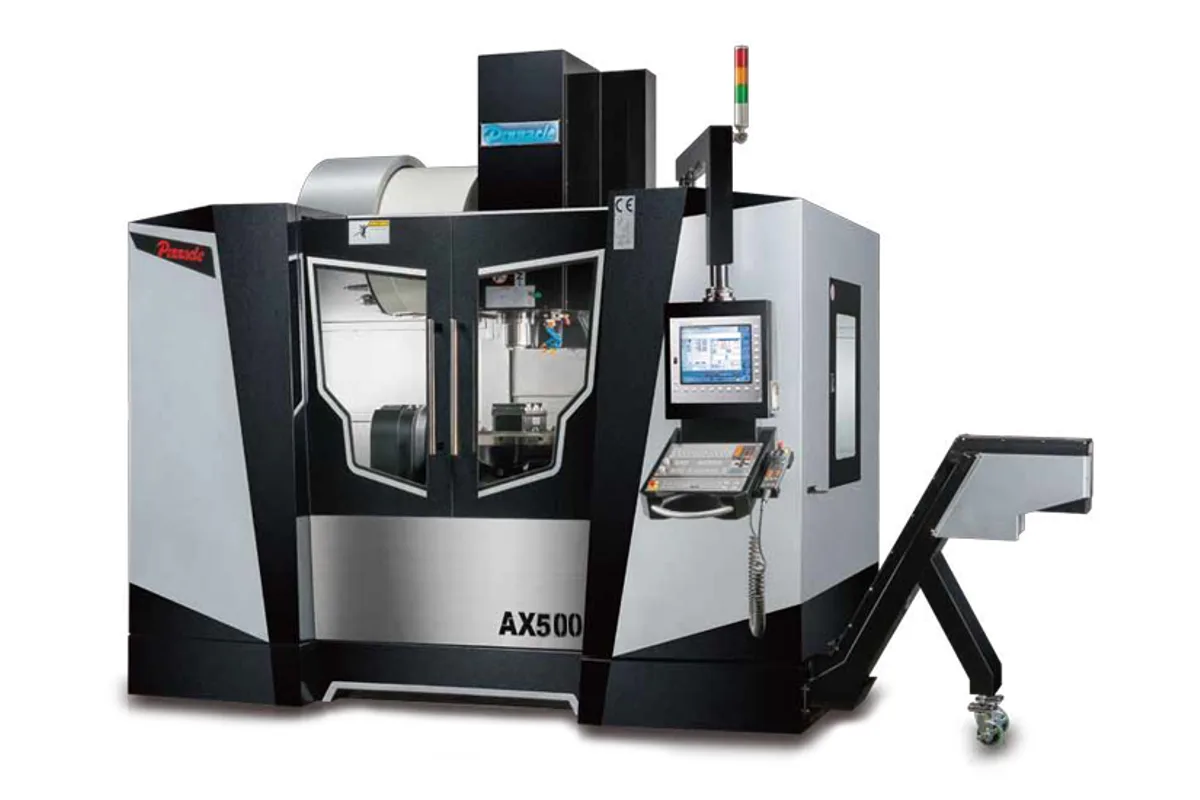

The Pinnacle AX500 is the largest AX trunnion machine, with a Ø500 mm (Ø19.7 in) table driven by DD motors on both rotary axes. It shares its 760 mm (29.9 in), 610 mm (24.0 in) and 560 mm (22.0 in) travels with the AX450 but moves the table much faster: the A/C feed rate is 30/90 rev/min.
That figure is the reason the model exists. The AX450 turns its table at 5.5/11.5 rev/min. A direct-drive table that is several times quicker keeps up with the linear axes in simultaneous 5-axis toolpaths, which is where blades, impellers and sculpted mould surfaces are cut.
Table load is 350 kg (772 lb) and the largest workpiece Ø600 x 305 mm (Ø23.6 x 12.0 in). The A axis tilts 220°(±110°). Pinnacle's table describes the machine as a fixed-column type and lists 45mm roller ways on X, Y and Z.
The spindle motor is 9 / 12 kW (12.1 / 16.1 hp). Direct drive is listed at 10,000 (12,000/15,000) rpm and the built-in spindle at 20,000 rpm. The taper row of the maker's table is mislabelled, so confirm the taper with the quotation. Tool capacity is 24/30 (40). The machine stands 3,280 mm (129.1 in) high, weighs 7,100 kg (15,653 lb) and needs 3,100 x 2,390 mm (122.0 x 94.1 in) of floor.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø500 mm (Ø19.7 in) |
| X Axis Travel | 760 mm (29.9 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | 560 mm (22.0 in) |
| Max Table Load | 350 kg (772 lb) |
| Max Workpiece Size | Ø600 x 305 mm (Ø23.6 x 12.0 in) |
| Table Bore Diameter | Ø50 mm (Ø2.0 in) |
| Distance Spindle Nose to Table | 35~595 mm (1.4~23.4 in) |
| A Axis Range | 220°(±110°) |
| C Axis Range | 360° |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Speed Direct Drive | 10,000 (12,000/15,000) rpm |
| Spindle Speed Built in | 20,000 rpm |
| Spindle Motor Power | 9 / 12 kW (12.1 / 16.1 hp) (con/30 min) |
| Rapid Traverse Xyz | 30/30/24 m/min |
| Cutting Feed Rate | 10 m/min |
| A C Axis Feed Rate | 30/90 rev/min |
| Tool Magazine Type | DISK(CHAIN) |
| Tool Capacity | 24/30 (40) |
| Max Tool Diameter (full magazine) | Ø90 (Ø76) mm (Ø3.5 (Ø3.0) in) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 7,100 kg (15,653 lb) |
| Machine Height | 3,280 mm (129.1 in) |
| Floor Space | 3,100 x 2,390 mm (122.0 x 94.1 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- DD-motor table with an A/C feed rate of 30/90 rev/min
- 350 kg (772 lb) table load on a Ø500 mm (Ø19.7 in) table
- A-axis tilt of 220°(±110°)
- 45mm roller ways and a pneumatically counterbalanced Z axis
Limitations
- Machine height of 3,280 mm (129.1 in) needs checking against the building
- Built-in spindle is listed at 20,000 rpm, below the 24,000 rpm option of the AX450
- Spindle taper is not printed cleanly in the maker's table
Best For
Frequently Asked Questions
01
The rotary table. The AX500 uses DD motors on A and C with a feed rate of 30/90 rev/min; the AX450 is listed at 5.5/11.5 rev/min. The AX500 table is Ø500 mm (Ø19.7 in) with a 350 kg (772 lb) load rating.
02
X is 760 mm (29.9 in), Y is 610 mm (24.0 in) and Z is 560 mm (22.0 in). The spindle nose to table distance is 35~595 mm (1.4~23.4 in) and rapid traverse is 30/30/24 m/min.
03
A direct-drive spindle at 10,000 (12,000/15,000) rpm and a built-in spindle at 20,000 rpm, with a 9 / 12 kW (12.1 / 16.1 hp) motor. The belt-drive row is blank for this model.
04
Floor space of 3,100 x 2,390 mm (122.0 x 94.1 in), a height of 3,280 mm (129.1 in), a 40 kVA supply and air at 6 kg/cm². Machine weight is 7,100 kg (15,653 lb) and the coolant tank holds 300 L.
