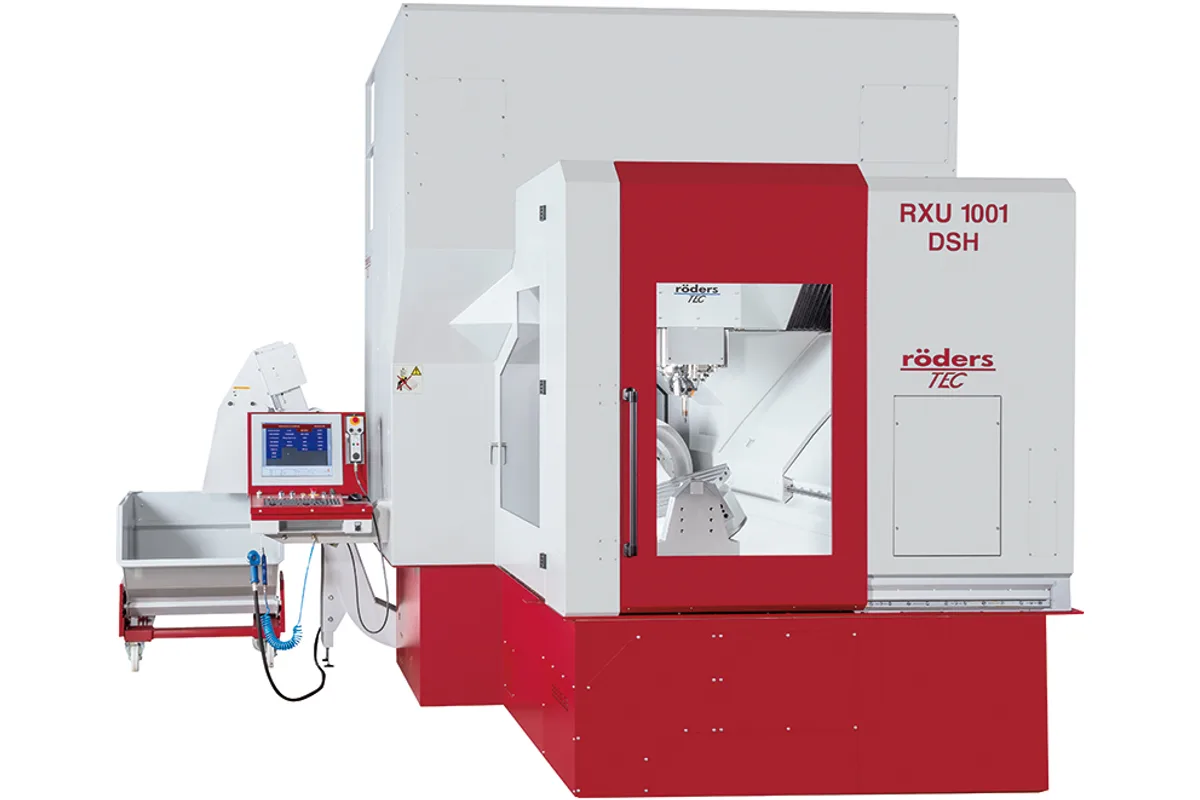

Röders RXU1001DSH
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
machining range
swivelling range
How much does the Röders RXU1001DSH cost?
Price estimate
We do not have a price for the Röders RXU1001DSH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On paper the Röders RXU1001DSH carries the same 5-axis payload as the largest RXP machine: 800 kg (1,764 lb), on the same choice of 400 mm and 600 mm tables, with the same 671 mm (26.4 in) under the spindle nose. The difference is what stands behind the spindle. The RXU1001DSH weighs about 21.0 t and comes with a 67 Nm (S1) HSK A63 spindle as standard.
That spindle turns at up to 24,000 rpm and holds tools up to 35 mm in diameter; a 102 Nm (S1) unit is the largest on offer. Röders calls the rotary-swivel units of the RXU series extremely stable, with torque and linear motors in all axes, and the purpose is plain: this machine is meant to rough hardened material on a tilted table without the unit giving way.
The machining range is 800 mm x 855 mm x 500 mm (31.5 x 33.7 x 19.7 in). The swivelling range is +/-115 degrees, with other ranges on request, and rotation is almost unlimited. Various machine tables are available, including ones with integrated clamping chucks for pallet loading. For grinding, the auxiliary equipment is mounted at the A-axis.
A 24 place changer is standard and chain changers with 40, 75 or more places are options. Chips are moved by 2 screws to a box behind the machine or to an additional conveyor. Plan for W 4,120 mm x L 4,910 mm, depending on configuration, and H 3,600 mm (141.7 in). Like other RXU models it is often built with a second, air-bearing spindle for fine surface finishes.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 800 mm x 855 mm x 500 mm (31.5 x 33.7 x 19.7 in) |
| Swivelling Range | +/-115 degrees (others on request) |
| Rotation Range | Almost unlimited |
| Table Size | 400 mm round or 400 mm square, 600 mm round with two flattened sides or 600 mm round |
| Distance Spindle Nose to Table | 671 mm (26.4 in) |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 24,000 rpm (standard spindle; others on request) |
| Spindle Torque | 67 Nm (S1) (49.4 lb-ft) |
| Spindle Taper | HSK A63 |
| Max Tool Diameter (full magazine) | 35 mm (1.4 in) |
| Tool Capacity | 24 places, optional 40, 75 or more places (chain changer – can be loaded during machining) |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine or with additional chip conveyor |
| Machine Weight | ~21.0 t (~46,296 lb) |
| Required Space | W 4,120 mm x L 4,910 mm (depending on configuration) x H 3,600 mm (162.2 x 193.3 x 141.7 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 67 Nm (S1), 24,000 rpm HSK A63 spindle as standard; 102 Nm (S1) available
- 800 kg (1,764 lb) on the rotary-swivel unit with +/-115 degrees swivel
- Tools up to 35 mm (1.4 in) in diameter
- Tables with integrated clamping chucks for pallet loading are available
- Optical encoders in the rotary axes, with positioning accuracies of 2 arc seconds stated
Limitations
- About 21.0 t and H 3,600 mm (141.7 in) of height
- Standard changer holds 24 tools
- The standard spindle stops at 24,000 rpm
- Floor space of W 4,120 mm x L 4,910 mm depends on configuration, so the layout has to be fixed with the maker
Best For
Frequently Asked Questions
01
Both take 800 kg on 400 mm or 600 mm tables. The RXP950DSH is listed with a 15 kW HSK E50 spindle for tools up to 20 mm and weighs about 15.5 t. The RXU1001DSH has a 67 Nm (S1) HSK A63 spindle for tools up to 35 mm and weighs about 21.0 t.
02
800 mm x 855 mm x 500 mm (31.5 x 33.7 x 19.7 in). The swivelling range is +/-115 degrees, with others on request, and the rotation range is almost unlimited. Feed is 0–60,000 mm/min.
03
Röders states that for grinding, the auxiliary equipment is mounted at the A-axis. The series is also often built as a twin-spindle machine with an air-bearing spindle for very high surface finish requirements.
04
The technical data list 400 mm round or 400 mm square, and 600 mm round with two flattened sides or 600 mm round. Röders adds that various machine tables are available, including those with integrated clamping chucks for pallet loading.
