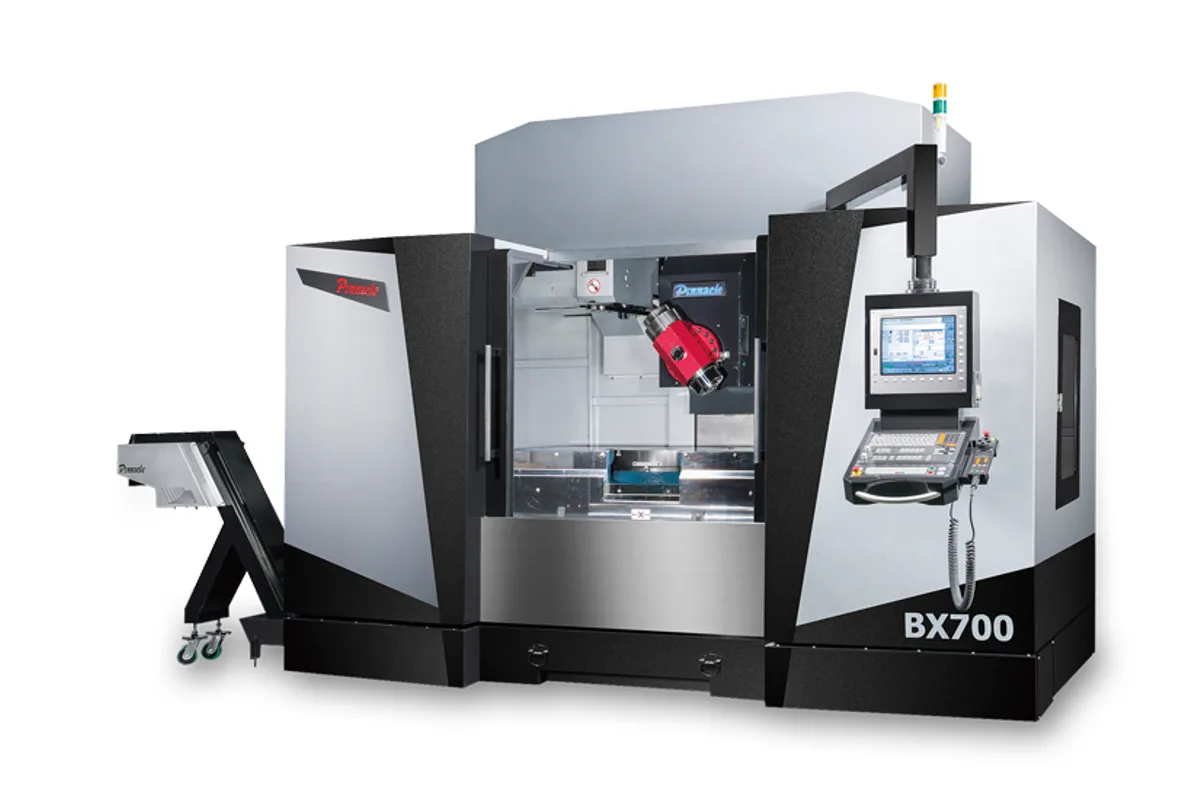

Pinnacle BX700
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Pinnacle BX700 cost?
Price estimate
We do not have a price for the Pinnacle BX700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX700 is a swivel-head 5-axis machining center with a Ø640 mm (Ø25.2 in) direct-drive rotary table built into a 1,600 x 700 mm (63.0 x 27.6 in) main table. Travels are 1,400 mm (55.1 in) in X and 710 mm (28.0 in) in Y, with Z listed as Vertical Milling 680 / Horizontal Milling 810 mm.
Load capacity is the headline. The embedded table carries 1,000 kg (2,205 lb), double the figure of the BX500, and the machine weighs 12,000 kg (26,455 lb). The C axis turns at 50 rpm.
In this base version the B-axis head is worm driven: 16.6 rpm, 1,765 Nm (1,301.9 lb-ft) of clamp torque and a ± 120° range. Worm drive holds position stiffly under a heavy cut, at some expense in speed, and rotary accuracy is 14"/10" for B/C.
The built-in spindle is rated 15 / 19.4 kW (20.1 / 26.0 hp) and 71.6 / 172 Nm (52.8 / 126.9 lb-ft) at up to 15,000 rpm with a DIN40 (HSKA63) taper. Rapids are 36 / 36 / 24 m/min on roller guideways with oil-cooled ball screws. The tool capacity cell for this model is misprinted on the maker's page, so the row is omitted here; the BX700T column of the same table reads 30(40/60).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,600 x 700 mm (63.0 x 27.6 in) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 710 mm (28.0 in) |
| Z Axis Travel | Vertical Milling 680 / Horizontal Milling 810 mm (Vertical Milling 26.8 / Horizontal Milling 31.9 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Distance Spindle Nose to Table Vertical | 110~790 mm (4.3~31.1 in) |
| Distance Spindle Center to Table Horizontal | 220~1,030 mm (8.7~40.6 in) |
| T-Slots | 18 x 125 x 5 (W x D x N mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 760 mm (29.9 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 900 ± 100 kgf |
| Spindle Motor Power | 15 / 19.4 kW (20.1 / 26.0 hp) (con/30 min) |
| Spindle Torque | 71.6 / 172 Nm (52.8 / 126.9 lb-ft) (con/max) |
| B Axis Drive | WORM GEAR |
| B Axis Range | ± 120° |
| B Axis Speed | 16.6 rpm |
| B Axis Clamp Torque | 1,765 Nm (1,301.9 lb-ft) |
| Rotary Table Drive Type | EMBEDDED |
| Rotary Table Type | Direct drive |
| Rotary Table Diameter | Ø640 mm (Ø25.2 in) |
| C Axis Speed | 50 rpm |
| Rotary Table Load | 1,000 kg (2,205 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Tool Magazine Type | PLATE |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 14"/10" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 8"/6" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 450 L |
| Machine Weight | 12,000 kg (26,455 lb) |
| Machine Height | 3,200 mm (126.0 in) |
| Floor Space | 3,890 x 3,180 mm (153.1 x 125.2 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Embedded Ø640 mm (Ø25.2 in) direct-drive table rated for 1,000 kg (2,205 lb)
- 71.6 / 172 Nm (52.8 / 126.9 lb-ft) spindle at up to 15,000 rpm
- B-axis clamp torque of 1,765 Nm (1,301.9 lb-ft)
- 36 / 36 / 24 m/min rapids on a 12,000 kg (26,455 lb) machine
Limitations
- Worm-gear B axis turns at 16.6 rpm
- Vertical milling Z travel is 680 mm against 810 mm horizontal
- Tool capacity is not printed cleanly for this model in the maker's table
Best For
Frequently Asked Questions
01
1,000 kg (2,205 lb). The table is Ø640 mm (Ø25.2 in), embedded in the 1,600 x 700 mm (63.0 x 27.6 in) main table, direct driven and listed at 50 rpm.
02
Vertical Milling 680 / Horizontal Milling 810 mm. The spindle nose is 110~790 mm (4.3~31.1 in) from the table with the head vertical, and the spindle centre 220~1,030 mm (8.7~40.6 in) above it with the head horizontal.
03
The BX700 has a worm-gear B axis at 16.6 rpm. The BX700DD has a direct-drive B axis at 50 rpm with 2,950 Nm (2,175.9 lb-ft) of clamp torque. The BX700T adds turning: an HSK63T spindle and a table speed of 50(M) / 1,200(T) rpm.
04
0.005 mm positioning and 0.003 mm repeatability on the linear axes. On the B/C rotary axes, positioning is 14"/10" and repeatability 8"/6".
