Mazak VC-Ez X

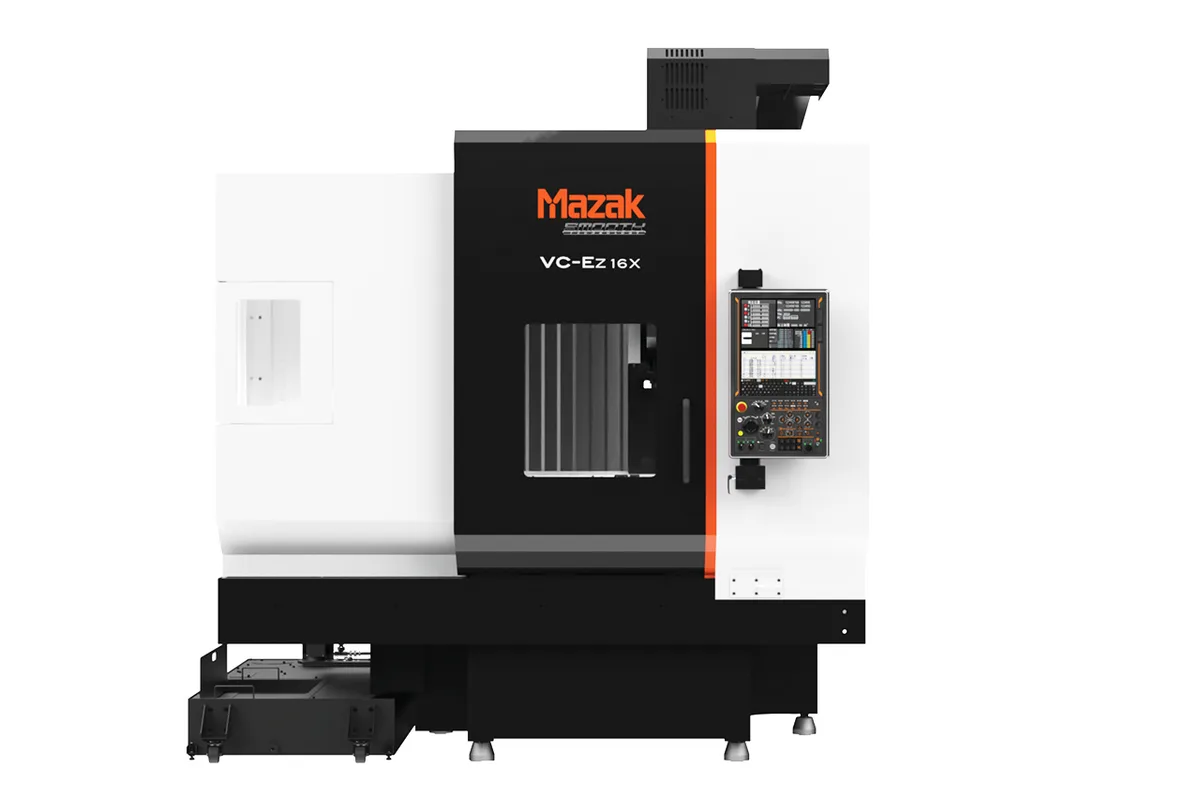

Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak VC-Ez X cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak VC-Ez X series is a pair of 5-axis machining centers built around a roller gear trunnion and rotary table: the VC-Ez 16X and the VC-Ez 20X. Both carry a CAT No.40 spindle at 12,000 rpm and 30 tools, and the rotary C-axis turns ±360°.
The two sizes are easy to tell apart. The VC-Ez 16X has 28 in (711 mm) of X travel with 16 in (406 mm) in both Y and Z. The VC-Ez 20X has 32 in (813 mm) of X with 20 in (508 mm) in both Y and Z. The step looks small on paper, but on a trunnion machine the usable part size is set by what clears the spindle nose and the column when the table is tilted, so Y and Z matter more than X. Draw the part and its fixture at full tilt before deciding that the smaller model is enough.
Spindle power is given as 18.5 kW (25 HP) to 19 kW (25 HP) on a 5-min. rating. That is a short-term figure, and the series table has no continuous rating and no torque, so it is not a number to compare with continuous ratings elsewhere.
Mazak describes the structure in some detail. The linear axes run on Hybrid MX Roller Guideway Systems, the ballscrews are pre-tensioned and supported at both ends, the spindle is thermally controlled, and Thermal Shield monitors castings and ambient conditions to make axis adjustments. The trunnion and rotary table are roller gear driven, which Mazak presents as the basis for fast, accurate 5-axis motion.
On the control side Mazak lists five process home screens, MAZATROL Conversational Programming, QUICK MAZATROL, Intelligent Pocket Milling and SMS, the SMOOTH machining configuration. The series table itself is short. It gives no tilt-axis range, table size, table load or rapid rates, and those decide whether a given part fits.
Full Specifications
| Parameter | Value |
|---|---|
| Models in Series | 2 models: VC-Ez 16X, VC-Ez 20X |
| Spindle Taper | CAT No.40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Motor 5 Min Rating | 18.5 kW (25 HP) (5-min. rating) to 19 kW (25 HP) (5-min. rating) |
| Tool Capacity | 30 tools |
| X-Axis Travel | 28 in (711 mm) to 32 in (813 mm) |
| Y-Axis Travel | 16 in (406 mm) to 20 in (508 mm) |
| Z-Axis Travel | 16 in (406 mm) to 20 in (508 mm) |
| C Axis Range | ±360° |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Roller gear trunnion and rotary table, with the C-axis listed at ±360°
- Two sizes: 28 in (711 mm) × 16 in (406 mm) × 16 in (406 mm) on the VC-Ez 16X and 32 in (813 mm) × 20 in (508 mm) × 20 in (508 mm) on the VC-Ez 20X
- CAT No.40 spindle at 12,000 rpm with 30 tools on both models
- Roller guideways on all linear axes and pre-tensioned ballscrews supported at both ends
- MAZATROL Conversational Programming, QUICK MAZATROL and Intelligent Pocket Milling are listed for the series
Limitations
- Power is stated only on a 5-min. rating, 18.5 kW (25 HP) to 19 kW (25 HP), with no continuous rating or torque
- The series table gives no tilt-axis range, table size or table load
- Z travel is 16 in (406 mm) on the VC-Ez 16X, which a tall fixture and a long tool use up quickly
- 30 tools is the only magazine size in the series table
Best For
Frequently Asked Questions
01
Travel. The VC-Ez 16X has 28 in (711 mm) of X and 16 in (406 mm) of Y and Z. The VC-Ez 20X has 32 in (813 mm) of X and 20 in (508 mm) of Y and Z. Both list a CAT No.40 spindle at 12,000 rpm and 30 tools.
02
Mazak describes a roller gear trunnion and rotary table for 5-axis machining. The series table lists the C-axis range as ±360°. It does not state the range of the tilting axis, so take that from the table of the individual model before checking part clearance.
03
The series table gives 18.5 kW (25 HP) to 19 kW (25 HP) on a 5-min. rating, with a top speed of 12,000 rpm and a CAT No.40 taper. A 5-min. rating is a short-term figure. Neither continuous power nor torque is listed for the series.
04
According to Mazak: Hybrid MX Roller Guideway Systems on all linear axes, a pre-tensioned ballscrew system supported at both ends, precision-balanced spindle cartridges and a thermally controlled spindle. Mazak says the roller guideways give higher positioning accuracy than boxways and nearly twice the rapid traverse rate.
05
MAZATROL Conversational Programming, QUICK MAZATROL, Intelligent Pocket Milling and SMS (SMOOTH machining configuration), along with five process home screens and a chip conveyor interface. Mazak's series page does not describe these functions in more detail.
06
The VC-Ez 20X has 32 in (813 mm) × 20 in (508 mm) × 20 in (508 mm) of travel and 30 tools. The HCR has 29 in (737 mm) on each of X, Y and Z, 40 tools and a 1,102 lb (500 kg) table load. Both use CAT No.40 at 12,000 rpm.
