Hwacheon M2-5AX

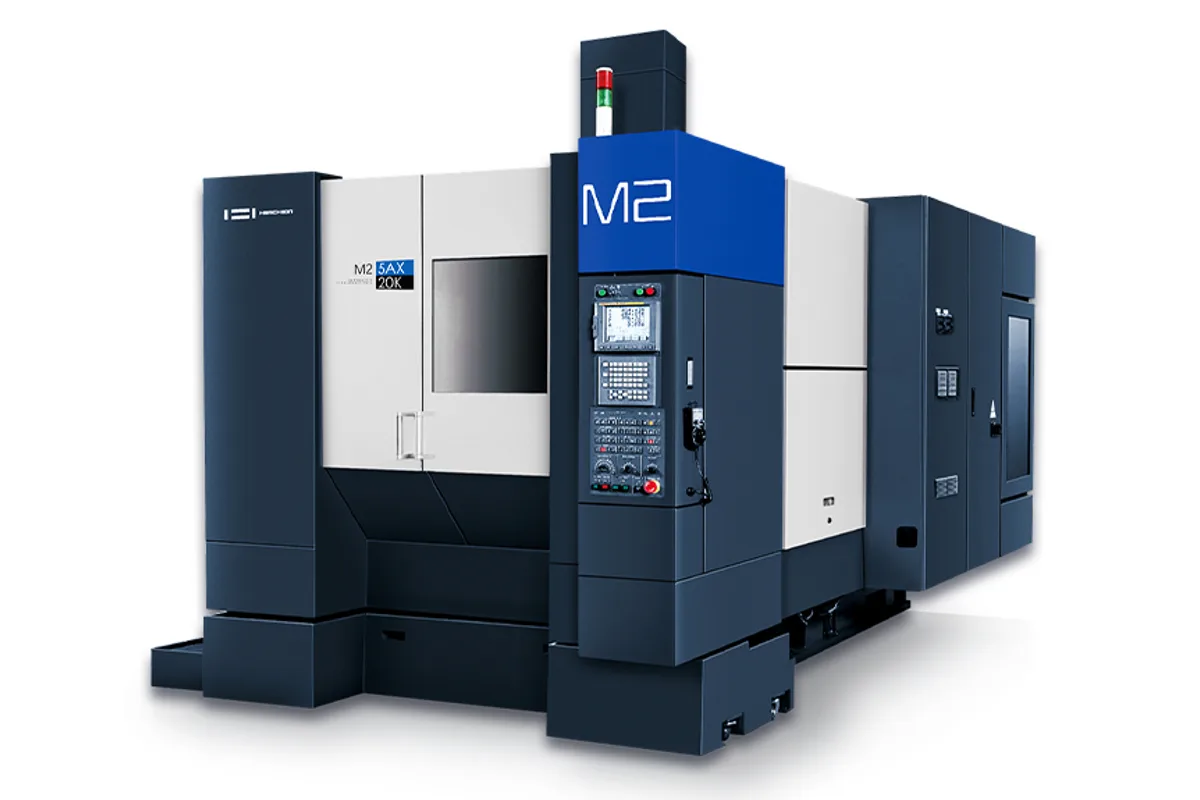

Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon M2-5AX cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Hwacheon. Configuration moves it a long way.
Overview
The Hwacheon M2-5AX is a five-axis machining center with a Ø500 mm (Ø19.7 in) table and quick linear axes, rapiding at 50 m/min (1,969 ipm) on X, Y and Z. Travels are 750 mm (29.5 in) in X, 650 mm (25.6 in) in Y and 500 mm (19.7 in) in Z. Unlike the B-axis M1-5AX, the M2 tilts on an A axis, from +30° to -120°, with 360° of C rotation.
Two spindles are offered. The 20K turns 20,000 rpm with a 37 / 18.5 kW (49.6 / 24.8 hp) rating on Ø70 mm (Ø2.8 in) bearings, in BBT-40 with CAT-40 as an option. The 30K turns 30,000 rpm with 18.5 / 13 kW (24.8 / 17.4 hp) on Ø45 mm (Ø1.8 in) bearings and uses HSK-E40. Both are built-in motor spindles with oil-jet lubrication and jacket cooling.
The spindle choice also sets the tool envelope, and the difference is large. On the 20K a tool may be Ø80 mm (Ø3.1 in) with adjacent tools in place or Ø170 mm (Ø6.7 in) without, 300 mm (11.8 in) long and 8 kg (17.6 lb). On the 30K the limits fall to Ø60 mm (Ø2.4 in) and Ø90 mm (Ø3.5 in), 250 mm (9.8 in) and 3 kg (6.6 lb). The magazine holds 30 tools, memory random, and the pack lists no larger option.
The rotary axes are where the M2 is slow. A indexes at 8.3 rpm and C at 33.3 rpm, so programs with frequent large tilts spend time on A even though the linear axes are quick. The table is rated 300 kg (661 lb) with five 14 mm T-slots at 80 mm pitch, and spindle nose to table runs from 75 to 575 mm (3.0 to 22.6 in). The M3-5AX steps up to a Ø700 x 540 mm (Ø27.6 x 21.3 in) table rated 800 kgf (1,764 lb) and a 40-tool magazine.
The control is a Fanuc 31i-B5. Site needs are 65 kVA, air at 0.5 to 0.7 MPa and 690 NL/min, and room for a 3,025 x 3,695 x 3,090 mm (119.1 x 145.5 x 121.7 in) machine of 11,000 kg (24,251 lb). The coolant tank holds 400 L (106 US gal).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| A Axis Range | +30° to -120° |
| C Axis Range | 360° |
| Distance Spindle Nose to Table | 75 to 575 mm (3.0 to 22.6 in) |
| Table Size | Ø500 mm (Ø19.7 in) |
| Max Table Load | 300 kg (661 lb) |
| T-Slots | 14 mm x 80 mm pitch, 5 slots |
| Max Spindle Speed | 20,000 rpm (20K) / 30,000 rpm (30K) |
| Spindle Motor Power | 37 / 18.5 kW (49.6 / 24.8 hp) (20K) / 18.5 / 13 kW (24.8 / 17.4 hp) (30K) |
| Spindle Taper | BBT-40, opt. CAT-40 (20K) / HSK-E40 (30K) |
| Pull Stud | MAS P40T-1 (45°) (20K) |
| Spindle Bearing ID | Ø70 mm (Ø2.8 in) (20K) / Ø45 mm (Ø1.8 in) (30K) |
| Spindle Drive | Built-in motor |
| Spindle Lubrication | Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 50 / 50 / 50 m/min (1,969 ipm) |
| Rapid Traverse AC | A 8.3 rpm / C 33.3 rpm |
| Tool Capacity | 30 |
| Tool Selection | Memory random |
| Max Tool Diameter (full magazine) | Ø80 mm (Ø3.1 in) with adjacent tools / Ø170 mm (Ø6.7 in) without (20K); Ø60 mm (Ø2.4 in) / Ø90 mm (Ø3.5 in) (30K) |
| Max Tool Length | 300 mm (11.8 in) (20K) / 250 mm (9.8 in) (30K) |
| Max Tool Weight | 8 kg (17.6 lb) (20K) / 3 kg (6.6 lb) (30K) |
| Power Requirement | 65 kVA |
| Air Supply | 0.5 to 0.7 MPa, 690 NL/min |
| Coolant Tank | 400 L (106 US gal) |
| Machine Dimensions | 3,025 x 3,695 x 3,090 mm (119.1 x 145.5 x 121.7 in) (L x W x H) |
| Machine Weight | 11,000 kg (24,251 lb) |
| CNC Control | Fanuc 31i-B5 |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 50 m/min (1,969 ipm) rapids on all three linear axes
- Choice of a 20,000 rpm spindle rated 37 / 18.5 kW (49.6 / 24.8 hp) or a 30,000 rpm HSK-E40 spindle
- A axis from +30° to -120° with 360° of C rotation on a Ø500 mm (Ø19.7 in) table
- On the 20K, tools up to Ø170 mm (Ø6.7 in) fit with the adjacent pockets empty
- Spindle nose reaches within 75 mm (3.0 in) of the table
Limitations
- The A axis rapids at only 8.3 rpm, against 33.3 rpm on C
- Table load is 300 kg (661 lb)
- The magazine is 30 tools with no larger option listed
- On the 30K spindle tools are limited to Ø60 mm (Ø2.4 in) with neighbours, 250 mm (9.8 in) long and 3 kg (6.6 lb)
Best For
Frequently Asked Questions
01
X, Y and Z rapid at 50 m/min (1,969 ipm). The rotary axes are slower: A at 8.3 rpm and C at 33.3 rpm. A covers +30° to -120° and C turns 360°, so parts that need large tilts between operations spend more time on the A axis than on linear moves.
02
The 20K (20,000 rpm, 37 / 18.5 kW, BBT-40 or optional CAT-40) carries tools up to 300 mm (11.8 in) long and 8 kg (17.6 lb) and suits general work. The 30K (30,000 rpm, 18.5 / 13 kW, HSK-E40) is for small tools: Ø60 mm (Ø2.4 in) with neighbours, 250 mm (9.8 in) long and 3 kg (6.6 lb) at most.
03
The M1-5AX has a Ø300 mm (Ø11.8 in) table rated 200 kg (441 lb), spindles of 20,000 or 32,000 rpm and a 30-tool magazine with 40 or 60 as options. The M2-5AX has a Ø500 mm (Ø19.7 in) table rated 300 kg (661 lb), spindles of 20,000 or 30,000 rpm and 30 tools, and it tilts on an A axis rather than a B axis.
04
A 65 kVA supply, compressed air at 0.5 to 0.7 MPa with 690 NL/min, and floor for a 3,025 x 3,695 mm (119.1 x 145.5 in) machine that is 3,090 mm (121.7 in) tall. It weighs 11,000 kg (24,251 lb) and has a 400 L (106 US gal) coolant tank.
