Pinnacle BX700T

Q: How much does the Pinnacle BX700T cost?

The price estimate for the Pinnacle BX700T is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-bx700t#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

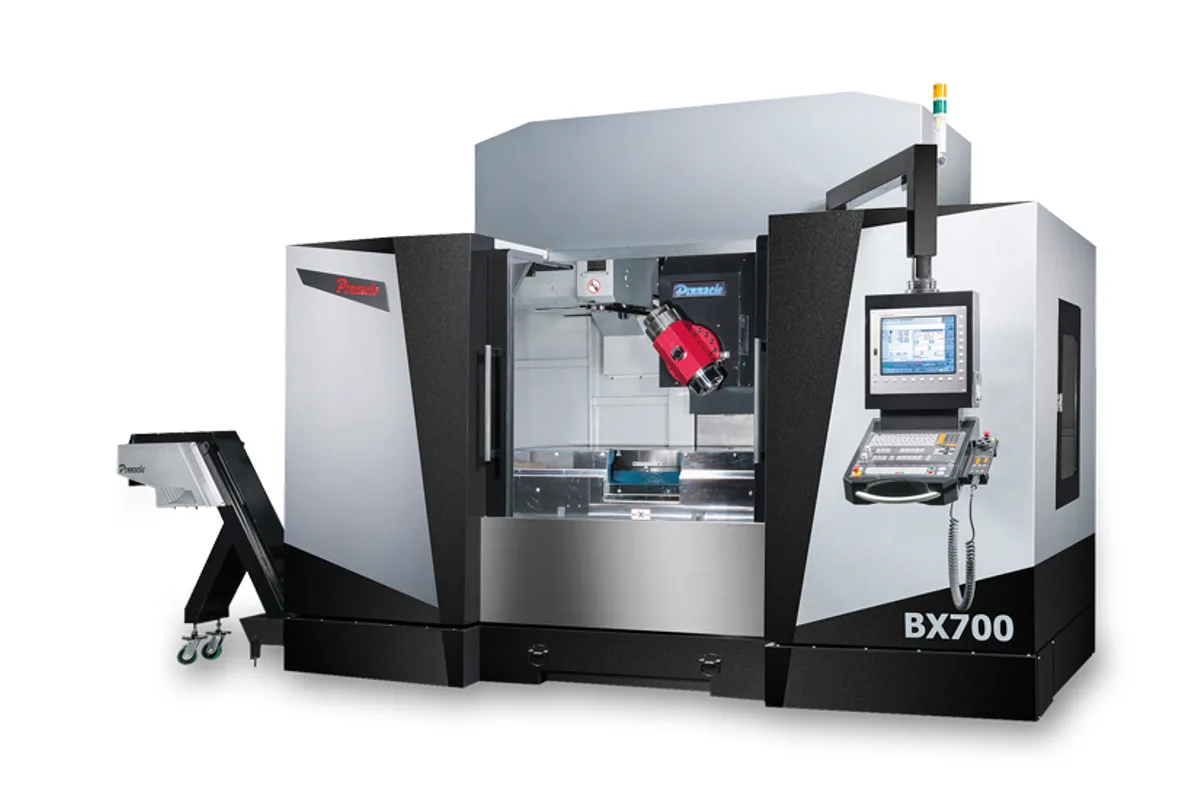

Pinnacle BX700/BX700DD/BX700T/BX500/BX500DD series

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Max Spindle

15,000 rpm

Spindle Taper

HSK63T

Tool Capacity

30(40/60)

Table Size

1,600 x 700 mm (63.0 x 27.6 in)

Spindle Power

19 / 23 kW (25.5 / 30.8 hp) (con/30 min)

Accuracy

0.005 mm

How much does the Pinnacle BX700T cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle BX700T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle BX700T adds turning to the BX700DD. Its embedded Ø640 mm (Ø25.2 in) table is listed at 50(M) / 1,200(T) rpm, milling and turning, and the spindle takes HSK63T tooling so that a turning tool can be locked in the milling spindle.

For a part that is mostly round but carries milled features, this removes a transfer between a lathe and a machining center. The table load reflects the two modes: 800(M) / 500(T) kg. So a turned part may weigh up to 500 kg, and anything heavier is milled only.

The spindle is the strongest in the BX700 group, 19 / 23 kW (25.5 / 30.8 hp) and 93 / 239 Nm (68.6 / 176.3 lb-ft), with a draw bar force of 1,800 ± 100 kgf, twice that of the milling-only versions. Maximum speed is 15,000 rpm.

The B-axis head is direct drive at 50 rpm with a ± 120° range, which lets a turning tool be set at an angle to the work. Linear travels are 1,400 mm (55.1 in) in X and 710 mm (28.0 in) in Y, with Z given as Vertical Milling 680 / Horizontal Milling 780 mm. Tool capacity is 30(40/60). The machine weighs 12,000 kg (26,455 lb).

Full Specifications

Parameter	Value
Table Size	1,600 x 700 mm (63.0 x 27.6 in)
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	710 mm (28.0 in)
Z Axis Travel	Vertical Milling 680 / Horizontal Milling 780 mm (Vertical Milling 26.8 / Horizontal Milling 30.7 in)
Max Table Load	1,000 kg (2,205 lb)
Distance Spindle Nose to Table Vertical	100~780 mm (3.9~30.7 in)
Distance Spindle Center to Table Horizontal	250~1,030 mm (9.8~40.6 in)
T-Slots	18 x 125 x 5 (W x D x N mm)
Spindle Taper	HSK63T
Spindle Bearing Inner Diameter	Ø70 mm (Ø2.8 in)
Spindle Center to Column	780 mm (30.7 in)
Max Spindle Speed	15,000 rpm
Draw Bar Force	1,800 ± 100 kgf
Spindle Motor Power	19 / 23 kW (25.5 / 30.8 hp) (con/30 min)
Spindle Torque	93 / 239 Nm (68.6 / 176.3 lb-ft) (con/max)
B Axis Drive	Direct drive
B Axis Range	± 120°
B Axis Speed	50 rpm
B Axis Clamp Torque	2,950 Nm (2,175.9 lb-ft)
Rotary Table Drive Type	EMBEDDED
Rotary Table Type	Direct drive
Rotary Table Diameter	Ø640 mm (Ø25.2 in)
C Axis Speed	50(M) / 1,200(T) rpm
Rotary Table Load	800(M) / 500(T) kg (1,764(M) / 1,102(T) lb)
Rapid Traverse Xyz	36 / 36 / 24 m/min
Tool Magazine Type	PLATE
Tool Capacity	30(40/60)
Max Tool Diameter (full magazine)	Ø75 mm (Ø3.0 in)
Positioning Accuracy	0.005 mm
Positioning Accuracy Rotary Axes	10"/10" (BC rotary (sec))
Repeatability	0.003 mm
Repeatability Rotary Axes	6"/6" (BC rotary (sec))
Air Requirement	6 kg/cm²
Power Requirement	40 kVA
Coolant Tank Capacity	450 L
Machine Weight	12,000 kg (26,455 lb)
Machine Height	3,200 mm (126.0 in)
Floor Space	3,890 x 3,180 mm (153.1 x 125.2 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Table speed of 50(M) / 1,200(T) rpm for milling and turning in one setup
HSK63T spindle with 19 / 23 kW (25.5 / 30.8 hp) and 93 / 239 Nm (68.6 / 176.3 lb-ft)
Direct-drive B axis at 50 rpm over ± 120°
Tool capacity of 30(40/60)

Limitations

Table load drops to 800(M) / 500(T) kg from the 1,000 kg (2,205 lb) of the BX700DD
Horizontal milling Z travel is 780 mm
Turning diameter is bounded by a Ø640 mm (Ø25.2 in) table and 710 mm (28.0 in) of Y

Best For

Round parts with milled features finished in one clamping Rings, housings and flanges that need turning and 5-axis milling Shops that want to avoid a lathe-to-mill transfer

Frequently Asked Questions

01 Can the Pinnacle BX700T turn as well as mill?

Yes. The rotary table rotation speed is listed as 50(M) / 1,200(T) rpm, the second figure being the turning speed, and the spindle taper is HSK63T. Maximum table load is 800(M) / 500(T) kg.

02 How powerful is the BX700T spindle?

19 / 23 kW (25.5 / 30.8 hp) with 93 / 239 Nm (68.6 / 176.3 lb-ft) of torque, continuous and maximum. Maximum speed is 15,000 rpm and the draw bar force 1,800 ± 100 kgf.

03 How does the BX700T differ from the BX700DD?

Both have direct-drive B and C axes. The BX700T has the turning-capable table, an HSK63T spindle and a larger motor; the BX700DD has a DIN40 (HSKA63) spindle with 15 / 19.4 kW (20.1 / 26.0 hp) and a 1,000 kg (2,205 lb) table load.

04 What are the travels of the BX700T?

1,400 mm (55.1 in) in X and 710 mm (28.0 in) in Y, with Z listed as Vertical Milling 680 / Horizontal Milling 780 mm. The spindle centre is 780 mm (30.7 in) from the column.
