Palmary PCB-6050

Q: How much does the Palmary PCB-6050 cost?

The price estimate for the Palmary PCB-6050 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/palmary-pcb-6050#price; the request is passed to Palmary or an authorised dealer.

Specs verified 2026-10-05 · palmary.com Updated 2026-10-05

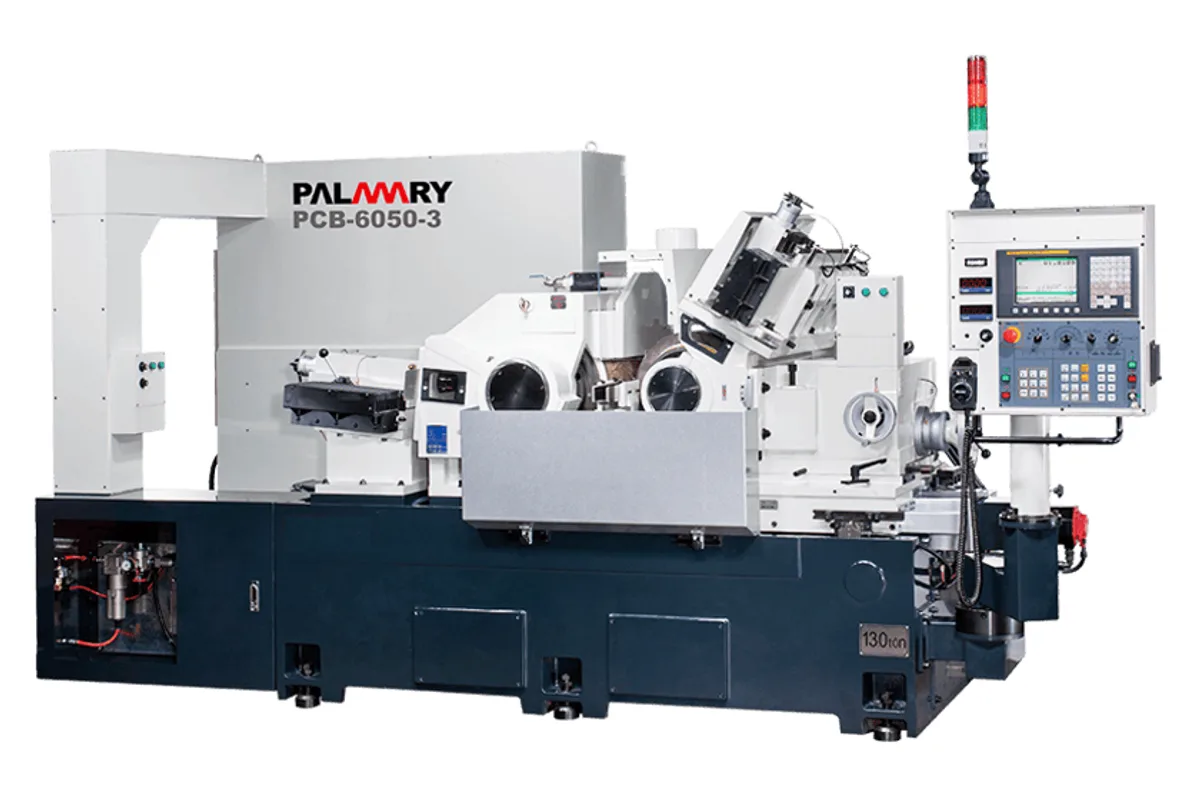

Palmary PCB-6050 / 6060 series CNC centerless grinder

Image: palmary.com, Palmary

Key Specifications

grinding diameter range

Ø1~Ø150 mm

wheel size

Ø610 x 510 x Ø355.6 mm (24.0 x 20.1 x 14.0 in)

wheel peripheral speed

40 m/s (opt. 45 m/s)

grinding wheel dressing device

Single-point dressing device / (opt.) Diamond roller dressing device

regulating wheel size

Ø405 x 510 x Ø254 mm (15.9 x 20.1 x 10.0 in)

regulating wheel speed

10-200 rpm (variable speed)

How much does the Palmary PCB-6050 cost?

Price estimate

Uncertain

We do not have a price for the Palmary PCB-6050 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Palmary PCB-6050 is one of the two largest CNC centerless grinders Palmary lists, with a Ø610 mm grinding wheel 510 mm wide driven by a 50 HP (37 kW) motor. It grinds Ø1 to Ø150 mm and weighs 13,000 kg (28,660 lb).

The weight tells the story: almost twice that of the PCB-6040 for a wheel about a quarter wider. A half-metre wheel makes very large grinding forces in infeed, and the frame, the double support spindle and the regulating wheel assembly are scaled up to hold size along the whole length. The regulating wheel is Ø405 mm by 510 mm, on a 254 mm bore, with a 5 kW (6.7 hp) servo.

Wheel speed is given as 40 m/s, with 45 m/s (8,858 ft/min) as an option, a little lower as standard than on the smaller PCB machines. Regulating wheel tilt is ±5° and swivel ±2°. Dressing is by single point as standard, with a diamond roller device optional.

Several rows of Palmary's table are empty for this model, including the dresser offset, the slides and the spindle lubrication tank, so the published data is thinner than for the smaller machines. The feed slide is described as a hand scraped V and flat, and grinding wheel spindle lubrication as oil mist. CNC control from 1 to 6 axes is offered, with a FANUC controller. A grinding wheel exchanger and jib crane are optional, and worth having with a wheel of this size.

Full Specifications

Parameter	Value
Grinding Diameter Range	Ø1~Ø150 mm
Wheel Size	Ø610 x 510 x Ø355.6 mm (24.0 x 20.1 x 14.0 in)
Wheel Peripheral Speed	40 m/s (opt. 45 m/s)
Grinding Wheel Dressing Device	Single-point dressing device / (opt.) Diamond roller dressing device
Regulating Wheel Size	Ø405 x 510 x Ø254 mm (15.9 x 20.1 x 10.0 in)
Regulating Wheel Speed	10-200 rpm (variable speed)
Regulating Wheel Tilt Angle	±5°
Regulating Wheel Swivel Angle	±2°
Regulating Wheel Dresser Swivel Angle	±5°
Grinding Wheel Motor	50 HP x 4P (37 kW)
Regulating Wheel Motor	5 kW (6.7 hp) servo motor
Coolant Pump Motor	1 HP x 2P (0.75 kW)
Grinding Wheel Spindle Lubrication	Oil mist type
Regulating Wheel Spindle Lubrication	Oil grease type
Slide Lubrication	Auto lubricator (LUBE)
CNC Control	FANUC
Coolant Tank	140 L (37.0 gal)
Slide Lubrication Tank	4 L (1.1 gal)
Machine Weight	13,000 kg (28,660 lb)

Specifications sourced from palmary.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø610 x 510 mm grinding wheel on a 50 HP (37 kW) motor
13,000 kg (28,660 lb) structure with a double support wheel spindle
Ø405 mm regulating wheel with ±5° of tilt
CNC control from 1 to 6 axes, according to Palmary

Limitations

Standard wheel speed is 40 m/s; 45 m/s (8,858 ft/min) is an option
Several rows of the published table are blank for this model
Coolant tank of only 140 L (37.0 gal) on a 50 HP machine
Wheel exchanger and jib crane are optional accessories

Best For

Infeed grinding of long parts up to about 510 mm Large rollers and shafts up to Ø150 mm in volume Very high through-feed rates on bar Dedicated mass-production lines

Frequently Asked Questions

01 How large is the Palmary PCB-6050?

It weighs 13,000 kg (28,660 lb). The grinding wheel is Ø610 x 510 mm on a 355.6 mm bore and the regulating wheel Ø405 x 510 mm on a 254 mm bore. No floor dimensions are given on the page.

02 What is the wheel speed of the PCB-6050?

The table gives a linear velocity of 40 m/s as standard with 45 m/s (8,858 ft/min) as an option. The grinding wheel motor is 50 HP (37 kW), 4-pole.

03 What diameters can the PCB-6050 grind?

The standard grinding range is Ø1 to Ø150 mm, the same as the PCB-6030. The difference is wheel width and power: 510 mm and 50 HP (37 kW) here, against 305 mm and 30 HP (22 kW) on the PCB-6030.

04 Is there a wider version of the PCB-6050?

Yes. The PCB-6060 has a Ø610 x 610 mm grinding wheel and a Ø405 x 610 mm regulating wheel. Its motor and listed weight are the same as those of the PCB-6050 in Palmary's table.
