Star SU TRU TECH T23XM

Q: How much does the Star SU TRU TECH T23XM cost?

The price estimate for the Star SU TRU TECH T23XM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/star-su-tru-tech-t23xm#price; the request is passed to Star SU or an authorised dealer.

Specs verified 2026-10-05 · star-su.com Updated 2026-10-05

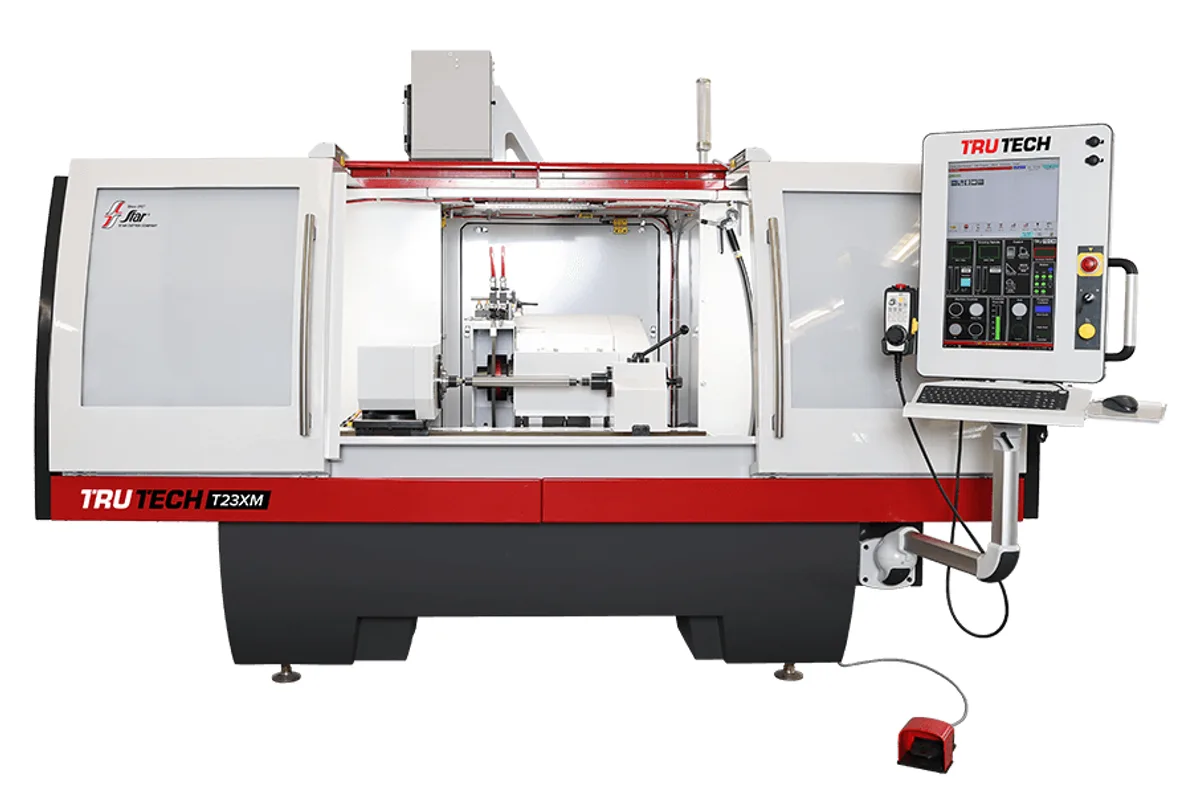

Star SU TRU TECH T23XM precision OD grinder

Image: star-su.com, Star SU

Key Specifications

Spindle Power

7 hp (5.2 kW) variable; 10 hp (7.5 kW) optional

Accuracy

±0.00010 in (0.00254 mm)

Repeatability

±0.000050 in (0.00127 mm)

max grind length

20 in (500 mm) (distance between centers)

max grind diameter

8 in (200 mm)

x axis travel

20 in (500 mm)

How much does the Star SU TRU TECH T23XM cost?

Price estimate

Uncertain

We do not have a price for the Star SU TRU TECH T23XM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Star SU TRU TECH T23XM is the larger cylindrical grinder of the TRU TECH line, a precision OD machine with 20 in (500 mm) between centers and an 8 in (200 mm) maximum grind diameter. It carries a 14 in (350 mm) wheel on a 7 hp (5.2 kW) variable speed spindle, with 10 hp (7.5 kW) optional.

The wheel speed range is 500-3000 RPM. X travel is 20 in (500 mm) and Y travel is 8 in (200 mm), with maximum velocities of 50 in/min in X and 60 in/min in Y. Star Cutter lists an input increment of 0.000010 in (0.000254 mm), accuracy of ±0.00010 in (0.00254 mm) and repeatability of ±0.000050 in (0.00127 mm).

Tapers can be set mechanically as well as in the program. The workhead adjusts through ±45 degrees and the table through ±8 degrees, and the workhead is driven by a 1.3 HP motor at 50-600 RPM with an MT-4 taper. For bores, a 1/2 HP ID spindle is an option.

The machine is fully enclosed for high pressure coolant and stands on a 2.5-ton polymer base with precision ball screws. Control is a Mitsubishi CNC with a touch screen pendant and icon based conversational software, and profiles are ground with a standard 1A1 wheel in profile, plunge or peel mode. It ships on two pallets at 10,000 lbs (4,536 kg) and needs a 30 Amps supply at 208-230V 60 Hz.

Full Specifications

Parameter	Value
Max Grind Length	20 in (500 mm) (distance between centers)
Max Grind Diameter	8 in (200 mm)
X Axis Travel	20 in (500 mm)
Y Axis Travel	8 in (200 mm)
Wheel Size	14 in (350 mm) standard
Wheel Speed	500-3000 RPM
Max Velocity	X axis: 50 in/min (1,270 mm/min); Y axis: 60 in/min (1,524 mm/min)
Input Increment	0.000010 in (0.000254 mm)
Positioning Accuracy	±0.00010 in (0.00254 mm)
Repeatability	±0.000050 in (0.00127 mm)
Spindle Motor Power	7 hp (5.2 kW) variable; 10 hp (7.5 kW) optional
Workhead Motor	1.3 HP / 1 kW, 50-600 RPM, MT-4 taper
Workhead Angle Adjustment	±45 degrees
Table Angle Adjustment	±8 degrees
ID Spindle Motor	1/2 HP (optional)
Power Requirement	30 Amps: 208-230V 60 Hz
Shipping Dimensions	Pallet #1: 40 in x 48 in x 60 in (1,016 x 1,219 x 1,524 mm); Pallet #2: 91 in x 90 in x 65 in (2,311 x 2,286 x 1,651 mm)
Shipping Weight	10,000 lbs (4,536 kg)

Specifications sourced from star-su.com — verified 2026-10-05

Strengths & Limitations

Strengths

14 in (350 mm) wheel on a 7 hp (5.2 kW) variable speed spindle, with 10 hp (7.5 kW) optional
Accuracy of ±0.00010 in (0.00254 mm) and repeatability of ±0.000050 in (0.00127 mm)
Workhead adjusts ±45 degrees and the table ±8 degrees for taper work
Fully enclosed for high pressure coolant, on a 2.5-ton polymer base
Profile, plunge and peel grinding with a standard 1A1 wheel

Limitations

Maximum grind diameter is 8 in (200 mm), an inch less than the 9 in (229 mm) of the TRU TECH TT1020M
Axis velocities are 50 in/min in X and 60 in/min in Y, so long traverses are slow
The ID spindle is a 1/2 HP option, suited to light internal work
Shipping weight is 10,000 lbs (4,536 kg) on two pallets, which sets the rigging plan

Best For

OD profile grinding of tight tolerance cylindrical parts up to 20 in (500 mm) long Peel grinding of stepped blanks with a 14 in (350 mm) wheel Tapered parts set with the ±45 degrees workhead or ±8 degrees table adjustment Work that needs high pressure coolant inside a full enclosure

Frequently Asked Questions

01 What size parts does the TRU TECH T23XM grind?

Up to 20 in (500 mm) between centers and up to 8 in (200 mm) in grind diameter. X travel is 20 in (500 mm) and Y travel is 8 in (200 mm). The standard wheel is 14 in (350 mm).

02 What spindle power does the TRU TECH T23XM have?

The wheel spindle motor is 7 hp (5.2 kW) with variable speed, and 10 hp (7.5 kW) is optional. Wheel speed runs from 500 to 3,000 RPM. The workhead has its own 1.3 HP motor running at 50-600 RPM, and an optional ID spindle is driven by a 1/2 HP motor.

03 How accurate is the TRU TECH T23XM?

Star Cutter lists accuracy of ±0.00010 in (0.00254 mm) and repeatability of ±0.000050 in (0.00127 mm), with an input increment of 0.000010 in (0.000254 mm). The machine is built on a 2.5-ton polymer base with precision ball screws.

04 What control does the TRU TECH T23XM use?

A Mitsubishi CNC with a touch screen pendant. Programs are built in icon based conversational software, and profiles are ground with a standard 1A1 wheel. In-process dressing is a standard feature; probing and automatic wheel dressing are options.
