Palmary PCB-6040
Image: palmary.com, Palmary
Key Specifications
grinding diameter range
wheel size
wheel peripheral speed
grinding wheel dressing device
regulating wheel size
regulating wheel speed
How much does the Palmary PCB-6040 cost?
Price estimate
We do not have a price for the Palmary PCB-6040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

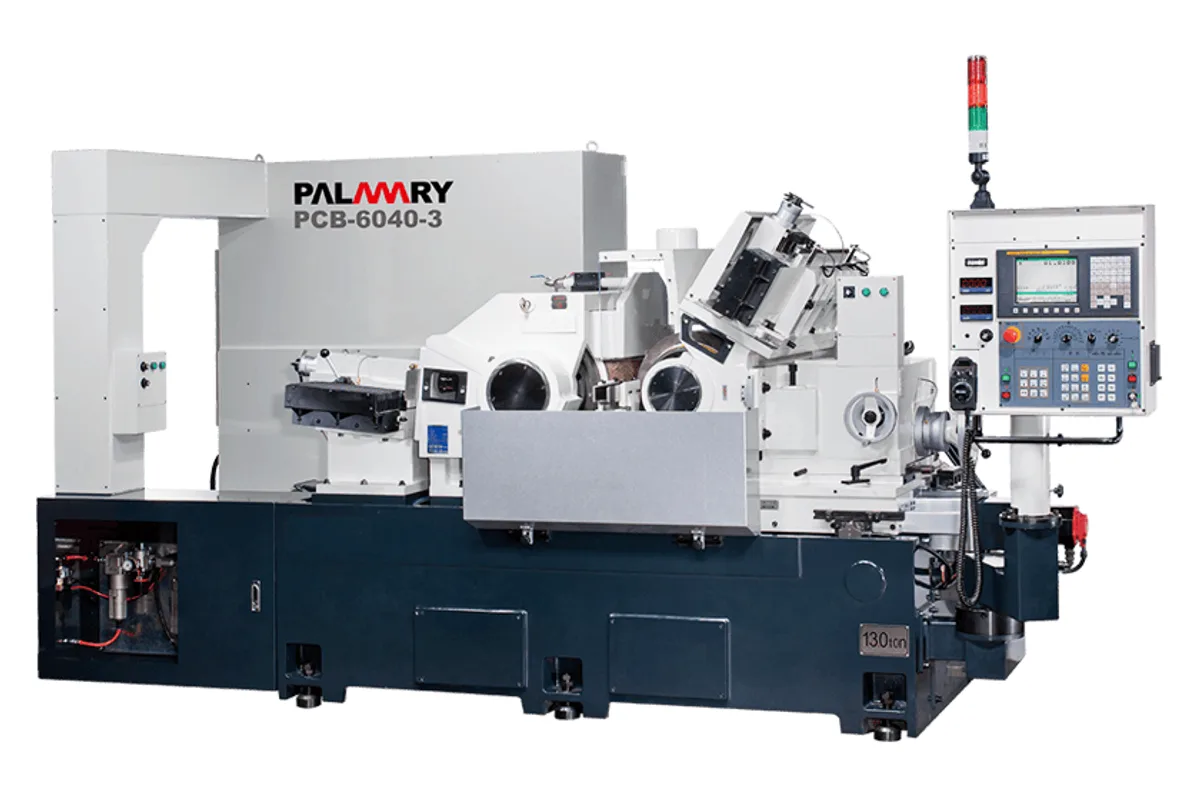

The Palmary PCB-6040 is a CNC centerless grinder with wheels 405 mm wide: a Ø610 mm grinding wheel and a Ø355 mm regulating wheel. It grinds Ø1 to Ø150 mm and is the machine in Palmary's photograph and video for this pair of models, shown in the video with a gantry swinging type loading device.
A 405 mm grinding zone is production equipment. Palmary's summary of the pair is short: super rigid structure, double support grinding wheel spindle, wider wheel suitable for efficient mass production. The grinding wheel motor is 40 HP (30 kW), up from 30 HP on the PCB-6030, and wheel speed is 45 m/s (8,858 ft/min).
The lubrication columns of the table differ between the two models. For the PCB-6040 both the grinding wheel and the regulating wheel spindle are listed with an automatic lubricator, where the PCB-6030 has oil mist and grease. If spindle lubrication type matters to your maintenance practice, have Palmary confirm which applies.
The regulating wheel is driven by a 5 kW (6.7 hp) servo at 10 to 200 rpm. It tilts +5° to -1° and swivels ±2°; its dresser swivels ±5° with a 0 to 20 mm offset. The feed slide is a hand scraped V and flat. Wheel and flange are formed in one piece with the spindle on both sides, according to the accessory list, so wheel changes are a planned job: a grinding wheel exchanger and jib crane are options. Weight is 7,000 kg (15,432 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Grinding Diameter Range | Ø1~Ø150 mm |
| Wheel Size | Ø610 x 405 x Ø304.8 mm (24.0 x 15.9 x 12.0 in) |
| Wheel Peripheral Speed | 45 m/s (8,858 ft/min) |
| Grinding Wheel Dressing Device | Single-point dressing device / (opt.) Diamond roller dressing device |
| Regulating Wheel Size | Ø355 x 405 x Ø203.2 mm (14.0 x 15.9 x 8.0 in) |
| Regulating Wheel Speed | 10-200 rpm (variable speed) |
| Regulating Wheel Tilt Angle | +5°~-1° |
| Regulating Wheel Swivel Angle | ±2° |
| Regulating Wheel Dresser Swivel Angle | ±5° |
| Regulating Wheel Dresser Offset | 0~20 mm |
| Grinding Wheel Motor | 40 HP x 4P (30 kW) |
| Regulating Wheel Motor | 5 kW (6.7 hp) servo motor |
| Coolant Pump Motor | 1 HP x 2P (0.75 kW) |
| Grinding Wheel Spindle Lubrication | Auto. lubricator |
| Regulating Wheel Spindle Lubrication | Auto. lubricator |
| Slide Lubrication | Auto lubricator (LUBE) |
| CNC Control | FANUC |
| Coolant Tank | 140 L (37.0 gal) |
| Wheel Spindle Lubrication Tank | 1.0 L (0.3 gal) |
| Slide Lubrication Tank | 4 L (1.1 gal) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 405 mm wide wheels for high-volume through-feed and long infeed parts
- 40 HP (30 kW) grinding wheel motor at 45 m/s (8,858 ft/min)
- Double support grinding wheel spindle
- Shown by Palmary with a gantry swinging type loading device
Limitations
- Flanges are one piece with the spindles, so wheel changes need lifting equipment
- Listed weight of 7,000 kg (15,432 lb) is the same as the narrower PCB-6030
- Regulating wheel tilt of +5° to -1°
- Spindle lubrication is listed differently from the PCB-6030; confirm the type
Best For
Frequently Asked Questions
01
405 mm. The grinding wheel is Ø610 x 405 mm on a 304.8 mm bore and the regulating wheel Ø355 x 405 mm on a 203.2 mm bore. The standard grinding range is Ø1 to Ø150 mm.
02
A 40 HP (30 kW) 4-pole motor on the grinding wheel and a 5 kW (6.7 hp) servo motor on the regulating wheel. The coolant motor is listed as 1 HP (0.75 kW).
03
An automatic loading and unloading system is an optional accessory. Palmary's video for the model is titled as showing a PCB-6040 with a gantry swinging type loading device, so that arrangement has been built.
04
The PCB-6050, with a Ø610 x 510 mm grinding wheel on a 50 HP (37 kW) motor, at 13,000 kg (28,660 lb). The PCB-6040 has a 405 mm wide wheel on 40 HP (30 kW) and weighs 7,000 kg (15,432 lb).
